Quick Details
-
Brand Name:
-
FB
-
Use:
-
Multiple applications
-
Warranty Time:
-
5 years
-
Product name:
-

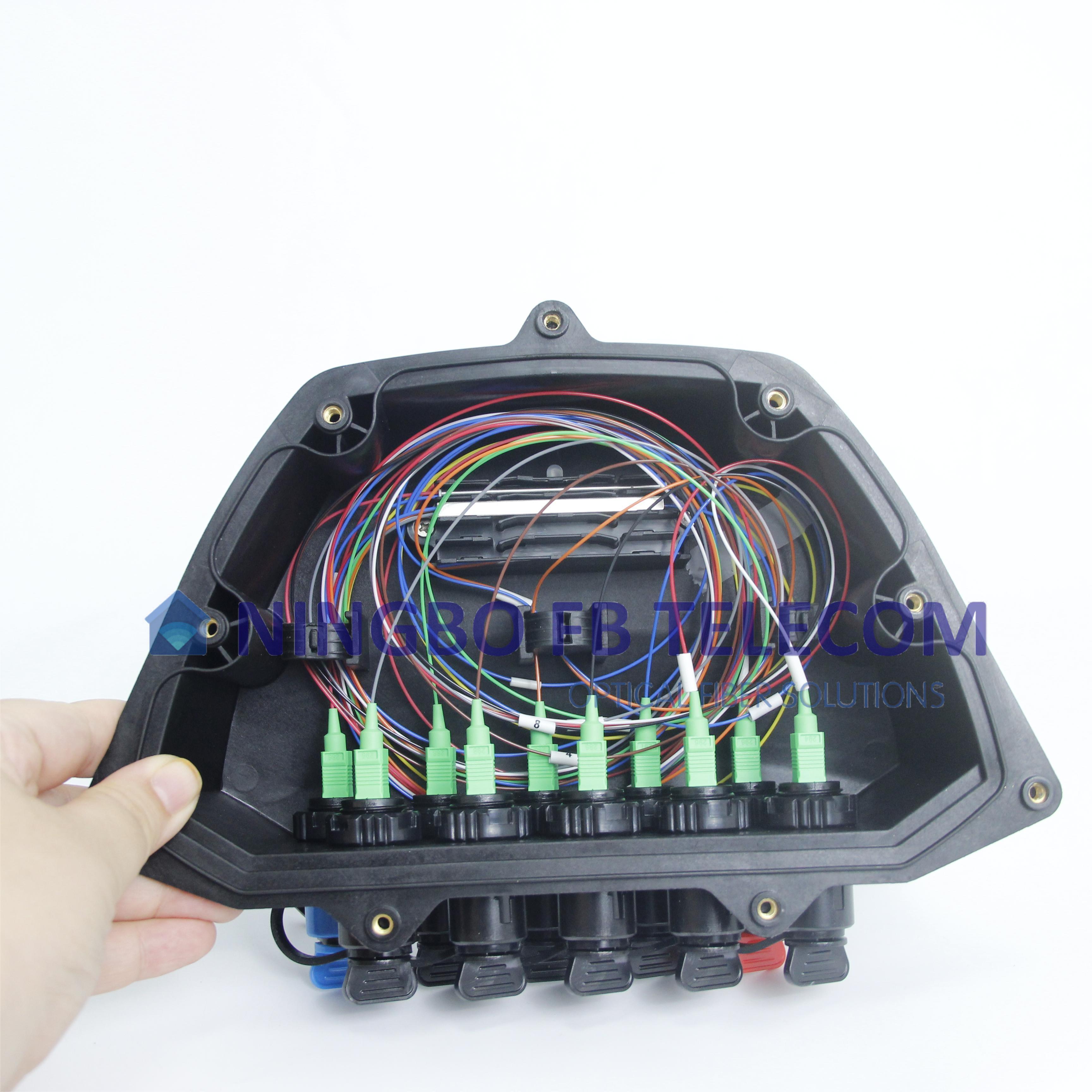

Fiber optic terminal box
-
Connector Type:
-
SC or LC pre-terminated adapter
-
Adapter no.:
-
Max. 12pcs
-
Application:
-
FTTX Systems
-
Color:
-
Black or customized
-
protection grade:
-
IP68
-
No. of fibers:
-
12 cores
-
Components:
-
1*9 splitter or hybrid splitter
-
Working temperature:
-
-20℃ ~ +60℃
-
Storage Temperature::
-
-40℃ ~ +70℃
Quick Details
-
Type:
-
Fiber optic terminal box
-
Model Number:
-
FAT-12B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FB
-
Use:
-
Multiple applications
-
Warranty Time:
-
5 years
-
Product name:
-
Fiber optic terminal box
-
Connector Type:
-
SC or LC pre-terminated adapter
-
Adapter no.:
-
Max. 12pcs
-
Application:
-
FTTX Systems
-
Color:
-
Black or customized
-
protection grade:
-
IP68
-
No. of fibers:
-
12 cores
-
Components:
-
1*9 splitter or hybrid splitter
-
Working temperature:
-
-20℃ ~ +60℃
-
Storage Temperature::
-
-40℃ ~ +70℃
Features:
Plug and play, without opening the box
Fusion free, no splicing and skilled workers
Smaller size by compact design and smaller connector, volume reduced by 50%
Lighter weight by smaller volume and innovative materials, weight reduced by 50%
Specification:
|
Max. Capacity
|
12 fibers
|
|
Reinforced adapters
|
Max. 12
Mini SC adapter or InstaLNK adapters (plug and play) |
|
Protection Grade
|
IP67, IK08
|
|
Installation Method
|
Wall mounting, pole mounting or in-wire mounting
|
|
Working Environment
|
Outdoor and indoor
|
|
Splitter
|
1x8 PLC spltiter
Or 1x9 hybrid splitter (PLC + FBT) Or 1x9 chip splitter |
|
Dimension
|
244(H)*185(W)*77(D)mm
|
|
Working Temperature
|
-30°C~+65°C
|
|
Storage Temperature
|
-30°C~+65°C
|
|
Relative Humidity
|
0%~95%
|
|
Air Pressure
|
70~106KPa
|
|
Operating wavelength
|
1260nm to 1650nm
|
|
Other
|
UV resistance (optional), Anticorrosion, RoHs
|
|
Printing
|
Optical radiation hazard sign (optional)
|
