Quick Details
-
Panel Size:
-
28 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
28 inch stretch bar lcd
-
Pixel Pitch:
-
other, 0.1215*0.3645 mm (H*V)
-
Size:
-
28 inch
-
Screen Type:
-
TFT LCD
-
Resolution:
-
1920*360
-
Contrast Ratio:
-
1200:1
-
Brightness:
-
700 cd/㎡
-
Viewing Angle:
-
89/89/89/89 U/D/L/R
-
Display Outline Size(mm):
-
732*165*16.8
-
Display Area(mm):
-
699.84(H)*131.22(V)
-
Fresh Rate:
-
60 Hz
-
Operating Temperature:
-
0℃~50℃
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
Wisecoco
-
Color:
-
Customise
-
Panel Size:
-
28 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
28 inch stretch bar lcd
-
Pixel Pitch:
-
other, 0.1215*0.3645 mm (H*V)
-
Size:
-
28 inch
-
Screen Type:
-
TFT LCD
-
Resolution:
-
1920*360
-
Contrast Ratio:
-
1200:1
-
Brightness:
-
700 cd/㎡
-
Viewing Angle:
-
89/89/89/89 U/D/L/R
-
Display Outline Size(mm):
-
732*165*16.8
-
Display Area(mm):
-
699.84(H)*131.22(V)
-
Fresh Rate:
-
60 Hz
-
Operating Temperature:
-
0℃~50℃
Product Description

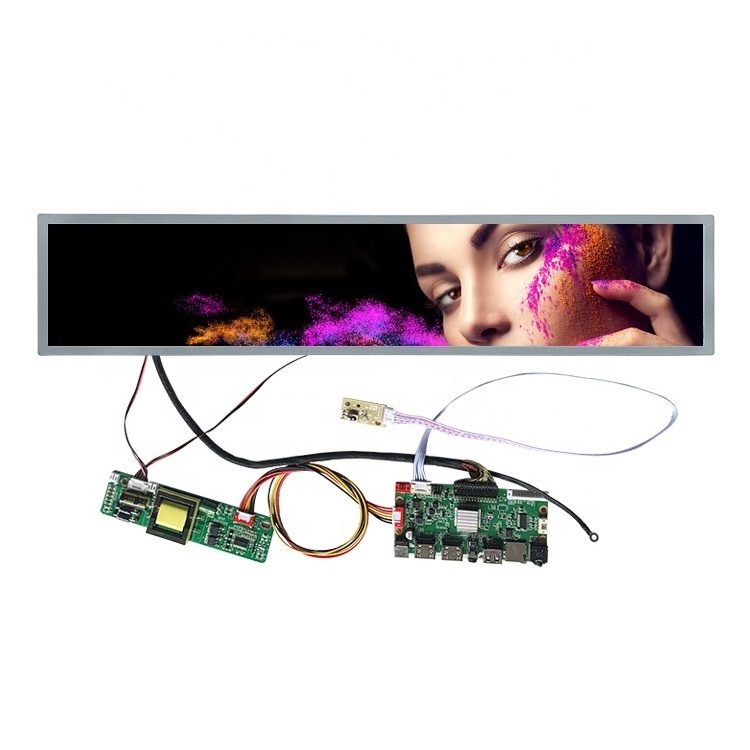

Outdoor Ultra Wide 28 Inch Stretched Bar Lcd Rectangle Screen Display Pubblicitario Lcd Bar Advertisement Screen On Shelf
|
Screen Size
|
19‘’
|
21‘’
|
24‘’
|
28‘’
|
29‘’
|
37‘’
|
43‘’
|
48‘’
|
|||||||
|
Display Outline Size
（mm) |
494*114
|
545*62
|
616*138
|
735*168
|
741*239
|
932*286
|
1114*231
|
1217*248
|
|||||||
|
Display Area
(W)×(H)(mm)
|
476
×89
|
529
×36
|
597
×112
|
699
×131
|
698
×196
|
904
×254
|
1074
×198
|
1194
×223
|
|||||||
|
Resolution
|
1920
*360
|
1920
*132
|
1920
*360 |
1920
*360 |
1920
*540 |
1920
*540 |
1920
*360 |
3840
*720 |
|||||||
|
Brightness
|
300nits
|
300nits
|
300nits
|
700nits
|
700nits
|
700nits
|
700nits
|
1000nits
|
|||||||
|
Contract Ratio
|
1200:1
|
1200:1
|
1200:1
|
1200:1
|
4500:1
|
4000:1
|
1400:1
|
1000:1
|
|||||||
|
Screen Type
|
TFT LCD
|
|
|
|
|
|
|
|
|||||||
|
View Angle
|
89/89/89/89 U/D/L/R
|
|
|
|
|
|
|
|
|||||||
|
Configuration
|
RGB Vertical Stripe
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
||
|
Response Time
|
8 (Typ.)(G to G) ms
|
Light Source
|
WLED , 50K hours
|
||
|
Support Color
|
16.7M 72% NTSC
|
Designed For
|
Automotive display, Advertising display. Digital signage.
|
||
|
Weight
|
2.4 Kgs
|
Display Mode
|
Landscape
|
||
|
Interface Type
|
51 pins LVDS (1 ch, 8-bit)
|
|
|
||
|
Voltage Supply
|
12.0V (Typ.)
|
|
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
|
|
||
