Quick Details
-
Max. Turned Length (mm):
-
914 mm
-
Year:
-
2019
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Model Number:
-
C06230A/30B
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
168x75x142cm
-
Weight (KG):
-
460 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Swing over gap:
-
430mm
-
Length of work piece:
-
914mm
-
Distance between centers:
-
530mm
-
Tailstock taper:
-
M.T.NO.3
-
Product type:
-
Bench Lathe Machine
-
Function:
-
Metal Turning
-
Keyword:
-
lathe machine
-
Width of bed:
-
178mm
-
Max. Swing Diameter (mm):
-
300 mm
-
Certification:
-
CE, ISO9001, BV
Quick Details
-
Max. Length of Workpiece (mm):
-
1000 mm
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
38 m'm
-
Max. Turned Length (mm):
-
914 mm
-
Year:
-
2019
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOSTON
-
Model Number:
-
C06230A/30B
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
168x75x142cm
-
Weight (KG):
-
460 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Swing over gap:
-
430mm
-
Length of work piece:
-
914mm
-
Distance between centers:
-
530mm
-
Tailstock taper:
-
M.T.NO.3
-
Product type:
-
Bench Lathe Machine
-
Function:
-
Metal Turning
-
Keyword:
-
lathe machine
-
Width of bed:
-
178mm
-
Max. Swing Diameter (mm):
-
300 mm
-
Certification:
-
CE, ISO9001, BV
Product Description for C06230A Chinese Manufacturer Lathe Machine Brake For Wholesales
♦ Precision ground and hardened bed ways
♦ The spindle is supported with precision roller bearings
♦ Head stock gears are made of high quality steel ground and hardened
♦ Easy operating speed change levers
♦ Removable gap is provided for larger diameter work
♦ Easy operating gear box has various feed sand thread cutting function
♦ With or without foot stand for optional
♦ Right angle appearance or circular appearance to optional
Techincal Parameter for C06230A Chinese Manufacturer Lathe Machine Brake For Wholesales
|
Specification |
C06230A |
C06230A (Variable-speed) |
C06230B |
|
Swing over bed |
300mm (12 " ) |
300mm (12 ") |
|
|
Swing over cross slide |
178mm(7 ’’ ) |
178mm(7 ’’ ) |
|
|
Swing in gap diameter |
430mm (17 ’’ ) |
430mm (17 " ) |
|
|
Length of work piece |
914mm (36 ’’) |
914mm (36 ” ) |
|
|
Length of turning |
760mm (30 ’’) |
760mm (30 ’’) |
|
|
Spindle bore |
38mm (1-1/2 ") |
38mm (1-1/2 ") |
|
|
Taper of spindle bore |
M.T. No.5 |
M.T. No.5 |
|
|
Range of spindle speed(9steps) |
60-1500r/min |
60-2000r/min |
60-2000r/min |
|
Quill Taper |
M.T.No.3 |
M.T.No.3 |
|
|
Range of metric threads to be cut(29kinds) |
0.4-7mm |
0.4-7mm |
|
|
Range of inch threads to be cut(40kinds) |
4-56T.P.I |
4-56T.P.I |
|
|
Pitches of three feed lead screws |
3mm (8T.P.L) |
3mm (8T.P.L) |
|
|
Longitudinal feed per revolution of spindle(4 0 kinds) |
0.052-1.392 (0.002-0.0548 ") |
0.052-1.392 (0.002-0.0548 ") |
|
|
Cross feed per revolution of spindle(40kinds) |
0.014-0.38 (0.0007-0.0187 ") |
0.014-0.38 v (0.0007-0.0187 ") |
|
|
Max. Longitudinal travel of saddle |
800mm (31-1/2 ") |
800mm (31-1/2 ") |
|
|
Max. travel of cross slide |
160mm (5-5/16") |
160mm (5-5/16 ") |
|
|
Max. travel of top slide |
85mm (3-1/4 ") |
85mm (3-1/4 ") |
|
|
Quill travel |
95mm (3-3/4 ") |
95mm (3-3/4 ") |
|
|
Main motor power |
1.1kW (1.5HP) |
1.1kW (1.5HP) |
|
|
Motor frequency |
60Hz or 50Hz |
60Hzor50Hz |
|
|
Overall dimensions(LxWxH) |
160x73x127cm |
160x73x127cm |
|
|
Net weight |
460kg |
460kg |
|
|
Packing dimensions(Lx Wx H) |
168x75x142cm |
168x75x142cm |
|

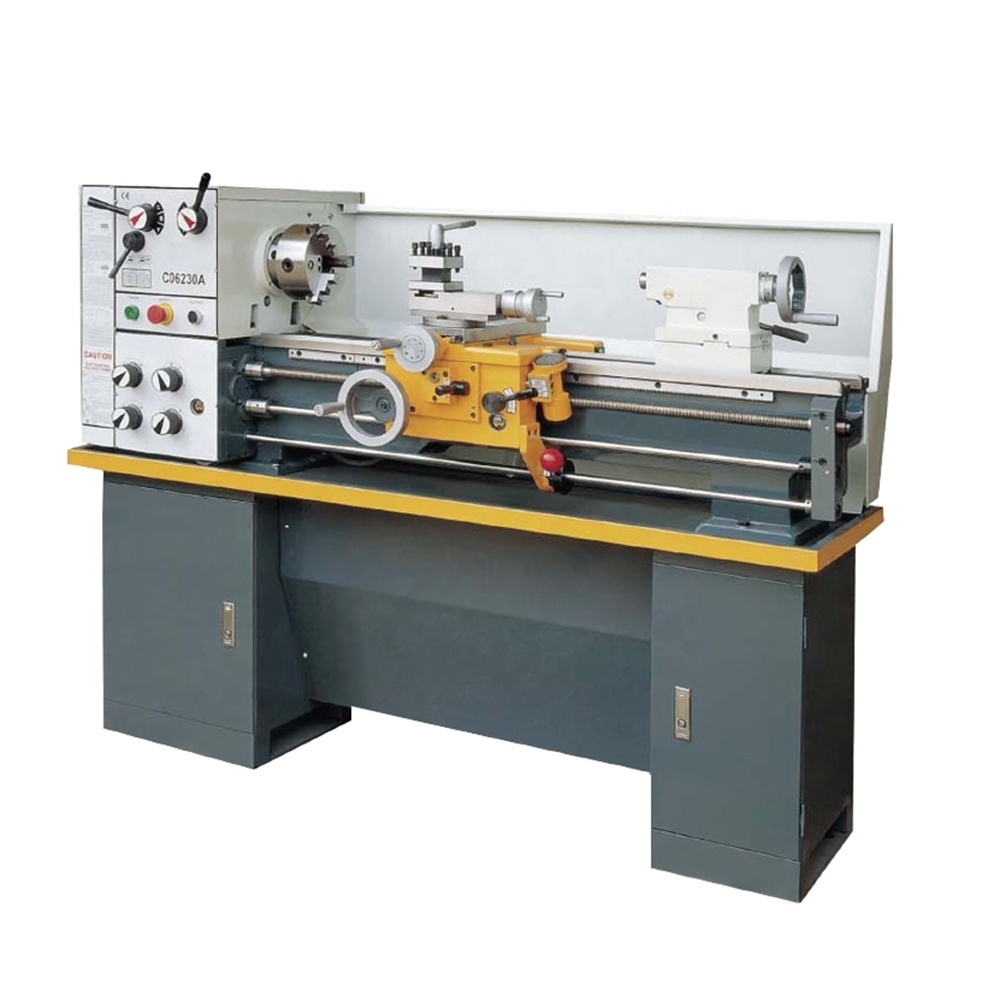

Product Pictures for C06230A Chinese Manufacturer Lathe Machine Brake For Wholesales
Packing and Delivery for
C06230A Chinese Manufacturer Lathe Machine Brake For Wholesales
