Quick Details
-
Brand Name:
-
LANGSHUO
-
Model Number:
-
ETA 1701
-
Name:
-
coating Thickness Gauge
-
Model:
-
ETA 1701
-
Measuring range:
-
0-1500 micron
Quick Details
-
Warranty:
-
1year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LANGSHUO
-
Model Number:
-
ETA 1701
-
Name:
-
coating Thickness Gauge
-
Model:
-
ETA 1701
-
Measuring range:
-
0-1500 micron

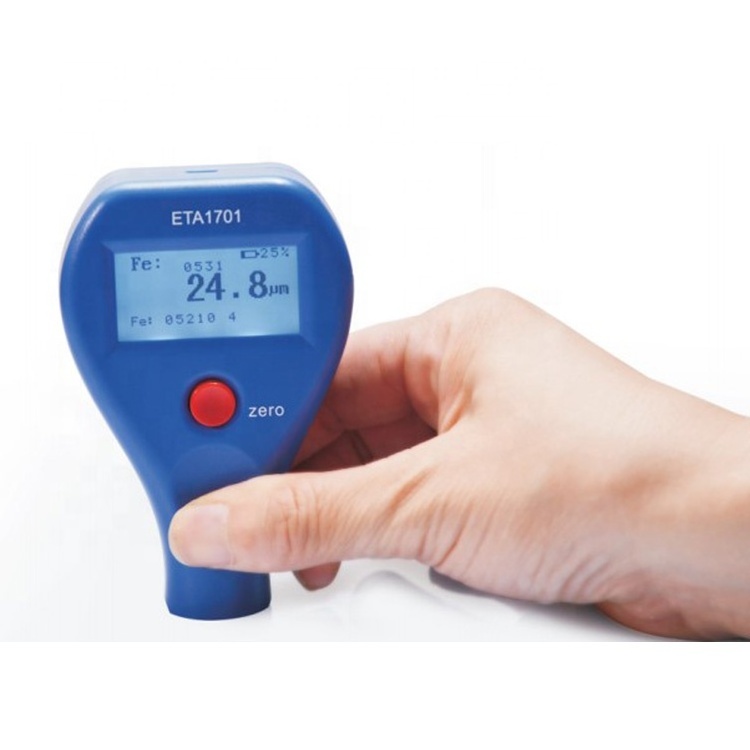

ETA 1701 coating thickness meter Paint Coating Thickness Gauge
Brief Introduction
The gauge is using Magnetic and Eddy thickness measurement.
It can measure the thickness of non-magnetic coating layers on magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate(steel, iron, alloy and magnetic stainless steel).
It can measure the thickness of non-metals coatings layers covered on non-magnetic metals substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on non- nagnetic metals substrate (aluminum, brass, zinc and nonmagnetic stainless steel).
The gauge have data storage, the USB interface, it can save 1173 measuring-records, each record contains the information of measuring-results and measuring-time, it's very useful for you to control the quality of your products.
ETA 1701 coating thickness meter Paint Coating Thickness Gauge
Measuring Materials
Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, painton the base of steel, iron, alloy and magnetic steel.
Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
ETA 1701 coating thickness meter Paint Coating Thickness Gauge
Technical Specification
|
Model No. |
ETA1701 |
|
|
Measuring principle |
Fe |
NFe |
|
Measuring range (pm) |
0-1500µm |
|
|
Accuracy |
±‹1-3% H+1›µm |
|
|
H refers to the thickness of testing piece |
||
|
Minimum resolution (pm) |
O.lpm |
|
|
Min curvature of the min area (mm) |
Convex:5mm, concave:25mm |
|
|
Diameter of the min area (mm) |
Φ7 |
|
|
Critical thickness of substrate |
0.5 |
|
|
(mm) |
||
|
Memory |
1173 |
|
|
Dimensions |
100x65x25mm |
|
|
Power supply |
AAA Alkaline battery |
|
|
Standard configuration |
Main Machine,4 calibration specimens (38pm > 126_m , 183pm , 249pm) |
|
