Quick Details
-
Place of Origin:
-
Zhejiang, China
-
material:
-
plastic
-
Certificate:
-
CE Rohs CQC Reach TUV CQC
-
pin type:
-
screw
-
Head shape:
-
flat
-
Function:
-
momentary/ latching
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
10A
-
Max. Voltage:
-
500VAC
-
Place of Origin:
-
Zhejiang, China
-
material:
-
plastic
-
Certificate:
-
CE Rohs CQC Reach TUV CQC
-
pin type:
-
screw
-
Head shape:
-
flat
-
Function:
-
momentary/ latching

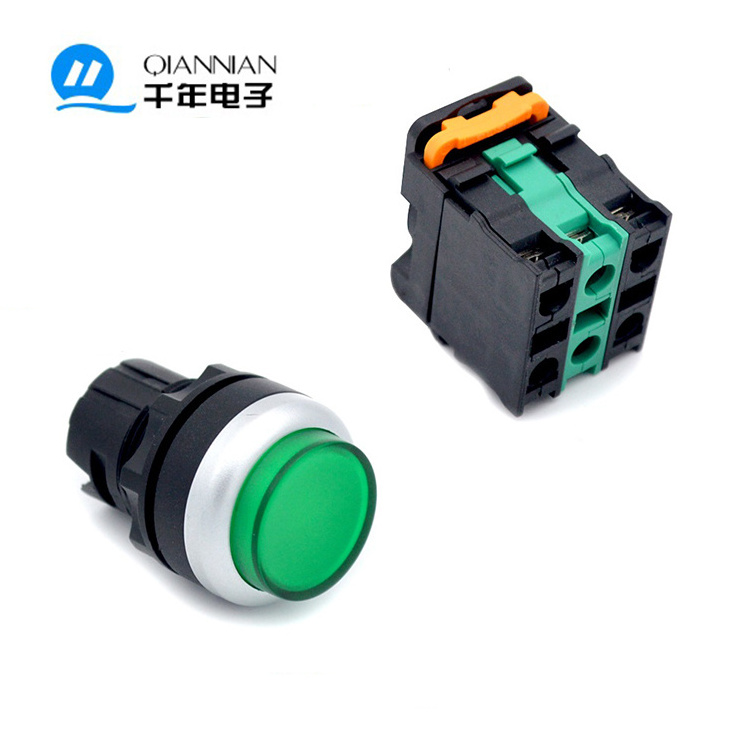

title: 22mm CE LA38 series green illuminated on off /onon push switch
They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.
| Product Model | LA38-A2 |
| mounting hole size | 22mm |
| Operation stroke | About 5mm |
| Voltage | 6V 12V 24V 36V 48V 110V 220V 380V |
| Ambient Temperature | -25 ℃~+70 ℃ |
| Air humidity | ≤98% |
| Switch Combination | 1NO/1NC/2NO/2NC/1NO1NC/2NO2NC/3NO3NC |
| Operation Type | Latching /Momentary |
| Dielectric Sterength | Over 100mΩ |
| Contact resistor | below 50 mΩ |
| Insulation Voltage | Ui=660V |
| Ith | Ith=10A |
| Insulation Voltage | Ui=660V |
| Electronic Life | Over 50000 times |
| Protect level | IP65 (button panel) |
| Led life | 40000 Hours |
| Rate Elec. Date | AC-15 Ue =380V Ie=3A; Ue=220V Ie=18A |
| Led Voltage | Dc=13 Ue=220V Ie=0.2A; Ue=110V Ie=0.5A |
| Led Color | R/Y/G/B/W/O |
|
|
|
|
1.Appearance material Brass Nickel Plated Stainless Steel Plating Color |
|
2.Electric material Copper plating and silver contact, better conductivity. |
|
3.Installation accessories Waterproof ring protection Hexagonal nut fixed IP Waterproof |
|
4.Connection mode Welding terminal Wiring connector |
|
5.Waterproof properties Waterproof test, Excellent waterproof |
Yueqing Qian Nian Electronic Co.,Ltd was founded in 2001,a technology company which is
specialized in designing and manufacturing varies types of push button switch,our company is committed
to well-known brands of companies both at home and abroad to provide first-class products and enterprises
supporting services .Company currently employs more than 160 people ,including R&D personnel and mold
production staff more than 30 people.Leading products are : Metal waterproof push button switch , metal
waterproof pilot lamp ,anti-blast switch ,and accessories. Our product are widely used in various types of
console, control box(cabinet),distribution box (cabinet), instrumentation box(cabinet),electrical apparatus,
and other industrial automation device etc.
| 1. Car modification | 2. Battery car modification | 3. Computer modified |
| 4. Car modification | 5. Battery car modification | 6. Computer modified |
1.Free sample
2.DHL,UPS,TNT,Fedex,Aramex and forwarder are accept
3.Produce and purchase all connector to satify your request
4.Accept T/T in advance, Paypal, Western Union and Escrow
5.M ost product not have MOQ,orders for just one piece are welcome
6. Actual drawing,picture and part No. will assist to get a competitive price soon
7. The stock goods will be delivered within 3days,and the customized goods will be delivered within 7days
