Quick Details
-
Main Circuit Rating Voltage:
-
220-690V
-
Main Circuit Rating Current:
-
9A-95A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FATO
-
Model Number:
-
CE1-D
-
Contact Material:
-
Silver or Copper
-
Guarantee:
-
2 Years
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
220-690V
-
Main Circuit Rating Current:
-
9A-95A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FATO
-
Model Number:
-
CE1-D
-
Contact Material:
-
Silver or Copper
-
Guarantee:
-
2 Years

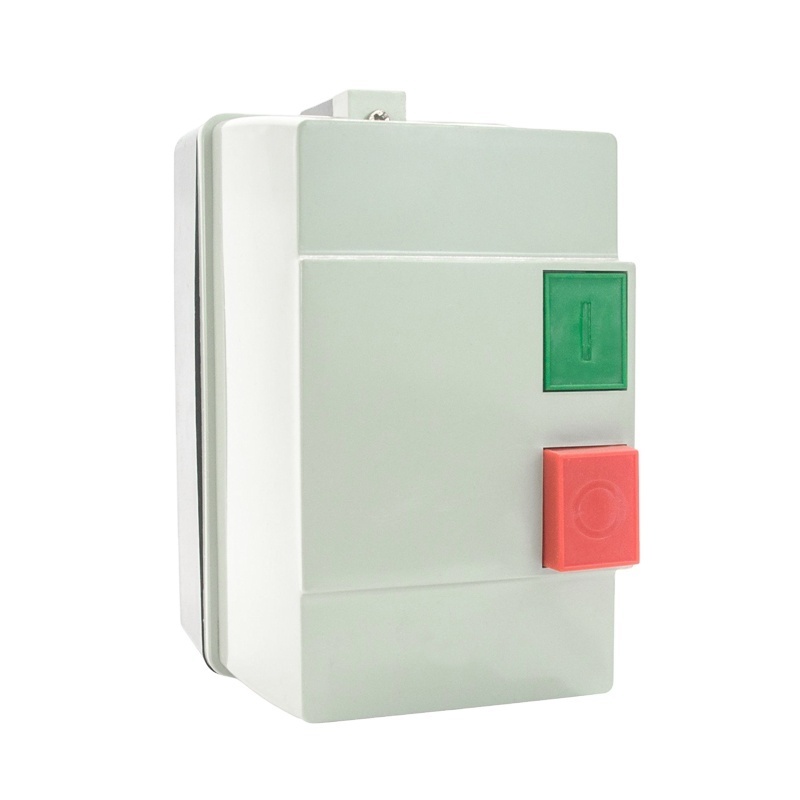

CE1 -D Magnetic Starter is mainly applied to circuit of AC 50 /60Hz,voltage up to 550V for distance making and breaking circuit and frequent start and control motor, it has the features of long small volume, light weight, low power consumption, high efficiency, safe and reliable performance etc.
| Max. Power AC3 Duty(KW) |
Rated
Current (A) |
Type of
Enclosure |
Type |
Suitable
Thermal Relay(A) |
||||||
|
220V
230V |
380V
400V |
415V | 440V | 500V |
660V
690V |
LL
(Long Life) |
NL
(Normal Life) |
|||
| 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 |
IP42
IP65 |
CE1-D094
CE1-D093 |
CFR2 D1312
CFR2 D1314 |
|
| 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 |
CE1-D124
CE1-D123 |
CE1-D094
CE1-D093 |
CFR2 D1316 | |
| 4 | 7.5 | 9 | 9 | 10 | 10 | 18 |
CE1-D188
CE1-D185 |
CE1-D124
CE1-D123 |
CFR2 D1321 | |
| 5.5 | 11 | 11 | 11 | 5 | 15 | 25 |
CE1-D258
CE1-D255 |
CE1-D188
CE1-D185 |
CFR2 D1322
CFR2 D2353 |
|
| 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32 | IP55 | CE1-D325 | CE1-D255 | CFR2 D2355 |
| 11 | 18.5 | 22 | 22 | 22 | 30 | 40 | CE1-D405 | CE1-D325 |
CFR2 D3353
CFR2 D3355 |
|
| 15 | 22 | 25 | 30 | 30 | 33 | 50 | CE1-D505 | CE1-D405 |
CFR2 D3357
CFR2 D3359 |
|
| 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | CE1-D655 | CE1-D505 | CFR2 D3661 | |
| 22 | 37 | 45 | 45 | 55 | 45 | 80 | CE1-D805 | CE1-D655 |
CFR2 D3365
CFR2 D3363 |
|
| 25 | 45 | 45 | 45 | 55 | 45 | 95 | CE1-D955 | CE1-D805 | CFR2 D3365 | |
