Quick Details
-
Type:
-
Blowdown Valve
-
Brand Name:
-
JS
-
Standard or Nonstandard:
-
Standard
-
Name:
-
ISO9001 Z48P-16 cast steel Flanged Drain Valve
-
Material:
-
Casting steel
-
PN:
-
1.6-4.0Mpa
-
Medium:
-
Water, steam
-
Temprature:
-
<250℃
-
DN:
-
50
-
Certificate:
-
ISO9001
-
Standard:
-
ANSI BS DIN JIS
Quick Details
-
Port Size:
-
DN50
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Z44H-16
-
Type:
-
Blowdown Valve
-
Brand Name:
-
JS
-
Standard or Nonstandard:
-
Standard
-
Name:
-
ISO9001 Z48P-16 cast steel Flanged Drain Valve
-
Material:
-
Casting steel
-
PN:
-
1.6-4.0Mpa
-
Medium:
-
Water, steam
-
Temprature:
-
<250℃
-
DN:
-
50
-
Certificate:
-
ISO9001
-
Standard:
-
ANSI BS DIN JIS
ISO9001 Z44H-16 blowdown sewage cast steel flanged drain valve
Rapid sewage valve: rapid discharge valve is evolved from the gate valve, the use of gears to 90 ° C stem lift to achieve the purpose of opening and closing. sewage valve is not only simple structure, good sealing, and the installation of small size, less material consumption, light weight, small size, especially the driving torque is small, easy to operate, easy to achieve fast opening and closing.

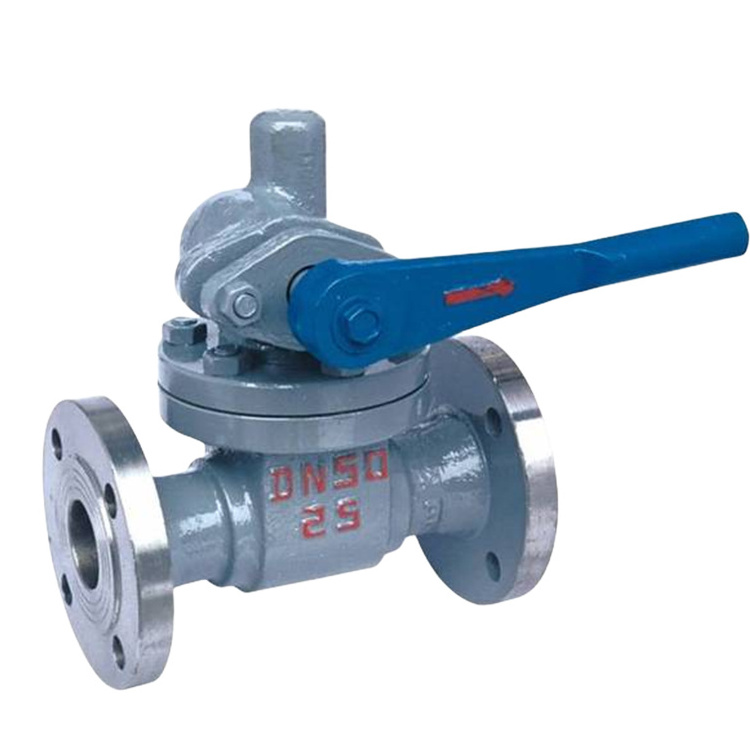

Pictures of sewage valve
|
PN(MPa) |
DN(mm) |
- |
Weight(kg) |
||||||||
|
L |
D |
D1 |
D2 |
D6 |
b |
ZΦd |
H |
LO |
- | ||
|
1.6 |
25 |
160 |
115 |
85 |
65 |
- |
14 |
4-Φ14 |
160 |
180 |
10 |
|
32 |
200 |
135 |
100 |
78 |
- |
16 |
4-Φ18 |
180 |
200 |
11 |
|
|
40 |
230 |
145 |
110 |
85 |
- |
16 |
4-Φ18 |
220 |
220 |
16 |
|
|
2.5 |
25 |
160 |
115 |
85 |
65 |
- |
16 |
4-Φ14 |
160 |
180 |
10 |
|
32 |
200 |
135 |
100 |
78 |
- |
18 |
4-Φ18 |
180 |
200 |
11 |
|
|
40 |
200 |
145 |
110 |
85 |
- |
18 |
4-Φ18 |
220 |
220 |
16 |
|
|
4.0 |
25 |
160 |
115 |
85 |
65 |
58 |
16 |
4-Φ14 |
160 |
180 |
10 |
|
32 |
180 |
135 |
100 |
78 |
66 |
18 |
4-Φ18 |
180 |
200 |
11 |
|
|
40 |
230 |
145 |
110 |
85 |
76 |
18 |
4-Φ18 |
220 |
220 |
16 |
|
| Packaging | 1pc/poly bag, pcs in carton or plywood case for small items. |
| Shipping | By sea |
