Quick Details
-
Brand Name:
-
REMOND
-
Model Number:
-
RMD-F2
-
Operating Temperature:
-
-20 to 80℃
-
Product name:
-
Flow switch
-
Measure range:
-
Water:3~300cm/s ; Air:200~300cm/s
-
Power:
-
24VDC,220VAC
-
Accuracy:
-
±1~±10cm/s
-
Response time:
-
2(2-10)s
-
Pressure:
-
100Bar
-
electrical connection:
-
1m cable length
-
Thread:
-
G1/2,G1/4,M18*1.5
-
Material:
-
Stainless Steel
-
Output signal:
-
PNP / NPN / Relay / 4-20mA
-
Certification:
-
CE
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
Water:3~300cm/s
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
REMOND
-
Model Number:
-
RMD-F2
-
Operating Temperature:
-
-20 to 80℃
-
Product name:
-
Flow switch
-
Measure range:
-
Water:3~300cm/s ; Air:200~300cm/s
-
Power:
-
24VDC,220VAC
-
Accuracy:
-
±1~±10cm/s
-
Response time:
-
2(2-10)s
-
Pressure:
-
100Bar
-
electrical connection:
-
1m cable length
-
Thread:
-
G1/2,G1/4,M18*1.5
-
Material:
-
Stainless Steel
-
Output signal:
-
PNP / NPN / Relay / 4-20mA
-
Certification:
-
CE

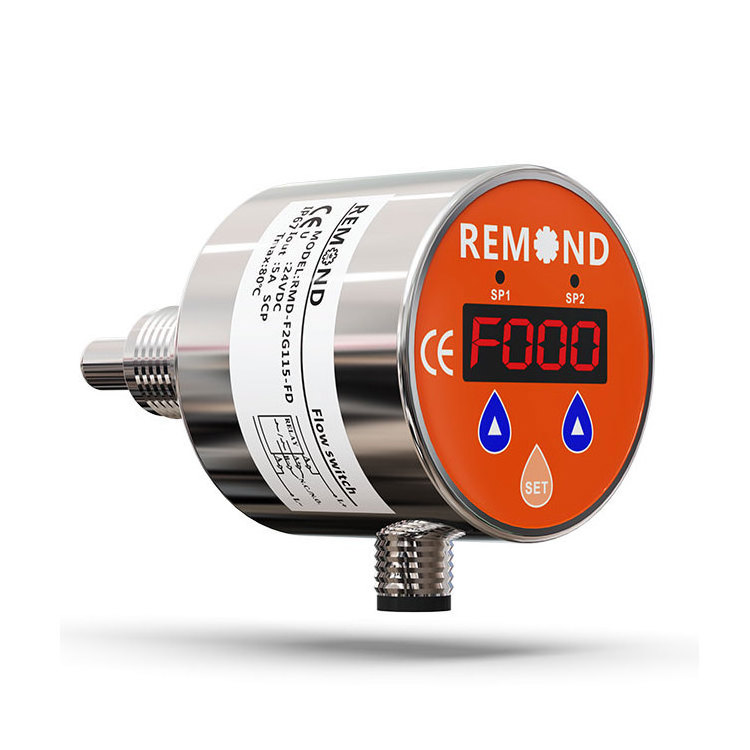

Water Pump Flow Switch 4-20mA Output Thermal Flow Sensor Digital Air Flow Switch
Product brief introduction
Thermal flow switch is based on the principle of heat exchange design, probe the built-in heating module as well as the thermal module, heat dissipation of heating module and the flow velocity is closely related to the body. If there is no medium flow in the pipe ,thermal circuit receives a fixed value, when the fluid flows through the probe, thermal circuit receives the signal changes over medium velocity, thermal circuit will convert the temperature difference signals of heating module and thermal module into electrical signals, the processor will convert it into PNP/ NPN/ 4~20mA relay signal output, etc.
Feature
LED indicate the velocity
No movable parts, free maintenance
Various length of sensors can be chose
Easy installation
One type for various pipe diameter
Continuously adjustable switch value
Almost no pressure loss
Overall protection grade IP67
Flow switch technical parameter
| Measure range | Water:3~300cm/s ; Air:200~300cm/s ; Oil:3~300cm/s |
| Accuracy | ±1~±10cm/s |
| Settling time | 3 minutes |
| Pressure | 100Bar |
| Media temperature | -20 to 80℃ |
| Thread | G1/2 ,G1/4 ,G1,M18*1.5 |
| Output signal | PNP / NPN / Relay /4-20mA |
| Power | 24VDC , 110VAC , 220VAC |
| Sensor length | 15mm , 20mm , 30mm , 40mm , 60mm |
| Consumption current | <80mA |
| Setting | Button |
| Response time | 2(2-10)s |
| Max.temperature gradient of medium | 300K/min |
| Protect | Reverse / Short / Overload |
| Protection grade | Ip67 |
| Power connector | M12 with 1m cable |
| Material | Sensor : ANSI316L Body :ANSI316L |
| Load |
Current : 250mA Relay : 30VDC/5A ,110VAC/5A, 220VAC/5A |
