Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Feininger
-
Model Number:
-
X250
-
Type:
-
XPS Boards
-
R value:
-
>1.8
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Feininger
-
Model Number:
-
X250
-
Type:
-
XPS Boards
-
R value:
-
>1.8
XPS Insulation Board Production Process
Polystyrene granule, talcum powder, masterbatch, blowing agent are mixed and melted in Extruder. The melt material will be extruded out of slot die, then through calibrator, we reach a panel shape. After cooling, cutting, edge trimming, we will pack in water-proof plastic bag. This is the XPS Foam Board in market.
1.Thickness:10-120mm
2.Width:600-1200mm
3.Density:30-48Kg/m3
XPS foam board is an extruded polystyrene insulation manufactured through a plastic extrusion process.
Technical data sheet of the XPS foam board
|
Density |
Kg/m3 |
31~40 |
|
Thermal Conductivity, 90 days, 10°C |
W/mK |
0.027~0.03 |
|
Compressive Strength at 10% Deflection or Yield (vertical) |
kPa |
≥300 |
|
Tensile Strength |
kPa |
≥300 |
|
Water Absorption |
Vol-% |
<=1.00% |
|
Capillarity |
nil |
nil |
|
Coefficient of Linear Thermal Expansion |
mm/mK |
0.07 |
|
Temperature Limits |
°C |
-50°C, +75°C |
Main characteristics of XPS foam board
♦ Stable performance and anti-aging
The extruded polystyrene (XPS) insulation boards can be used 35-50 years.
♦ Resistance to compression
Compared with other thermal insulation material(200Kpa for EPS), it has better compressive strength(around 300Kpa), which make it the ideal solution for heavy domestic or industrial loads
♦ Water resistance
Polyfoam is almost 100% closed cell and as such is unaffected by moisture
♦ Lightweight
Volume optimization and easy to handle
♦ Versatile:
The closed cell structure and density of Polyfoam allow specific edge details and surface finishes to be cut into the boards to make them as fit for the job as possible. Moreover, Polyfoam can be cut into almost any shape.
♦ Resistance to deformation
♦ Resistance to impact
♦
100% ozone friendly
♦ Recyclable: Polyfoam can be 100% recyclied

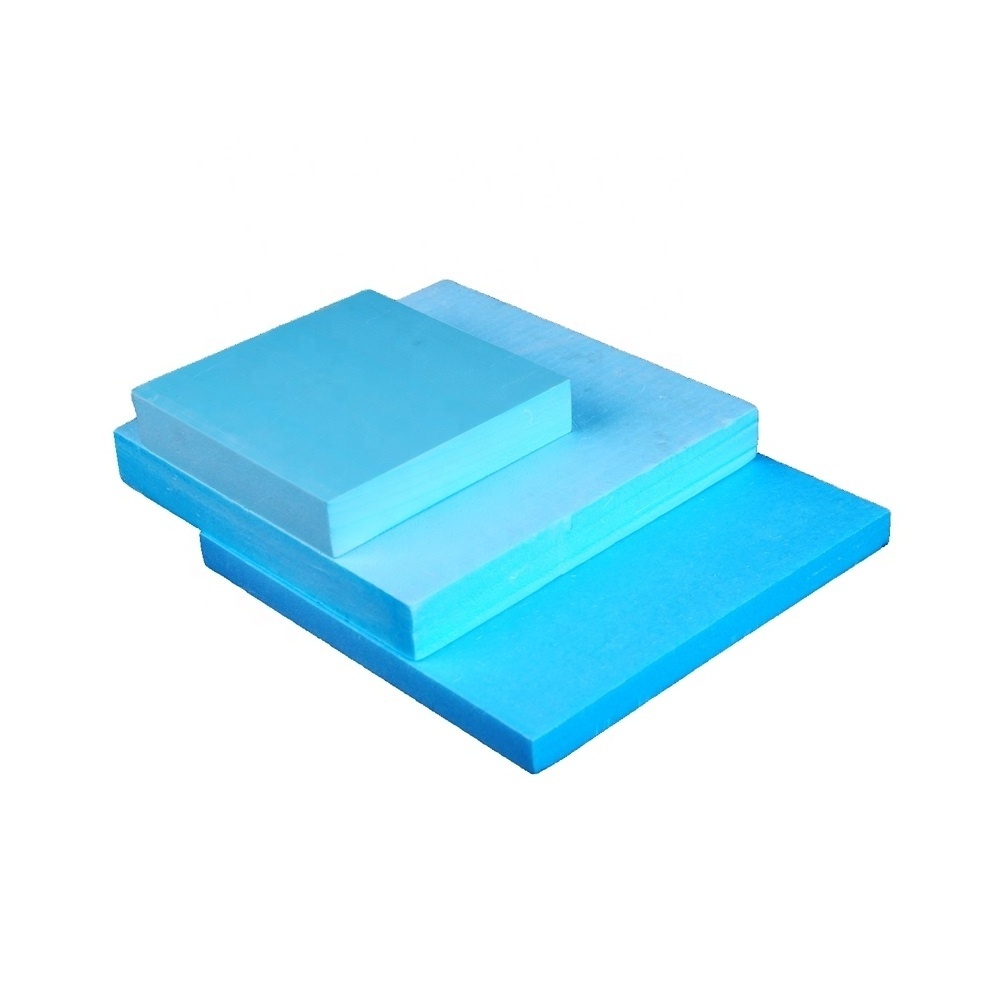

Extruded Polystyrene Insulation Board
Plastic Bag Packing
68.4M3/40HQ
Container Loading
♠ Manufacture brand-new 50mm Extruded Polystyrene Insulation Board
♠ Carry out on-line quality supervision and test the insulation material before shipping
♠ Pack XPS Foam in plastic bag
♠ Issue Test Report
♠ Ship the material by full container load
♠ Make arrangement of transportation
♠ Instruct how the XPS Sandwich Panel is applied.
