Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hongxin
-
Dimension(L*W*H):
-
900*800*880mm
-
Weight (KG):
-
150 KG
-
Diameter of roller:
-
150mm
-
length of roller:
-
300mm
-
Speed rate of roller:
-
1:3:9
-
power consumption:
-
4kw
-
G.W:
-
150kg
-
Automatic Grade:
-
Automatic
-
Logistics model:
-
By sea
-
Packing:
-
Export wooden box
-
Advantage:
-
High Effiency
Quick Details
-
Output (kg/h):
-
2400 - 3000 kg/h
-
Power (kW):
-
4
-
Material:
-
Carbon steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hongxin
-
Dimension(L*W*H):
-
900*800*880mm
-
Weight (KG):
-
150 KG
-
Diameter of roller:
-
150mm
-
length of roller:
-
300mm
-
Speed rate of roller:
-
1:3:9
-
power consumption:
-
4kw
-
G.W:
-
150kg
-
Automatic Grade:
-
Automatic
-
Logistics model:
-
By sea
-
Packing:
-
Export wooden box
-
Advantage:
-
High Effiency

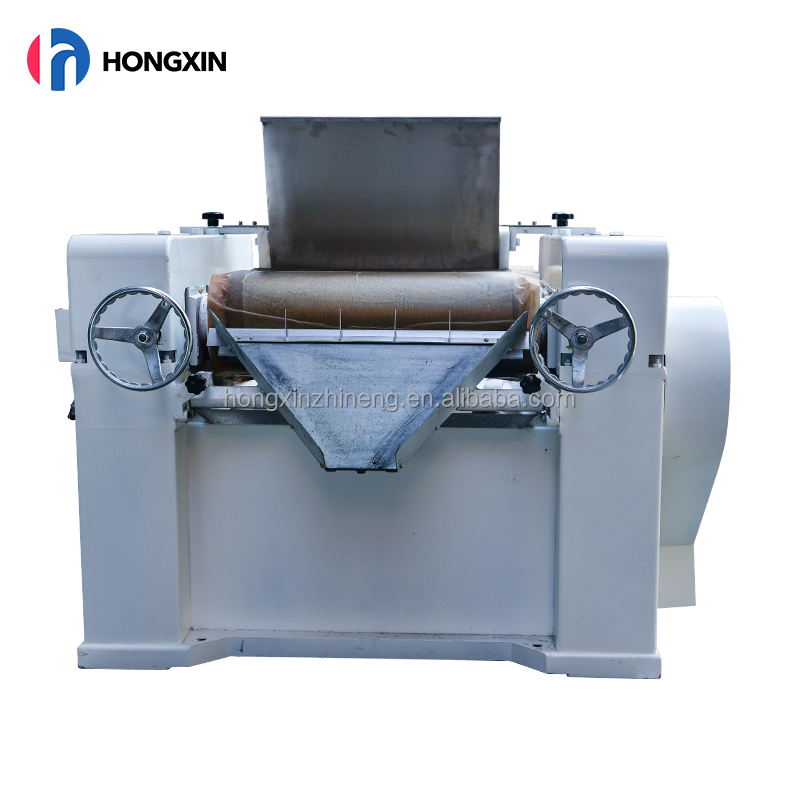

Factory mini soap milling machine triple layer roof roll forming machine
|
Diameter of roller
|
150mm
|
|
length of roller
|
300mm
|
|
Speed rate of roller
|
1：3：9
|
|
Power consumption
|
4KW
|
|
G.W
|
150kg
|
|
Size
|
900*800*880mm
|
|
Material
|
Frame –cast iron
Roller－high Chrome alloy, hard wearing
|
Models of three rolls mill :
SM405、SM315，SM120、SM150、SM250
SM405 and SM315 are suitable for batch production, but SM120, SM150 and SM250 are suitable for small batch or laboratory use.
Adjust the roller to a proper position, start the machine, and then add the slurry to be ground between the middle roller and the slow roller. After the slurry is extruded by the surfaces of the middle roller and the slow roller, it is brought to the fast
roller by the middle roller, scraped by the discharge scraper close to the surface, and flows into the slurry bucket through the cutter plate equipped with the scraper.
roller by the middle roller, scraped by the discharge scraper close to the surface, and flows into the slurry bucket through the cutter plate equipped with the scraper.
|
Model
|
SM120
|
SM150
|
SM250
|
SM315
|
SM405
|
|
Diameter of roller
|
φ120
|
φ150
|
φ205
|
φ315
|
φ405
|
|
length of roller
|
280
|
320
|
600
|
760
|
810
|
|
Speed rate of roller
|
≈1:3:9
|
≈1:2:4.98
|
≈1:2:5.25
|
≈1:2.87:8.1
|
≈1:3:9
|
|
Power/kw
|
1.5
|
2.5
|
7.5
|
11
|
15
|
|
Revolution r/min
|
1400
|
940
|
720
|
730
|
730
|
|
Size
|
950*700*750
|
896*800*930
|
1065*1010*1030
|
1950*1880*1350
|
2260*1880*1500
|
|
G.W
|
350
|
613
|
2000
|
3170
|
5300
|
Product Display
Bar Soap Making Machine Finishing Line
Soap finishing line processing :
Mixing > Grinding > Extruding >Cutting > Packing
