Quick Details
-
Input:
-
8/12/16/24 HD inputs version 1.3a
-
Multiplexing:
-
8/12/16/24 encoding channel
-
Language:
-
English control interface
-
Dimensions:
-
482mmx455mmx44.5mm
-
Temperature range:
-
0~45 (Operating), -20~80 (Storage)
-
MOQ:
-
1 pcs
-
Delivery time:
-
5 days
Quick Details
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China (Mainland)
-
Brand Name:
-
SOFTEL.OEM, SOFTEL.OEM
-
Model Number:
-
SFT3228S, SFT3228S
-
Input:
-
8/12/16/24 HD inputs version 1.3a
-
Multiplexing:
-
8/12/16/24 encoding channel
-
Language:
-
English control interface
-
Dimensions:
-
482mmx455mmx44.5mm
-
Temperature range:
-
0~45 (Operating), -20~80 (Storage)
-
MOQ:
-
1 pcs
-
Delivery time:
-
5 days
Details Images

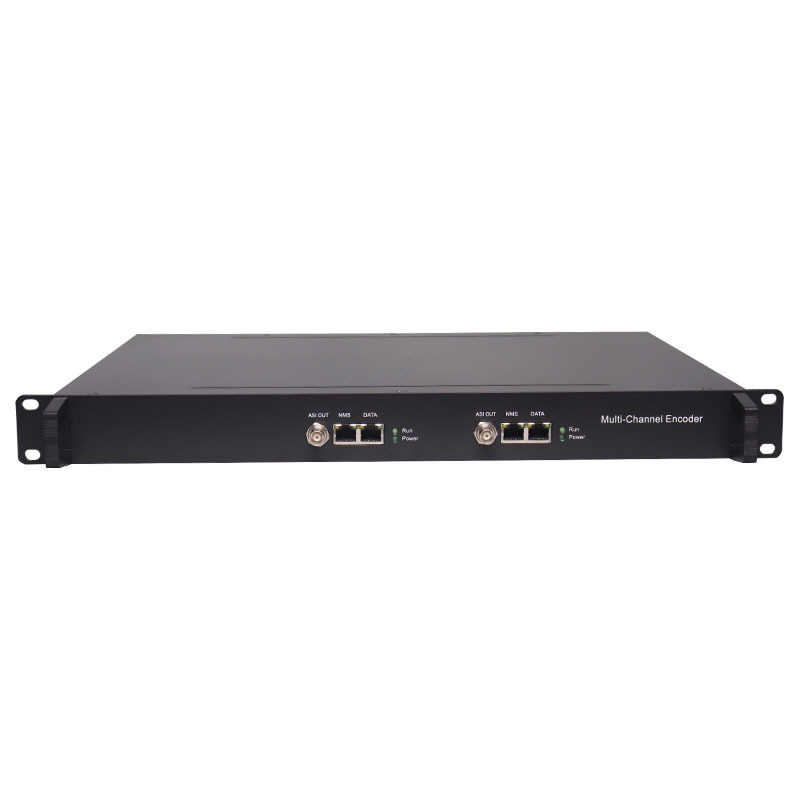

Multi-channel Full HD Encoder IPTV Server Encoder Supporting 1MPTS and 8SPTS Output
Products Description
I. Product Overview
SFT3228S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HD inputs for option. Every 8 HD ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
II. Key Features
* 8 HD inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24HD inputs
* MPEG4 AVC/H.264 video encoding format
* MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through,and
audio gain adjustment
* IP output over UDP and RTP/RTSPprotocol; 1 ASI out as mirror of MPTS (Optional)
* Support QR code, LOGO, caption insertion (Language Supported: 中文, English, ية بέ ع ل , ѳ ъ ѕ , , руская, ϭ Ω έ for more languages please consult us…)
* Support “Null PKT Filter” function
* Control via web management, and easy updates via web
* MPEG4 AVC/H.264 video encoding format
* MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through,and
audio gain adjustment
* IP output over UDP and RTP/RTSPprotocol; 1 ASI out as mirror of MPTS (Optional)
* Support QR code, LOGO, caption insertion (Language Supported: 中文, English, ية بέ ع ل , ѳ ъ ѕ , , руская, ϭ Ω έ for more languages please consult us…)
* Support “Null PKT Filter” function
* Control via web management, and easy updates via web
Product Paramenters
|
Input
|
8/16/24 HD inputs
|
|
|
|
|||
|
Video |
Resolution |
input |
|
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i |
|||
|
|
|
Output |
|
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P |
|||
|
|
Encoding
|
|
|
MPEG-4 AVC/H.264
|
|||
|
|
Bit-rate
|
|
|
1~13Mbps each channel
|
|||
|
|
Rate Control
|
|
|
CBR/VBR
|
|||
|
|
GOP Structure
|
|
|
IP…P (P Frame adjustment, without B Frame )
|
|||
|
Audio |
Encoding
|
|
|
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass
through |
|||
|
|
Sampling rate
|
|
|
48KHz
|
|||
|
|
Resolution
|
|
|
24-bit
|
|||
|
|
Audio Gain
|
|
|
0-255 Adjustable
|
|||
|
|
MPEG-1 Layer 2 Bit-rate
|
|
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
|||
|
|
LC-AAC Bit-rate
|
|
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
|||
|
|
HE-AAC Bit-rate
|
|
|
48/56/64/80/96/112/128 kbps
|
|||
|
Stream output
|
IP output through DATA (GE) over UDP and RTP/RTSP protocol
(8 HD inputs with 8 SPTS and 1MPTS output for each encoder board) 1 ASI out as mirror of MPTS (Optional as order) |
|
|
|
|||
|
System function
|
Network management(WEB)
|
|
|
|
|||
|
|
Chinese and English language
|
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
Miscellaneous |
Dimension (W×L×H)
|
|
482mm×328mm×44mm
|
|
|||
|
|
Environment
|
|
0~45℃(work)；-20~80℃（Storage）
|
|
|||
|
|
Power requirements
|
|
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
|
|
|||
Order Information
|
|
SFT3228S-8
|
SFT3228S-16
|
SFT3228S-24
|
|
8 HD Inputs with 8 SPTS and 1 MPTS out (1 encoder board+1NMS port+1DATA Port)
|
●
|
|
|
|
16 HD Inputs with 16 SPTS or 2 MPTS out (2 encoder boards+2 NMS ports+2DATA Ports)
|
|
●
|
|
|
24 HD Inputs with 24 SPTS or 3 MPTS out(3 encoder boards+3 NMS ports+ 3DATA Ports)
|
|
|
●
|
