- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SDR-2000-PLUS
-
Input Voltage:
-
AC80//100/140-270V
-
Output voltage:
-
220V±8%
-
Low voltage output:
-
Options
-
Over voltage output:
-
252V
-
Efficiency:
-
>98%
-
Ambient temperature:
-
-10~+45℃
-
Frequency:
-
50-60Hz
-
Color:
-
Black White
-
Delay Time:
-
3S/180S
-
Product Name:
-

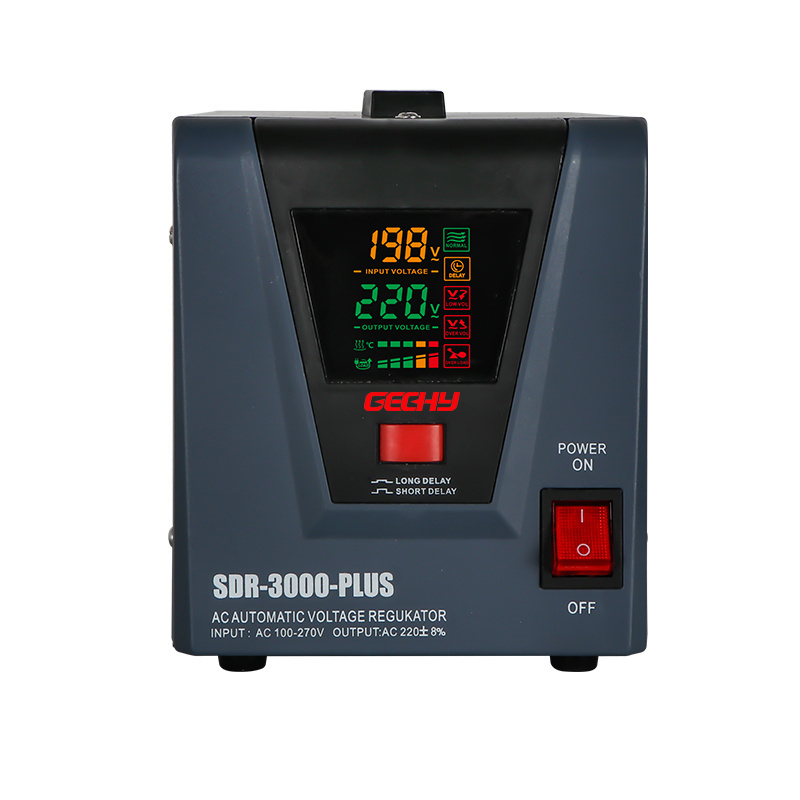

LED rely type full automatic AC voltage regulator
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SDR-2000-PLUS
-
Input Voltage:
-
AC80//100/140-270V
-
Output voltage:
-
220V±8%
-
Low voltage output:
-
Options
-
Over voltage output:
-
252V
-
Efficiency:
-
>98%
-
Ambient temperature:
-
-10~+45℃
-
Frequency:
-
50-60Hz
-
Color:
-
Black White
-
Delay Time:
-
3S/180S
-
Product Name:
-
LED rely type full automatic AC voltage regulator
Product details
Product Paramenters
|
Technology
|
Zero Cross Switching Technology & Digital CPU Control & Delay Countdown System
|
|
|
|
||||
|
Transformer
|
Toroidal Transformer
|
|
|
|
||||
|
Input voltage
|
(80-270V,100-270V,140-260V) / (45-280V,60-280V,90-280V)
|
|
|
|
||||
|
Output voltage
|
220V±8%, 220V±10%
|
|
|
|
||||
|
Frequency
|
50-60Hz
|
|
|
|
||||
|
Phase
|
Single-Phase
|
|
|
|
||||
|
Display
|
PRO:Dual LED Digital Display PLUS:Full information graphic led display
|
|
|
|
||||
|
Protection
|
Over voltage output
|
|
252V
|
|
||||
|
|
Low voltage output
|
|
Options
|
|
||||
|
|
Over Temperature
|
|
110℃
|
|
||||
|
|
Short Circuit
|
|
Auto Shutdown
|
|
||||
|
|
Overload
|
|
Auto Shutdown
|
|
||||
|
|
Delay
|
|
3S/180S
|
|
||||
|
Cooling System
|
Fan (Automatic Start up at 60°C)
|
|
|
|
||||
|
Connection Type-IN
|
0.5~3KVA(Power cord with plug), 5~20KVA(Input terminal block)
|
|
|
|
||||
|
Connection Type-OUT
|
0.5-3KVA(Output socket), 5~20KVA(Output terminal block)
|
|
|
|
||||
|
Adjust time
|
<1sec.(against 10% input voltage deviation)
|
|
|
|
||||
|
Ambient temperature
|
-10~+45℃
|
|
|
|
||||
|
Relative humidity
|
<90%
|
|
|
|
||||
|
Wave form distortion
|
No additional wave form distortion
|
|
|
|
||||
|
Efficiency
|
＞98%
|
|
|
|
||||
|
PACKING INFORMATION
|
|
|
|
|
||||
|
Model
|
Power Output
|
Qty/Carton(pcs)
|
Product Size
|
Carton Size
|
||||
|
SDR-500-PRO/PLUS
|
500VA
|
8
|
210*110*150
|
495*280*350
|
||||
|
SDR-1000-PRO/PLUS
|
1000VA
|
8
|
210*110*150
|
495*280*350
|
||||
|
SDR-2000-PRO/PLUS
|
2000VA
|
4
|
240*150*185
|
375*305*435
|
||||
|
SDR-3000-PRO/PLUS
|
3000VA
|
4
|
240*150*185
|
375*305*435
|
||||
|
SDR-5000-PRO/PLUS
|
5000VA
|
2
|
340*220*250
|
515*420*300
|
||||
|
SDR-10000-PRO/PLUS
|
10000VA
|
1
|
385*220*250
|
460*265*300
|
||||
|
SDR-12000-PRO/PLUS
|
12000VA
|
1
|
385*220*250
|
460*265*300
|
||||
|
SDR-15000-PRO/PLUS
|
15000VA
|
1
|
310*270*560
|
410*360*650
|
||||
|
SDR-20000-PRO/PLUS
|
20000VA
|
1
|
360*340*620
|
450*430*725
|
||||
