Quick Details
-
Product name:
-
total station
-
Model:
-

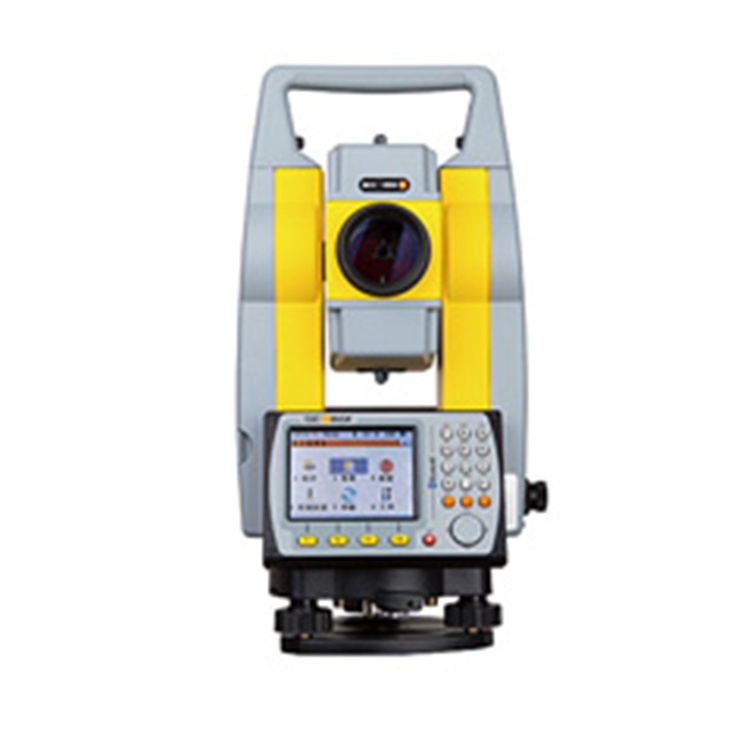

GEOMAX Zoom95 total station
-
Imaging:
-
Erect
-
Angle accuracy:
-
2"
-
Weight:
-
5.8KG
-
Interface:
-
USB,RS-232C
-
Storage:
-
40,000 POINTS
-
Working temperture:
-
-20℃~50℃
-
Size:
-
174X207X383mm
-
Carton size:
-
0.53*0.33*0.41cm
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
GEOMAX
-
Model Number:
-
zoom35
-
Product name:
-
total station
-
Model:
-
GEOMAX Zoom95 total station
-
Imaging:
-
Erect
-
Angle accuracy:
-
2"
-
Weight:
-
5.8KG
-
Interface:
-
USB,RS-232C
-
Storage:
-
40,000 POINTS
-
Working temperture:
-
-20℃~50℃
-
Size:
-
174X207X383mm
-
Carton size:
-
0.53*0.33*0.41cm
Onboard System
With the highly productive function and performance on each level, N41 has a wide range of applications such as surveying, engineering and constructions. The internal Bluetooth, SD Card port and USB afford a direct and fast data transfer between total station and PC.
Tunnel System
With the characteristics of simple operation, graphical display, rapid and accurate calculation, it can easily realize the section data acquisition, analysis, construction stake-out, random detection in real-time. This software is convenient for operator to finish the tunnel project, also meet all the requirement of saving money and time.
· Real-time graphic display for data collection.
· Reliable analysis of section measurement result, fast calculation for tunnel overbreak and underbreak.
· Auto-match and calculation among designed flat curve, designed vertical curve, theoretical section and actual measuring data.
· 3D coordinate of blast hole profile, can stake-out directly in tunnel.
Specification
| model | ZOOM35 Pro series total station |
| Technical index | |
| Imaging | Just like |
| Aperture | 40mm |
| gain | 30× |
| Field of view | 1°30' (26m/1km) |
| Resolution | 3" |
| Shortest focal length | 1.7m |
| Distance measurement | |
| Single prism | 3500m,>7500m (Prism-free mode) |
| Prism group | 5400m |
| Ranging accuracy | 2mm + 2ppm |
| No prism | 1000m |
| Prism-free accuracy | 3mm+2ppm |
| Ranging time | Precise measurement/fast/tracking: 2.4s/0.8s/0.15s |
| Angle measurement | |
| Angle measurement mode | Absolute encoder scale |
| Angle display | 1" / 5" / 10" |
| Precision | 2" |
| Compensator | |
| Compensation method | Integrated liquid photoelectric dual-axis compensation |
| The scope of work | ±4' |
| Setting accuracy | 0.5" |
| Laser plummet | |
| Types of | Laser dot, step brightness adjustment |
| Precision | 1.5mm (instrument height 1.5m) |
| surroundings | |
| Operating temperature | -20℃~50℃ |
| -30℃ work | Support (optional) |
| IP rating | IP54 |
| Storage temperature | -40℃~70℃ |
| operating | |
| operating system | Win CE |
| Display screen | 3.5 inch color touch screen |
| keyboard | Double-sided numeric keypad |
| power supply | |
| type of battery | High energy lithium battery |
| Voltage/Capacity | 7.4V 4400mAh |
| Use ZBA-400 during working hours | 20h (when the new battery is 25℃, measure once every 30 seconds, the backlight is off) |
| 36h (continuous angle measurement mode) | |
| ZBA-400 is used for range finding times | About 9000 |
| communication | |
| RAM | 10000 yuan |
| Serial port | RS232 |
| Bluetooth | stand by |
| USB | stand by |
| U Disk | stand by |
If you want to know more about our products, please consult us!
