Quick Details
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
15(30min)/11(rated)
-
Travel (X Axis)(mm):
-
30 mm
-
Travel (Z Axis)(mm):
-
30 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2300*1700*1930mm
-
Brand Name:
-
Qingluanfuxing
-
Model Number:
-

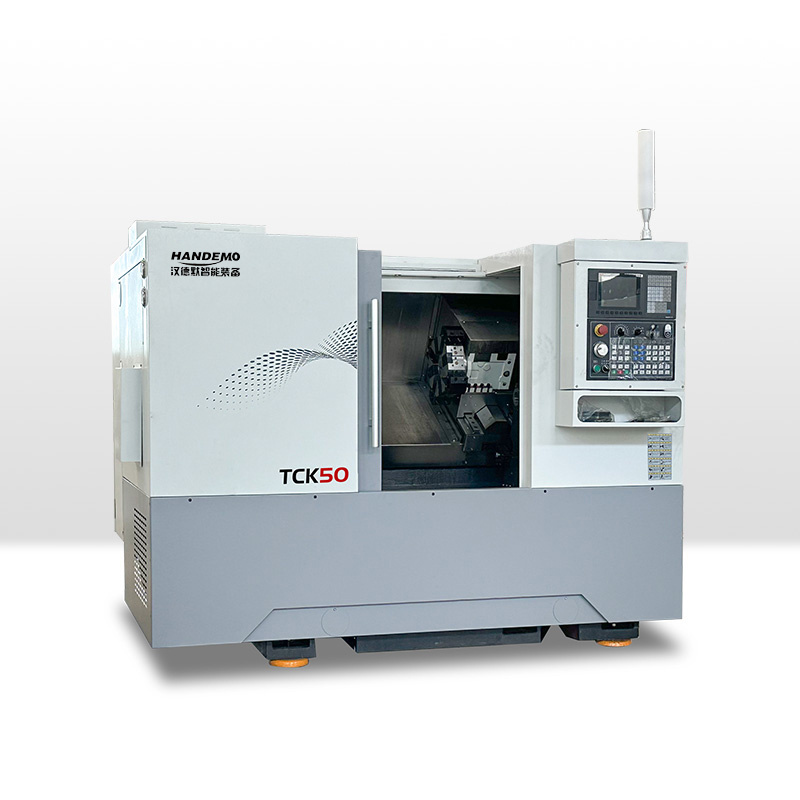

TCK50
-
Voltage:
-
220v/380v
-
Weight (KG):
-
3600
-
Marketing Type:
-
Hot Product
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
500
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
15(30min)/11(rated)
-
Travel (X Axis)(mm):
-
30 mm
-
Travel (Z Axis)(mm):
-
30 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2300*1700*1930mm
-
Brand Name:
-
Qingluanfuxing
-
Model Number:
-
TCK50
-
Voltage:
-
220v/380v
-
Weight (KG):
-
3600
-
Marketing Type:
-
Hot Product
|
DEFINITION |
SPECIFICATION |
MANUFACTURER |
FROM |
|
|
1 |
GSK988TA |
CHINA |
||
|
2 |
11KW |
GSK |
CHINA |
|
|
3 |
X axis ball screw
|
Φ32*12 L1042 |
NSK /THK |
JAPAN |
|
4 |
Z axis ball screw |
Φ32*12 L635 |
NSK/THK |
JAPAN |
|
5 |
The X axis guide |
35Specifications Ball bearing cable rails |
HIWIN/PMI |
TAIWAN |
|
6 |
The Z axis guide |
35Specifications Ball bearing cable rails |
HIWIN/PMI |
TAIWAN |
|
7 |
90X140X37 |
NTN & NSK |
JAPAN |
|
|
100X150X37 |
||||
|
100X150X45 |
||||
|
8 |
X axis bearing |
25 X62X15 |
NTN/NACHI/ CSPG |
JAPAN |
|
9 |
Z axis bearing |
25 X62X15 |
NTN/NACHI/ CSPG |
JAPAN |
|
10 |
tailstock guide |
slide rail |
Our factory
|
CHINA |
|
11 |
Tailstock oil cylinder |
CHDQB50-100DM-M9BL |
SMC |
JAPAN |
|
12 |
Tool station |
8-station |
XINGLONG/JINGANG |
TAI WAN |
|
13 |
Hydraulic Chuck |
8″hollow |
AUTOGRIP |
TAI WAN |
|
14 |
Hydraulic tailstock |
With radial locking |
Our Factory |
CHINA |
|
15 |
|
CHINA |
||
|
16 |
Chip conveyer |
Chain type |
|
CHINA |
1. Payment: TT 3 0% advance payment,pay the balance before delivery.
2. Lead Time: 20-40 working days after receiving your 3 0% advance payment
3. Warrenty: 12months
4. Delivery Location: QingDao port
5. Packing standard:The machine is covered with plastic film and placed on a pallet. The packing standard is standard export plywood wooden cases
