Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DID
-
Model Number:
-
FB-9B
-
Product type:
-
Cross Flow Fan
-
Size:
-
90mm
-
Material:
-
Aluminum Alloy
-
Power Type:
-
Electric Power
-
Bearing Type:
-
Ball Bearing
-
Rated voltage:
-
220V
-
Fan outlet length:
-
270mm
-
Power:
-
25W
-
Keyword:
-
Ventilation, heat dissipation, silence
-
Usage:
-
elevator
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Other
-
Electric Current Type:
-
AC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DID
-
Model Number:
-
FB-9B
-
Product type:
-
Cross Flow Fan
-
Size:
-
90mm
-
Material:
-
Aluminum Alloy
-
Power Type:
-
Electric Power
-
Bearing Type:
-
Ball Bearing
-
Rated voltage:
-
220V
-
Fan outlet length:
-
270mm
-
Power:
-
25W
-
Keyword:
-
Ventilation, heat dissipation, silence
-
Usage:
-
elevator
Product details
Elevator fan
Impeller diameter 90mm,
air outlet
length 270mm
Product material
:
Impeller
: The fan impeller is made of aluminum magnesium alloy, featuring light weight, high strength, large air volume, low noise, low vibration, good temperature resistance and long service life.
Air duct
: its guard plate adopts SPGC 1.0T (0.6-1.0 depending on different specifications)
Connector
: EPDM anti fatigue and high temperature resistant silicone rubber
Bearing
: original imported bearing
Motor
:
AC
: AC cover motor
Working voltage
: AC220V, 50HZ
Working power
: 25W
working wind
speed
: 1250rpm
Working speed
: 2500 to 3000 Heating frame can be added or not, and the power of heating frame is from 350W to 2500W The working voltage depends on different specifications.
Our product performance:
Insulation grade
: Class E for standard products (up to Class H)
Insulation withstand
voltage
: AC 1500V, 1min (up to 3500V, 1min)
Maximum waterproof grade
: IP55-IP68
Operating temperature
: -15 ℃~+70 ℃ (up to - 50 ℃~+120 ℃)
Scope of application
: widely used in electric clothes racks, ovens, fireplaces, refrigeratormotors, air heaters, air purifiers, clothes dryers, ovens, microwave ovens, hot wave ovens, purifiers, electric heaters,disinfection cabinets, air conditioners, display cabinets, wine cabinets, humidifiers, special motors, elevators, real firefireplaces, fireplaces and other electrical appliances or eaves exhaust
Product pictures
|
Technical performance data
|
|

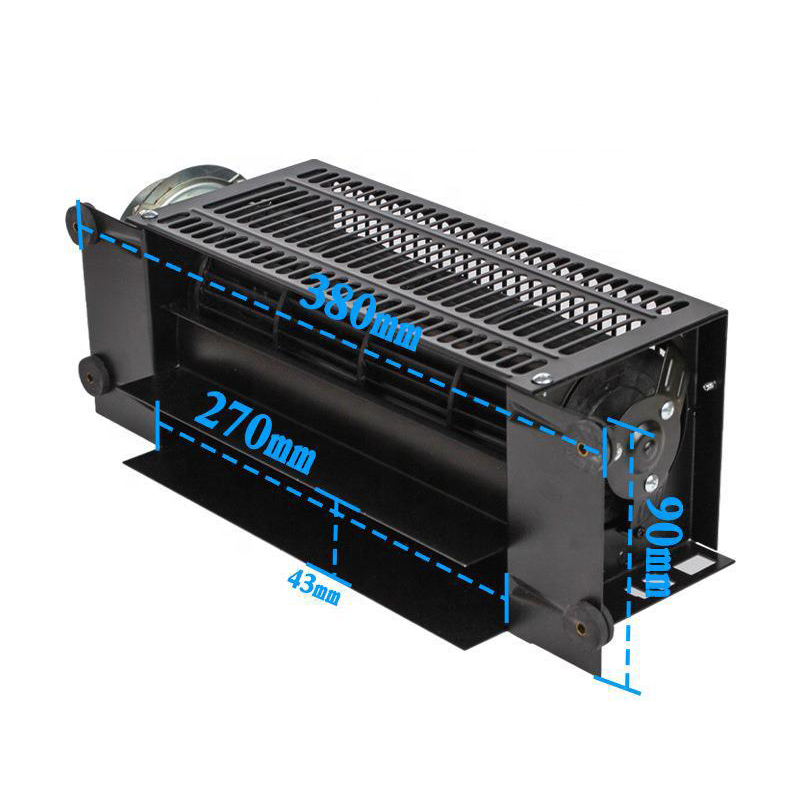

Fan structure data
|
|
||
|
Speed（RPM）
|
1250
|
Air outlet size（mm）
|
270*43
|
||
|
Max Air Flow（m3/min）
|
5.5
|
Mounting dimension（mm）
|
380*90
|
||
|
Noise(dB(A))
|
48
|
Fan impeller dimensions（mm）
|
266*91
|
||
Application
This product is mainly used for ventilation and heat dissipation of elevators.
