Quick Details
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thorpmct
-
Weight (KG):
-
268
-
After-sales Service Provided:
-
Online support
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS

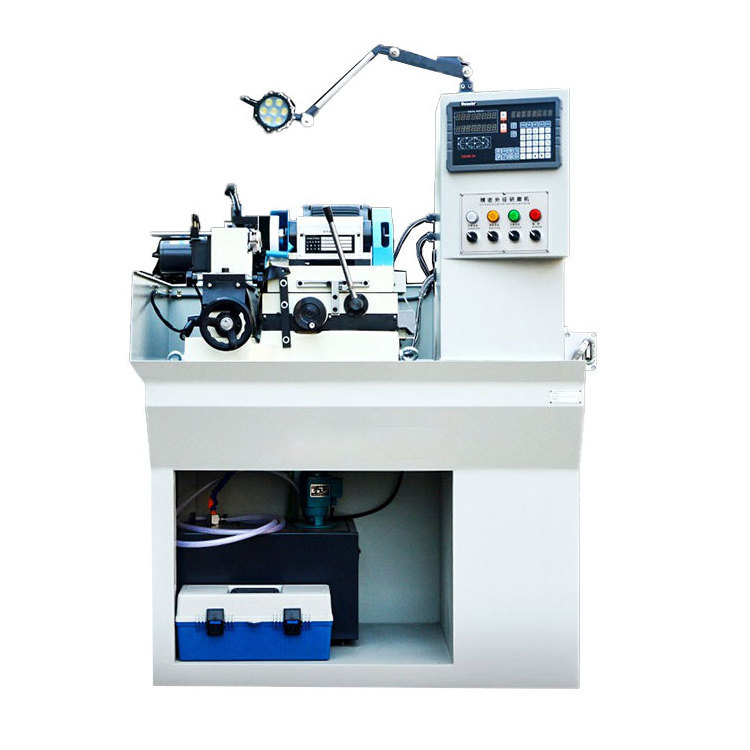

TH-02 moicro internal grinder
Feature ：
It is easy to operate and especially
for grinding micro internal hole
(1mm ~20mm ).
High concentricity
Standard Accessories：
for grinding micro internal hole
(1mm ~20mm ).
High concentricity
1. Φ3mm colletx 1
2. Φ6mm colletx 1
3. Nut(M14 x P0.75) X 1
4. Tool Box and accessory x 1
Optional Attachment：
1. Extension support
(400mm long Maximum)
2. 45degree swivel
3. Cooling system
4. Reading scale
5. Lamp
Applications：
Guide Bush
Industrial Needle
Household Needle
Collet
Ceramic Oil Nozzle Inner Hole
Ceramic Guide Bush
Other Similar Micro Internal Grinding
Industrial Needle
Household Needle
Collet
Ceramic Oil Nozzle Inner Hole
Ceramic Guide Bush
Other Similar Micro Internal Grinding
PRODUCT CONFIGURATION
|
Technical parameters
|
|
Unit
|
TH-02
|
|
||
|
Grinding diameter range
|
|
mm
|
Φ1-20
|
|
||
|
Clamping diameter
|
|
mm
|
Φ1-25
|
|
||
|
Max travel
|
Horizontal
|
mm
|
40
|
|
||
|
|
Longitudinal
|
mm
|
70
|
|
||
|
Work head rotation speed
|
|
rpm
|
150
|
|
||
|
Working head rotation angle
|
|
°
|
±5°
|
|
||
|
Spindle speed
|
|
rpm
|
6500rpm
|
|
||
|
Spindle motor
|
|
|
3phase
|
|
||
|
Machine size(L×W×H)
|
|
mm
|
600×500×1500mm
|
|
||
|
Machine Net weight
|
|
kg
|
290
|
|
||
