Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
GOOD USE
-
Model Number:
-
GU-500-400
-
Diameter:
-
400ml
-
Size:
-
400ml
-
Mixing ratio:
-
3:1
-
Mixing color:
-
Orange
-
Shelf life:
-
18 months
-
Label:
-
Good Use or private label
-
Feature:
-
Styrene free and odorless
-
Private:
-
OEM / ODM
-
Advantage:
-
Suitable high temperate climates
-
Applications:
-
For bolt, anchor, threaded rod, rebar
-
Working time:
-
Slow curing
Quick Details
-
System of Measurement:
-
cartridge
-
Material:
-
Pure Epoxy Resin
-
Capacity:
-
High Load Capacity
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
GOOD USE
-
Model Number:
-
GU-500-400
-
Diameter:
-
400ml
-
Size:
-
400ml
-
Mixing ratio:
-
3:1
-
Mixing color:
-
Orange
-
Shelf life:
-
18 months
-
Label:
-
Good Use or private label
-
Feature:
-
Styrene free and odorless
-
Private:
-
OEM / ODM
-
Advantage:
-
Suitable high temperate climates
-
Applications:
-
For bolt, anchor, threaded rod, rebar
-
Working time:
-
Slow curing
Long working time thread rolling machine chemical anchor bolt m32 adhesive for concrete and buildings
|
Product Name |

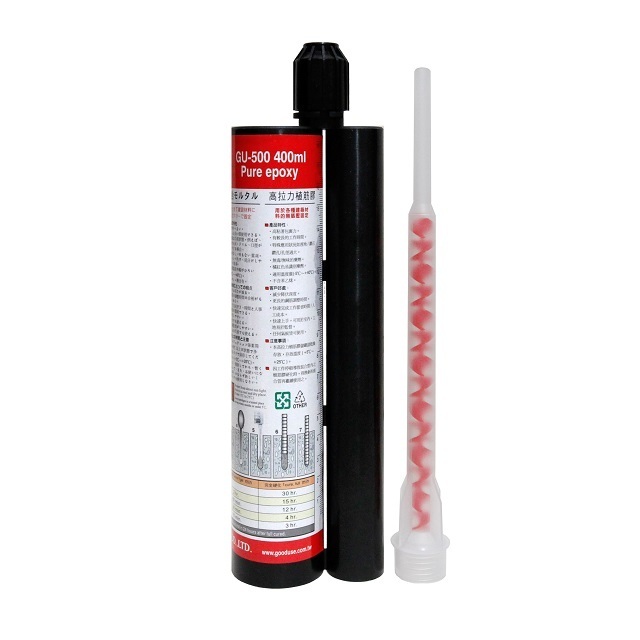

Pure Epoxy styrene free chemical anchor |
|
Model Number |
GU-500 |
|
Materials |
Pure Epoxy |
|
Type |
Construction Adhesive, Chemical fixing system |
|
Size |
390ml, 400ml, 650ml |
|
Mixing Ratio |
390ml (3:1), 400ml (3:1), 650ml (1:1) |
|
Good Use or customized label, private label, OEM |
|
|
Applications |
General fixings and heavy construction |
|
Mixing Color |
Gray (650ml), orange (390ml, 400ml) |
|
Shelf life |
18 months |
|
Cartridge |
side by side, two components |
|
Certificate |
ISO, SGS, AIT, REACH, VOC |
|
Effect |
Heavy duty bonding and loading |
|
Packing Detail |
one cartridge with one mixer per bag |
|
Shipping Detail |
by sea/air, according to customer's requirements |
|
Delivery Time |
Depending on order quantity |
|
Export to |
all countries |
|
Min. Order (MOQ) |
no MOQ |
|
Payment Terms |
T/T |
|
Custom Order |
custom order are accepted |
|
Supply Ability |
300,000 pcs/month |
|
Sample Time |
7 days |
|
Place of origin |
Kaohsiung, Taiwan |
|
Other products |
Polyester, Vinylester, Epoxy Acrylate |
|
Accessory |
mixer, caulking gun, nylon sleeve, air pump, brush |
Features:
- High load capacity, high adhesive force
- Long cure times with adequate working time in temperate climates .
- Expansion-free anchoring allows low spacing and edge distance.
- No shrinkage, styrene free , odorless , and non-toxic .
- Special application to wood, diamond drilled holes and large bore diameter .
- Environmentally kind, suitable for indoor application .
Diverse formula:
♦ Build Construction Structural:
- Staircases, Hand Rails, Facade, Sound Barriers, Awnings, Residential refurbishment, Public Seating, Facade Pins, Consoles, balustrades & safety barriers, Balustrade, Kitchen furniture, Air conditioning ducts.
♦ Structural Project:
- Pipelines, Steel Brackets, Bridge Beams, Tunnel, Jetties Repair, Construction material, Structure Reinforcement, Pillar Expanding, Bridge Reinforcement, Structural recovery, Steel constructions.
♦ For fixing anchor bolt:
- Anchor, Bolts, Threaded rod, Threaded Bolt, Rebar, Stud, Iron Rod, Reinforcing Bars, Railing, Walls, Girder, Beams and Columns, Starter Bars , Steel Dowels, Bolts and special fastening systems.
♦ Suitable Materials:
- Concrete / Non-cracked concrete
- Marble / Reconstituted stone / Rock / Stone
- Hollow Brick / Solid masonry / Vertical perforated brick
- Solid Brick / Solid Block / Porous lightweight concrete
- Sand lime brick
- Perforated slab
- Wood
Long working time thread rolling machine chemical anchor bolt m32 adhesive for concrete and buildings
Curing Time Table
| Temperature (C) | Gelling Time | Full Curing Time |
| 5~10 | 2 hr. | 24 - 40 hr. |
| 10~20 | 30 min. | 16 - 18 hr. |
| 20~30 | 15 min. | 5 - 6 hr. |
| 30~40 | 10 min. | 4 - 5 hr. |
After fully cured, wait for 24 hours before doing the pull out test.
Haul Strength Table
| Pressure | Destroy Haul Strength (Kgf/KN) | Safety Haul Strength (Kgf/KN) | Working Standard (mm) | |||||
| Concrete Strength | 4,000 psi | 280 kg/cm2 | 4,000 psi | 280 kg/cm2 | Hole Diameter | Hole Depth | ||
| Rebar No. |
#3 |
(Dia 10) | 3,607 | 36.4 | 1,202 | 12.1 | 13 | 90 |
| #4 | (Dia 13) | 6,409 | 64.7 | 2,136 | 21.6 | 16 | 120 | |
| #5 | (Dia 16) | 9,695 | 97.9 | 3,232 | 32.6 | 20 | 145 | |
| #6 | (Dia 19) | 13,655 | 137.9 | 4,552 | 46.0 | 25 | 170 | |
| #7 | (Dia 22) | 18,672 | 188.6 | 6,224 | 62.9 | 28 | 200 | |
| #8 | (Dia 25) | 24,032 | 242.7 | 8,011 | 80.9 | 32 | 225 | |
| #9 | (Dia 29) | 27,364 | 276.4 | 9,121 | 92.1 | 37 | 250 | |
| #10 | (Dia 32) | 31,730 | 320.5 | 10,577 | 106.8 | 40 | 290 | |
| #11 | (Dia 36) | 35,843 | 362.1 | 11,948 | 120.7 | 42 | 320 | |
Remarks: 1. Concrete Strength fc': 280 kg/cm2 (4,000psi)
2. Rebar Strength: #3~#5 fy: 2,800 kgf/cm2, #6~#11 fy:4,200 kgf/cm2
Consumption Chart
| Anchor Size | Hole Diameter (mm) | Hole Depth (mm) | Number of Fixings | |||||||
| 150ML | 235ML | 280ML | 345ML | 360ML | 380ML | 400ML | 650ML | |||
| M8 | 10 | 80 | 30 | 55 | 57 | 85 | 87 | 95 | 78 | 128 |
| M10 | 12 | 90 | 17 | 36 | 38 | 56 | 58 | 63 | 65 | 71 |
| M12 | 14 | 110 | 11 | 22 | 24 | 34 | 35 | 38 | 20 | 34 |
| M16 | 18 | 125 | 5 | 11 | 13 | 17 | 17 | 19 | 11 | 17 |
| M20 | 24 | 170 | 2 | 5 | 7 | 7 | 8 | 8 | 6 | 8 |
| M24 | 28 | 210 | 1 | 3 | 5 | 4 | 5 | 5 | 3 | 5 |
| M30 | 35 | 270 | 0 | 1 | 3 | 2 | 2 | 2 | 1 | 2 |
| M36 | 40 | 330 | 0 | 1 | 2 | 1 | 1 | 2 | 1 | 1 |
Note: Based on continuous installation without interruptions or nozzle changes. Provided as a guide and will vary with temperature
MSDS & TDS or more details, please feel free to Contact Us.
- Drill correct hole size and depth on concrete/ brick/ stone/ masonry.
- Blow out dust.
- Clean the hole with brush.
- Blow out remaining dust.
- Inject adhesive from the bottom.
- Insert stud/ bolt/ anchor/ rebar/ threaded rods into the hole.
- Wait for few minutes. The steel and concrete will bond very firmly.
♦ Chemical anchors installation instruction and testing video. https://youtu.be/qmCKmROfuNg
Long working time thread rolling machine chemical anchor bolt m32 adhesive for concrete and buildings
Packaging:
- One cartridge with one mixer in plastic bag. Or one cartridge with two mixers in plastic bag.
- 20 sets per carton.
- Good Use Label or no Label.
- EXP Date on the top of cartridge.
- Customized Packing.
| Standard Pack/Set | Pcs/Ctn | Ctn Size(cm) | Ctn/Pallet | Pallets/ 20'FCL | Pallets/ 40'FCL |
| 150ml+ 1mixer+ 1Plunger | 20 | 31.5×24.2×28.3 | 70 | 9 | 20 |
| 235ml+ 1mixer | 20 | 31.5×24.2×26 | 60 | 9 | 20 |
| 345ml+ 1mixer | 20 | 36.1×24.8×27.3 | 60 | 9 | 20 |
| 360ml+ 1mixer | 20 | 36.1×24.8×27.3 | 60 | 9 | 20 |
| 380ml+ 1mixer | 20 | 36.4×29.7×24.8 | 45 | 9 | 20 |
| 400ml+ 1mixer | 20 | 40×24.8×28 | 50 | 9 | 20 |
| 650ml+ 1mixer | 10 | 31.5×24.2×28 | 70 | 9 | 20 |
Shipping:
- Shipments can be arranged by sea, air, courier express.
- Courier express includes GDA, DHL, FedEx, TNT, UPS, EMS, SF, etc.
