Quick Details
-
Max Speed:
-
40 cans/min
-
Voltage:
-
220V, 50Hz/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Utrust Pack
-
Dimension(L*W*H):
-
2100*1200*1700(L*W*H)
-
Weight:
-
400 KG
-
Function:
-
Tin canning, can seaming, can sealer
-
Sealing head:
-
1
-
Sealing rollers:
-
4 (2 first rollers/2 second rollers)
-
Sealing speed:
-
30-35 cans/min
-
Sealing Height:
-
40-200mm (Adjustable)
-
Sealing diameter:
-
50-100mm (8 station)
-
Power:
-
1.7KW
-
Air souring:
-
0.6-0.8 Mpa
-
Product name:
-
Automatic Milk Tea Drink Canning Machine Juice Water Can Sealer
-
After-sales-Service:
-
Online Vedio Support
Quick Details
-
Packaging Type:
-
CANS, Bottles
-
Packaging Material:
-
Plastic, Paper, Metal
-
Driven Type:
-
Electric
-
Max Speed:
-
40 cans/min
-
Voltage:
-
220V, 50Hz/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Utrust Pack
-
Dimension(L*W*H):
-
2100*1200*1700(L*W*H)
-
Weight:
-
400 KG
-
Function:
-
Tin canning, can seaming, can sealer
-
Sealing head:
-
1
-
Sealing rollers:
-
4 (2 first rollers/2 second rollers)
-
Sealing speed:
-
30-35 cans/min
-
Sealing Height:
-
40-200mm (Adjustable)
-
Sealing diameter:
-
50-100mm (8 station)
-
Power:
-
1.7KW
-
Air souring:
-
0.6-0.8 Mpa
-
Product name:
-
Automatic Milk Tea Drink Canning Machine Juice Water Can Sealer
-
After-sales-Service:
-
Online Vedio Support
Product Description

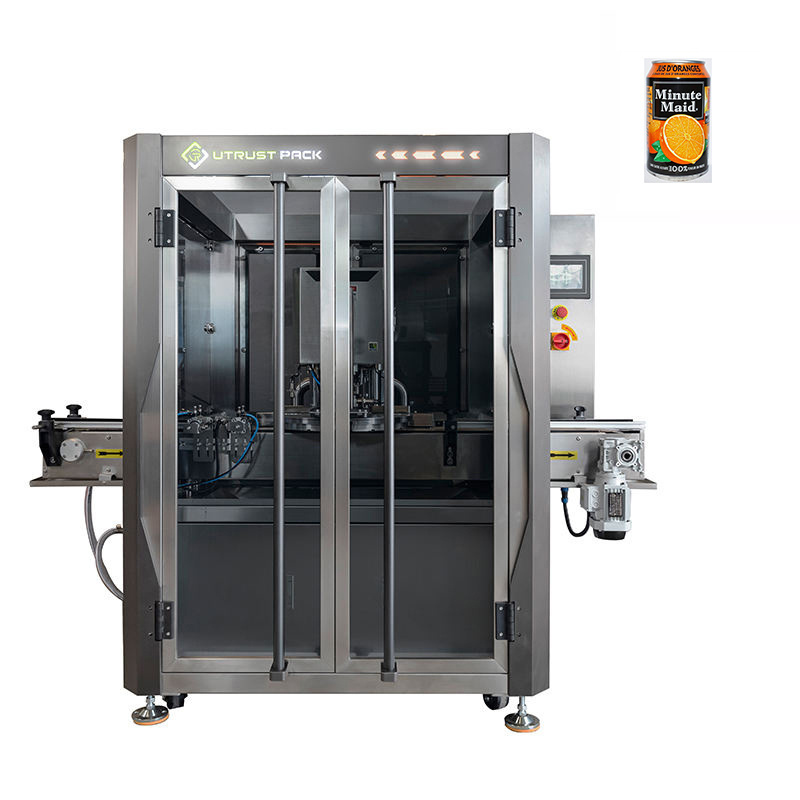

Fully Automatic Water Proof Milk Tea Drink Canning Machine Juice Water Can Sealer For Sale
This machine is applicable for sealing various round cans including PET plastic bottles, tinplate cans, aluminum cans, paper cans, and etc.
It has advanced design, reasonable structure and easy operation, which is the necessary and ideal packaging equipment for food, tea and chemical industries.
This waterproof version of the automatic can sealing machine has a new patented design to prevent from spill, which is especially suitable for sealing various cans of liquid materials.
Specification
|
Function
|
tin canning, can seaming, tin seamer, can sealing, can sealer
|
|
Sealing rollers
|
4(2 first rollers/2 second rollers)
|
|
Sealing Speed
|
30-35 cans/min
|
|
Sealing Height
|
40-250mm (adjustable)
|
|
Sealing Diameter
|
50-100mm (8 station)
|
|
Voltage
|
220V,50/60Hz
|
|
Power
|
1.7KW
|
|
Weight
|
400KG
|
|
Dimension
|
2100*1200*1700mm (L*W*H)
|
|
Air Source Pressure
|
0.6-0.8MPa
|
*
Waterproof design
, easy to clean by water.
* External electric case with delta 7 inch touch screen.
* Turntable automatic reset positioning after initiating.
* Auto stop and alarm function in case of cans stucking within the turntable, to effectively prevent mechanical structure damage.
* One-button reset function for turntable positioning after taking out the cans.
* Easy changing mould function: replace the turntable and the sealing position can be automatically memorized with one-button setting, so as to eliminate manual adjustment on the screws for different position.
* Production capacity of 30-35 cans/min and easy to be connected with other machines for packing line.
* Sealing chuck head and sealing rollers are made with 440C stainless steel material and go through vacuum quenching tempering heat treatment to ensure high hardness and durability.
* Can Body does not rotating with good sealing performance.
* Suitable for a variety of cans including plastic cans , tinplate cans , aluminum cans , paper cans , and etc. and widely applicable in food, beverage, and chemical industries.
Show Details
TOUCH SCREEN
1. One button reset function
WATER CHANNEL
1. Water sink with a strainer
2. Wash directly by water
PATANTED DESIGN SEAMING HEAD
1. Reach higher productivity at lower
frequency
frequency
TURNTABLE DRIVEN BY SERVO MOTOR
1. Precisely positioning
2. Detect the torque
2. Detect the torque
EXTERNAL ELECTRIC CASE
1. Delta 7 inch touch screen
MINIMIZE MAINTENANCE
1. Replacing cam divider with servo
motor
2. Replacing reducer with encoder
motor
2. Replacing reducer with encoder
