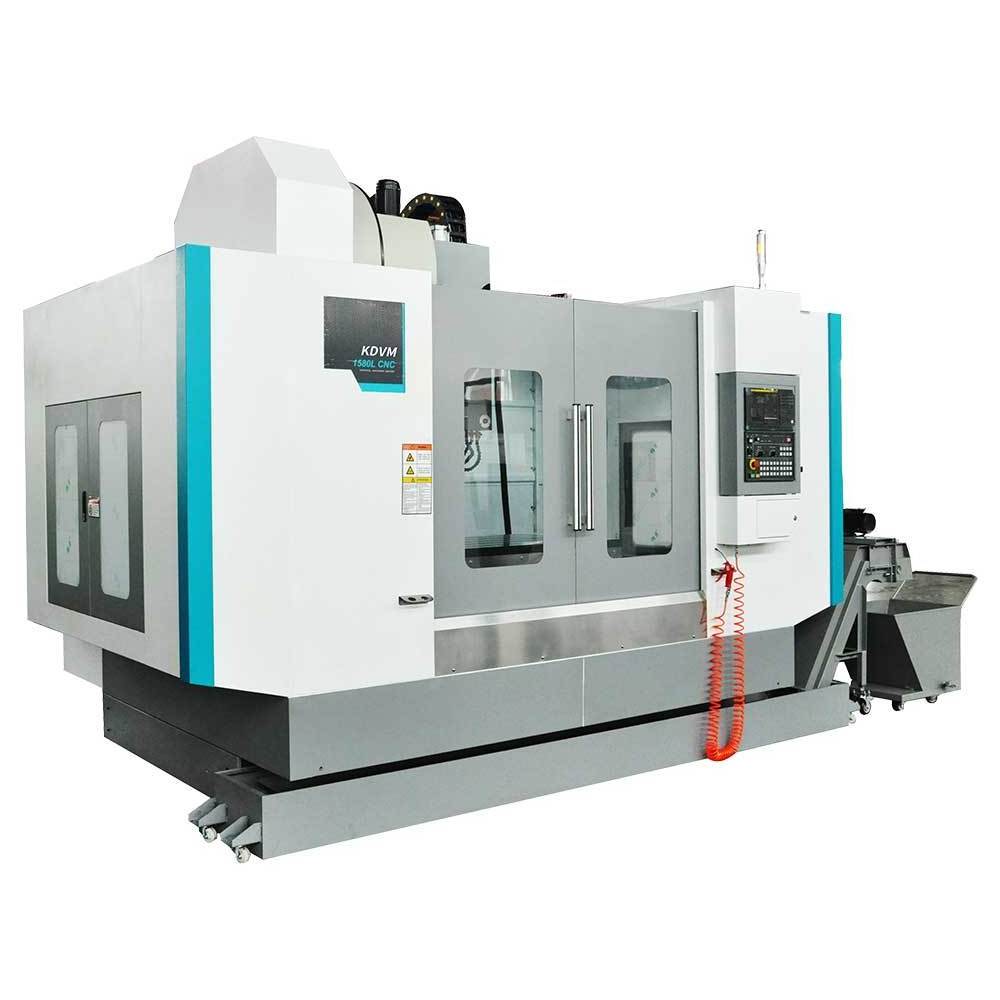

Kaida Fanuc control system VMC1580 cnc machining milling cnc machines cnc milling machine

Kaida Fanuc control system VMC1580 cnc machining milling cnc machines cnc milling machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $70875

≥3 Sets

US $67745

≥5 Sets

US $65600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Table Travel (Y) (mm):: 800

Dimension(L*W*H):: 2280*1880*2100 mm

Weight (T):: 12 T

Table Travel (Z) (mm):: 700

Positioning Accuracy (mm):: 0.006

Repeatability (X/Y/Z) (mm):: 0.008

Range of Spindle Speed(r.p.m):: 0 - 6000 r.p.m

Spindle Motor Power(kW):: 15/18.5

Max. Table Load(kg):: 1500 kg

Place of Origin:: Zhejiang, China

Brand Name:: KD

Voltage:: optional

Weight:: 4500kg

After-sales Service Provided:: Engineers available to service machinery overseas

Power(W):: 11/15KW

Controlling Mode:: Cnc Control

Product type:: Cnc 3/4/5 Axis Machine

Product name:: 3-axis Vertical Cnc Machining Center

Spindle speed:: 8000/10000/12000rpm

Control system:: SIEMENS GSK FANUC (optional)

CNC controller:: Fanuc Siemens Syntec KND GSK

Machine Type:: CNC Vertical Machining Center

Quick Details

Table Size (mm):: 1700x800

Number of Axes:: 3, 4, 5

Table Travel (X) (mm):: 1500

Table Travel (Y) (mm):: 800

Dimension(L*W*H):: 2280*1880*2100 mm

Weight (T):: 12 T

Table Travel (Z) (mm):: 700

Positioning Accuracy (mm):: 0.006

Repeatability (X/Y/Z) (mm):: 0.008

Range of Spindle Speed(r.p.m):: 0 - 6000 r.p.m

Spindle Motor Power(kW):: 15/18.5

Max. Table Load(kg):: 1500 kg

Place of Origin:: Zhejiang, China

Brand Name:: KD

Voltage:: optional

Weight:: 4500kg

After-sales Service Provided:: Engineers available to service machinery overseas

Power(W):: 11/15KW

Controlling Mode:: Cnc Control

Product type:: Cnc 3/4/5 Axis Machine

Product name:: 3-axis Vertical Cnc Machining Center

Spindle speed:: 8000/10000/12000rpm

Control system:: SIEMENS GSK FANUC (optional)

CNC controller:: Fanuc Siemens Syntec KND GSK

Machine Type:: CNC Vertical Machining Center

FEATURES AT A GLANCE

Product Features

1. Aseismatic capability, high strength and good quality cast iron.

2. Wide base and Y-type column structure.

3. Taiwan high precision linear guide ways.

4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.

5. Adopting Japan NSK special screws angular contact ball bearing group.

Right elevation

Left elevation

Back elevation

PRODUCT SPECIFICATIONS

MODELS	KDVM1580L
TRAVEL
X axis	1500mm
Y axis	800mm
Z axis	700mm
Spindle center to column	900mm
Spindle end to table	180-880mm
TABLE
Table size	800×1700mm
T-slot(width×number×space)	18mm×5×150mm
Max. table loading	1500kg
SPINDLE
Taper bore of spindle	BT50
Spindle power	15/18.5kw
Spindle speed	6000rpm
FEED
X/Y/Z fast travel speed	20/ 20/ 15m/min
Torque axis motors	36/ 36/ 36Nm
ATC
Tool number	24
Max. tool size (With adjacent tool)	Ф78mm
Max. tool size (Without adjacent tool)	Ф120mm
Max. tool length	300mm
Max. tool weight	8kg
Time (tool-tool)	2s
ACCURACY
Positioning accuracy for X/Y/Z	≤0.012/0.01/0.01mm
Repeatability	≤0.006/0.006/0.008mm
Min. Input	0.001mm
OTHERS
Overall dimension (LxWxH) with auto conveyor	4910x3350x3240mm
Net weight	13000kg
Coolant pump motor	0.55kw
Overall dimension (LxWxH) with auto conveyor	5040x2900x3370mm
Net weight	12000kg
