Quick Details
-
Material:
-
paper
-
Body Material:
-
aluminum alloy
-
Working Medium:
-
Air
-
Working pressure:
-
0.15~1.6MPa
-
Working temperature range:
-
0~60
-
specification:
-
MIDI
-
Port size:
-
G1/2
-
Mounting type:
-
Pipe mounting or foot mounting
-
Capacity of Condensate Fluid:
-
43ml
-
After Warranty Service:
-
Online support, Spare parts
-
Local Service Location:
-
None
Quick Details
-
Marketing Type:
-
Hot Product 2020
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VPC
-
Material:
-
paper
-
Body Material:
-
aluminum alloy
-
Working Medium:
-
Air
-
Working pressure:
-
0.15~1.6MPa
-
Working temperature range:
-
0~60
-
specification:
-
MIDI
-
Port size:
-
G1/2
-
Mounting type:
-
Pipe mounting or foot mounting
-
Capacity of Condensate Fluid:
-
43ml
-
After Warranty Service:
-
Online support, Spare parts
-
Local Service Location:
-
None

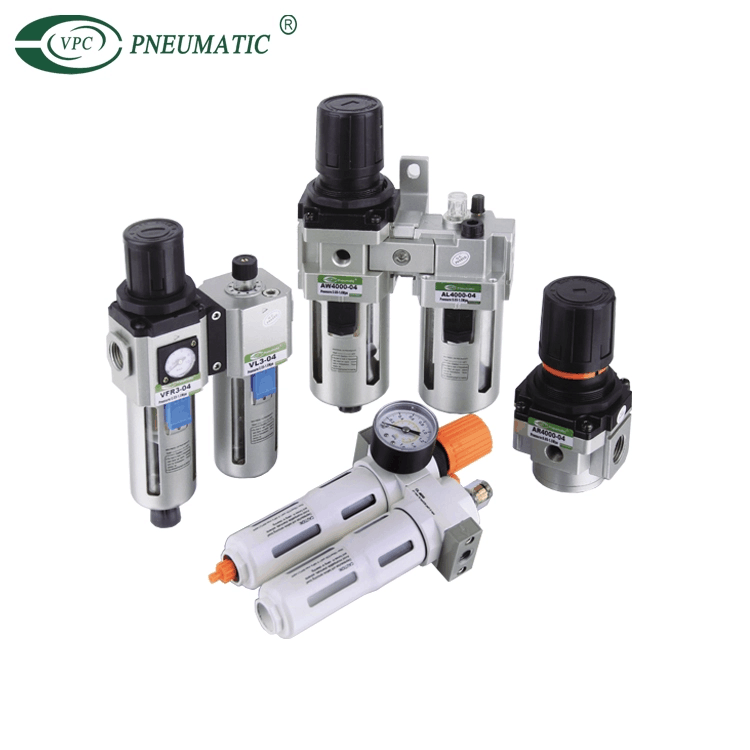

Pneumatic part O Series OU-1/2 MIDI 43ml aluminum alloy air treatment unit air filter regulator lubricator
|
Specification
|
MINI
|
|
|
MIDI
|
|
|
MAXI
|
|
|||||||
|
Port size
|
G1/8
|
G1/4
|
G3/8
|
G3/8
|
G1/2
|
G3/4
|
G3/4
|
G1
|
|||||||
|
Materials Information
|
House:Zine die-casting,Filter bowl and oil:Polycarbonate,Metal bowl guard:Aluminum alloy,Sealing:NBR,Adjusting knob:POM
|
|
|
|
|
|
|
|
|||||||
|
Working medium
|
Compressed air
|
|
|
|
|
|
|
|
|||||||
|
Mounting type
|
Pipe mounting or leg mounting
|
|
|
|
|
|
|
|
|||||||
|
Assembly Position
|
Vertical ±5°
|
|
|
|
|
|
|
|
|||||||
|
Min.standard nominal flow rate
|
3L/min
|
|
|
6L/min
|
|
|
10L/min
|
|
|||||||
|
Capacity of condensate fluid
|
22ml
|
|
|
43ml
|
|
|
80ml
|
|
|||||||
|
Turned manually
|
0.1-1.6Mpa
|
|
|
|
|
|
|
|
|||||||
|
Fully automatic
|
0.15-1.2Mpa
|
|
|
|
|
|
|
|
|||||||
|
Working pressure
|
0.05-1.2Mpa/0.05-0.7Mpa
|
|
|
|
|
|
|
|
|||||||
|
Precision
|
40um/5um
|
|
|
|
|
|
|
|
|||||||
|
Working temperature range
|
0-60℃
|
|
|
|
|
|
|
|
|||||||
Ordering Code
OU Series FR.L Combination
OU
- 1/4 -
□ -
□
- MINI -
□
OU→
Filter+Regulator+Lubricator
1/4→
Port Size
G1/8" G1/4" G3/8"
G1/2" G3/4" G1"
G1/2" G3/4" G1"
□
→
Precision
Blank:25μm 5M:5μm
□
→
Pressure Gauge
Blank:12bar 7:7bar
Blank:12bar 7:7bar
MINI
MINI:Body width 40mm
MIDI:Body width 55mm
MAXI:Body width 66mm
MIDI:Body width 55mm
MAXI:Body width 66mm
□
→
Condensate Drain
Blank:Turned Manually
S:Semi-automatic
A:Fully automatic
S:Semi-automatic
A:Fully automatic
