Quick Details
-
Keypad Button Material:
-
Other
-
Color:
-
Any Pantone color
-
Size:
-
Custom Size Accepted
-
Certificates:
-
ISO14001:2015 and ISO9001:2015
-
Sample:
-
Freely
-
MOQ:
-
100pcs
-
Delivery time:
-
7-15 Days
-
Glue:
-
Acrylic Pressure Adhesive
-
Advantage:
-
High Adhesive
-
Place of origin:
-
China
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
deson
-
Model Number:
-
ds10011
-
Keypad Button Material:
-
Other
-
Color:
-
Any Pantone color
-
Size:
-
Custom Size Accepted
-
Certificates:
-
ISO14001:2015 and ISO9001:2015
-
Sample:
-
Freely
-
MOQ:
-
100pcs
-
Delivery time:
-
7-15 Days
-
Glue:
-
Acrylic Pressure Adhesive
-
Advantage:
-
High Adhesive
-
Place of origin:
-
China
Products Description

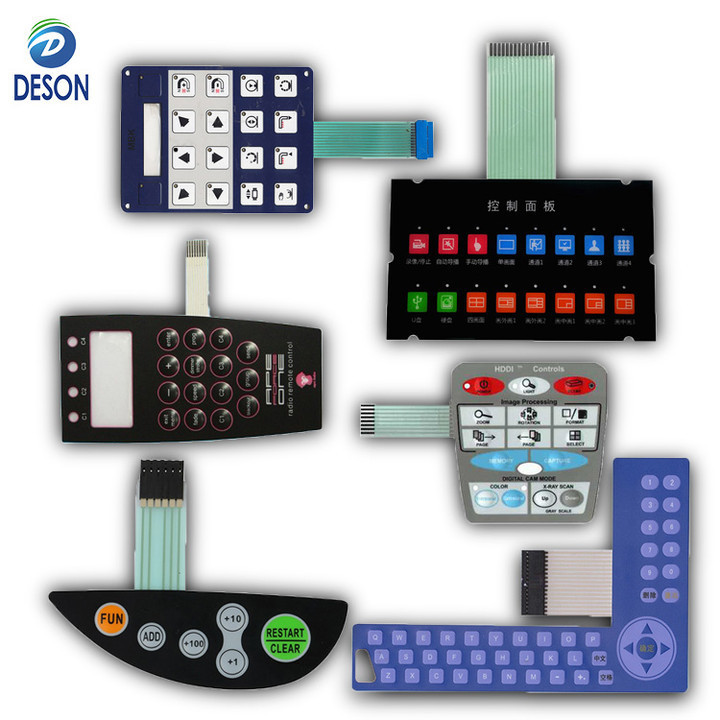

customized fpc pcb capacitive touch button keypad flexible push button membrane switch
OEM Membrane Switch Keypad Control Panel Conductive ink Circuit
China Professional Membrane Switch Keyboard/Keypad Silk Screen Printing
|
PRODUCT PARAMETERS
|
|
|
|
Available Material
|
PC, PMMA,PVC,PET,ABS,PP,etc
|
|
|
Commonly used thickness
|
PC: 0.125—6.0mm (matt, anti-glare, anti scratch, anti-UV)
|
|
|
|
PMMA: 0.5-10.0mm (matt, anti-glare, anti scratch, anti-UV)
|
|
|
Max printing size
|
1300x700 mm
|
|
|
Max cut size
|
2500x1000mm
|
|
|
Color
|
As requested
|
|
|
MOQ
|
100 PCS
|
|
|
Double side adhesive
|
3M467,3M93020,3M9080,VHB4920,etc.
|
|
|
Operating temperature
|
PC: 40-90° PMMA: -40-80°
|
|
|
Available finish
|
Anti-glare surface/Anti-fog surface/Anti-fingerprint surface/Gloosy surface/Frosted surface
|
|
|
Printing
|
Silk-screen printing
|
|
|
Shipping method
|
DHL,Fedex,UPS,etc.
|
|
|
Molding method
|
CNC cutting or die cutting, without tooling
|
|
|
Advantage
|
Glossy surface, colorful printing appearance, good texture, safety and eco-friendly
|
|
|
Certificate
|
ISO9001, ROHS, REACH and CE certification
|
|
|
plastic lens
|
OEM graphic overlay, front panels, logos, nameplates, stickers, CNC precision parts and other plastic parts
|
|
|
OEM vservices
|
Silk screen printing, custom die cutting/CNC cutting
|
|
Feature:
1. Paste, fixed, conductive shielding, conductive shielding, insulation.
2. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and quakeproof.
3. Backlit, high temperature, corrosion, sealing, protection
4. Spraying shelter, insulation, noise, filtering.
1. Paste, fixed, conductive shielding, conductive shielding, insulation.
2. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and quakeproof.
3. Backlit, high temperature, corrosion, sealing, protection
4. Spraying shelter, insulation, noise, filtering.
1.
Graphic Overlay
– PET/PC is usually the material of choice due to its superior chemical resistance and flex life . Deson can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires
2.
Overlay Adhesive
– This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.
3
.
Top Circuit Layer
– The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.
4.
Circuit Spacer
– Thislayer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
5.
Lower Circuit Layer
– This layer is a 0.1mm--0.25mm heatstabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.
6.
Rear Adhesive Layer
– This adhesive layer
bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. Deson can specify theappropriate adhesive type and thickness to bond your membrane keypad to your equipment.
