Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1200*1200*1600mm
-
Application:
-
farm, factory
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
7.5 kw
-
Saw blade diameter:
-
450mm
-
Feeding table length:
-
6m
-
Out-feeding table length:
-
1.2m
-
Cutting thickness:
-
10-120mm
-
Cutting width:
-
30- 200mm
-
Servo drive motor power:
-
0.75kw
-
Name:
-
Automatic cutoff saw
-
Cutting speed:
-
40pcs/min
-
Saw spindle diameter:
-
30mm
-
Cutter spindle rotation speed:
-
3000rpm
Quick Details
-
Type:
-
Cut off saw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leabon
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1200*1200*1600mm
-
Application:
-
farm, factory
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
7.5 kw
-
Saw blade diameter:
-
450mm
-
Feeding table length:
-
6m
-
Out-feeding table length:
-
1.2m
-
Cutting thickness:
-
10-120mm
-
Cutting width:
-
30- 200mm
-
Servo drive motor power:
-
0.75kw
-
Name:
-
Automatic cutoff saw
-
Cutting speed:
-
40pcs/min
-
Saw spindle diameter:
-
30mm
-
Cutter spindle rotation speed:
-
3000rpm
Product Description

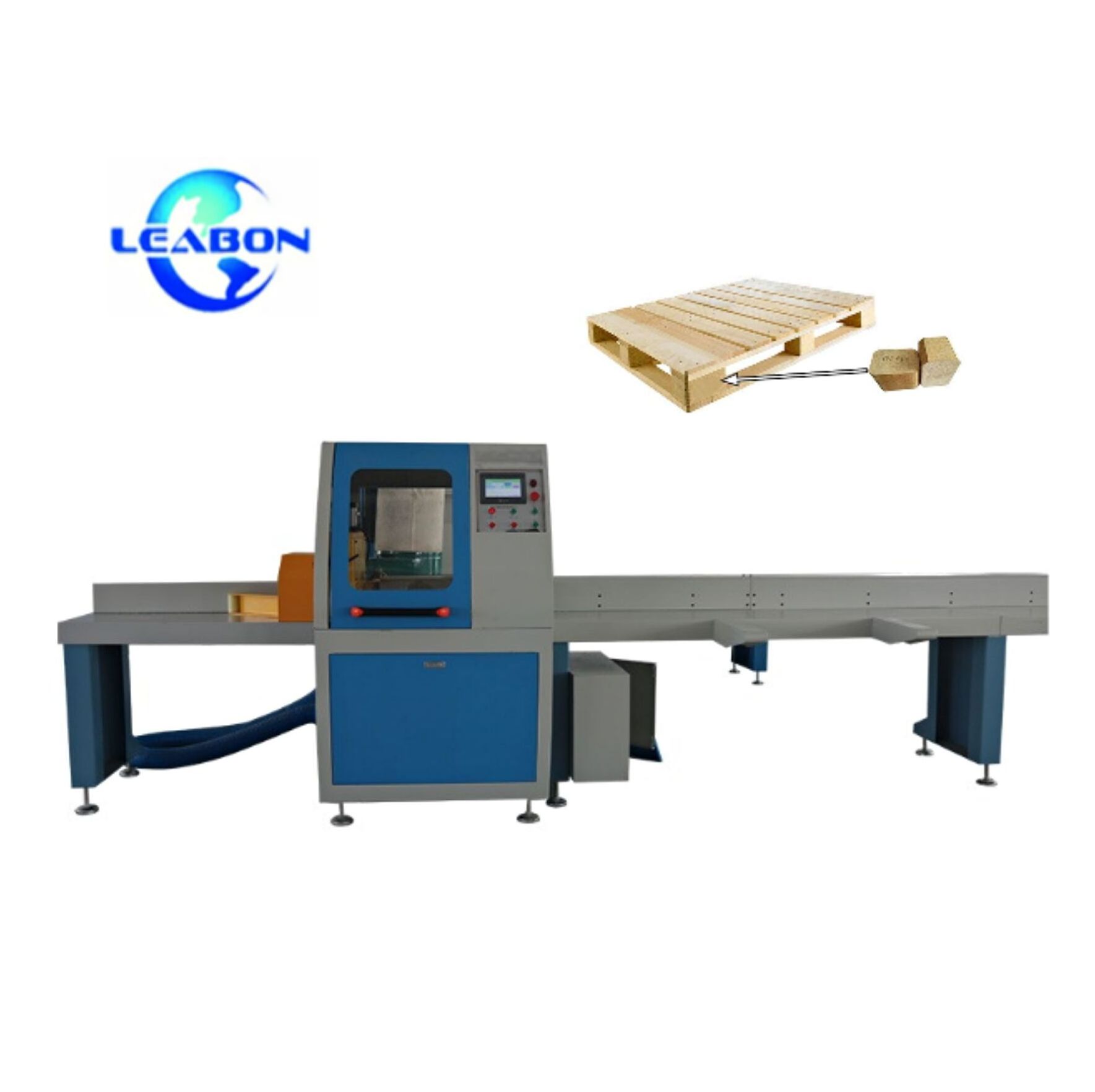

High Speed Horizontal Timber Automatic Wood Cut off Saw Wood Cross Cutting Saw Machine
This is an automatic wood cut off saw,it can cutting wood panels ,timber ,wood board etc ,cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.It contains cutting program, input parameters from the PLC touch screen,Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
Specification
This is automatic cross cut saw, cutting continuously and automatically with high precision and high
efficiency. Have program, can pre-set and edit and save cutting plans.
|
Saw blade diameter
|
|
|
450mm
|
|
|
|
|||||
|
Feeding table length
|
|
|
6m
|
|
|
|
|||||
|
Out-feeding table length
|
|
|
1.2m
|
|
|
|
|||||
|
Cutting thickness
|
|
|
10-120mm
|
|
|
|
|||||
|
Cutting width
|
|
|
30- 200mm
|
|
|
|
|||||
|
Cutting section thickness *width
|
|
|
Max. 120*150mm Max. 100*200mm
|
|
|
|
|||||
|
Feeding speed
|
|
|
5-30m/min
|
|
|
|
|||||
|
Cutting speed
|
|
|
40pcs/min
|
|
|
|
|||||
|
Saw spindle diameter
|
|
|
30mm
|
|
|
|
|||||
|
Cutter spindle rotation speed
|
|
|
3000rpm
|
|
|
|
|||||
|
Servo drive motor power
|
|
|
0.75kw
|
|
|
|
|||||
|
Cutting motor power
|
|
|
7.5kw
|
|
|
|
|||||
Detailed Images
Feature:
1. For wood cutting, or automatic nailing and cutting
2.Can cut off raw materials 1m, 2m, 4m, 6m
3.Just enter the program to automatically cut and feed. Or automatic nailing, automatic truncation
4. Finished products are transported to the side by conveyor.
1. For wood cutting, or automatic nailing and cutting
2.Can cut off raw materials 1m, 2m, 4m, 6m
3.Just enter the program to automatically cut and feed. Or automatic nailing, automatic truncation
4. Finished products are transported to the side by conveyor.
Control cabinet
PLC and touch screen,can switch between differnent language
PLC and touch screen,can switch between differnent language
Program
Measure the raw material length,then can input 8 different size and quantity,machine can work automatically
Measure the raw material length,then can input 8 different size and quantity,machine can work automatically
Pusher
Servo feeding pusher,material aluminium alloy,reliable and long life
Servo feeding pusher,material aluminium alloy,reliable and long life
Feeding table
2m.4m.6m length for your choice,slanted table thus wood can align to the fence more easier
2m.4m.6m length for your choice,slanted table thus wood can align to the fence more easier
Final Product
