- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RT6(8+4)
-
Dimension:
-
72x29x35 / 80x60x80
-
Power Supply Mode:
-
Other
-
Storage:
-
/
-
SNR:
-
105dB
-
Output Power:
-
600W / 750W
-
Connection Type:
-
Other
-
Format:
-
/
-
Brand:
-
ARE Audio
-
Type:
-

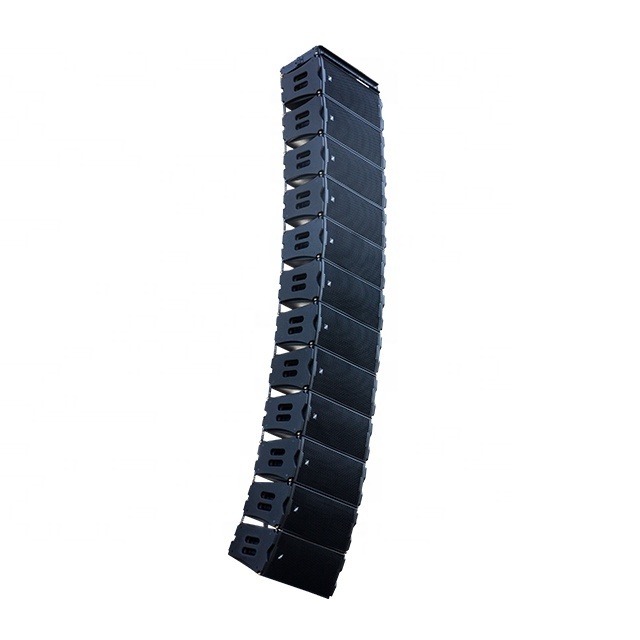

Passive Line Array Sound System
-
Model:
-
L20P&BS21
-
DC-Impedance:
-
19.2Ohm / 6.4Ohm
-
Power (W):
-
600W / 750W
-
Frequency Range (Hz/-10db):
-
70-20k / 30-90
-
Sensitivity (dB/m.w):
-
101 / 101
-
Max SPL (dB):
-
135-147 / 135
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ARE Audio
-
Model Number:
-
RT6(8+4)
-
Dimension:
-
72x29x35 / 80x60x80
-
Power Supply Mode:
-
Other
-
Storage:
-
/
-
SNR:
-
105dB
-
Output Power:
-
600W / 750W
-
Connection Type:
-
Other
-
Format:
-
/
-
Brand:
-
ARE Audio
-
Type:
-
Passive Line Array Sound System
-
Model:
-
L20P&BS21
-
DC-Impedance:
-
19.2Ohm / 6.4Ohm
-
Power (W):
-
600W / 750W
-
Frequency Range (Hz/-10db):
-
70-20k / 30-90
-
Sensitivity (dB/m.w):
-
101 / 101
-
Max SPL (dB):
-
135-147 / 135
Product Paramenters
|
|
L20P
|
BS21
|
|
Driver (Inch)
|
2*10"LF+2*2"HF
|
1x21"LF
|
|
DC-Impedance
|
19.2Ohm
|
6.4Ohm
|
|
Frequency Range (Hz/-10db）
|
70-20k Hz
|
30-90 Hz
|
|
Power (W)
|
600W
|
750W
|
|
Peak Power (W)
|
2400W
|
3000W
|
|
Sensitivity (dB/m.w)
|
101dB
|
101dB
|
|
Max SPL (dB)
|
135-147dB
|
135dB
|
|
Coverage (H*V)
|
110º horizontal, 15º vertical
|
/
|
|
Size (cm)
|
72x29x35
|
80x60x80
|
|
N.W. (kg)
|
26
|
60
|
|
|
D6D
|
|
Minimum Load Impedance (Ω)/DCRmin
|
4.8/4.8
|
|
Max Output (W/230v/40ms)
|
4000/4000
|
|
THD (8Ω/100W/100Hz)
|
<0.03%
|
|
Frequency Response (8Ω/100W/±0.5dB)
|
10Hz-22kHz
|
|
SNR (8Ω/100Hz/A-weighting)
|
105dB
|
|
Damping Factor (8Ω/300W/100Hz)
|
>1000
|
|
Slew Rate (8Ω/300W/100Hz)
|
>100V/us
|
|
Electric Energy Efficiency (8Ω/300W/100Hz)
|
>85%
|
|
Idle Power (230V)
|
20w
|
|
Power Factor (1000W/230V/50Hz)
|
>0.85
|
|
Operation Range
|
350kHz
|
Project Cases
Wiring Diagram
About Us
FAQ
Q: Do you have production factory?
A: Yes, we have our own workshop and assemble the speakers ourselves. All productsproduced by us are high quality and durable use.
Q:
Where is your factory located?
A:
Our factory is in Foshan, shunde district.
Q:
How long is the warranty of your products?
A:
We offer 3 years warranty service for these products.
Q:
What's your advantage? Why we choose you?
A:
We are professional manufacturer and we have the most professional techniques and team. We can answer your professional questions about speakers, please don't hesitate to send us an inquiry for any other questions.
Q:
What's shipping way?
A:
For the sample order, we will deliver by Express, like DHL, Fedex, UPS, TNT and EMS. For batch order, it is more economical by sea.
