Quick Details
-
Brand Name:
-
FENGYU
-
Model Number:
-
FUF-100
-
Pipe diameter:
-
DN15 ~ DN6000
-
Installation type:
-
Wall mounted,INSERT-TYPE mounted, din rail mounted
-
Mounted Display:
-
LCD
-
Power supply:
-
DC8~36V or AC85~264V (optional)
-
Data interface:
-
RS485 serial interface, support Modbus
-
Modbus Repeatability:
-
±0.2%
-
Flow Rate:
-
0~±7m/s
-
Product Name:
-
Modular Pipe Type Gas Ultrasonic Flow Meter
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
FENGYU
-
Model Number:
-
FUF-100
-
Pipe diameter:
-
DN15 ~ DN6000
-
Installation type:
-
Wall mounted,INSERT-TYPE mounted, din rail mounted
-
Mounted Display:
-
LCD
-
Power supply:
-
DC8~36V or AC85~264V (optional)
-
Data interface:
-
RS485 serial interface, support Modbus
-
Modbus Repeatability:
-
±0.2%
-
Flow Rate:
-
0~±7m/s
-
Product Name:
-
Modular Pipe Type Gas Ultrasonic Flow Meter

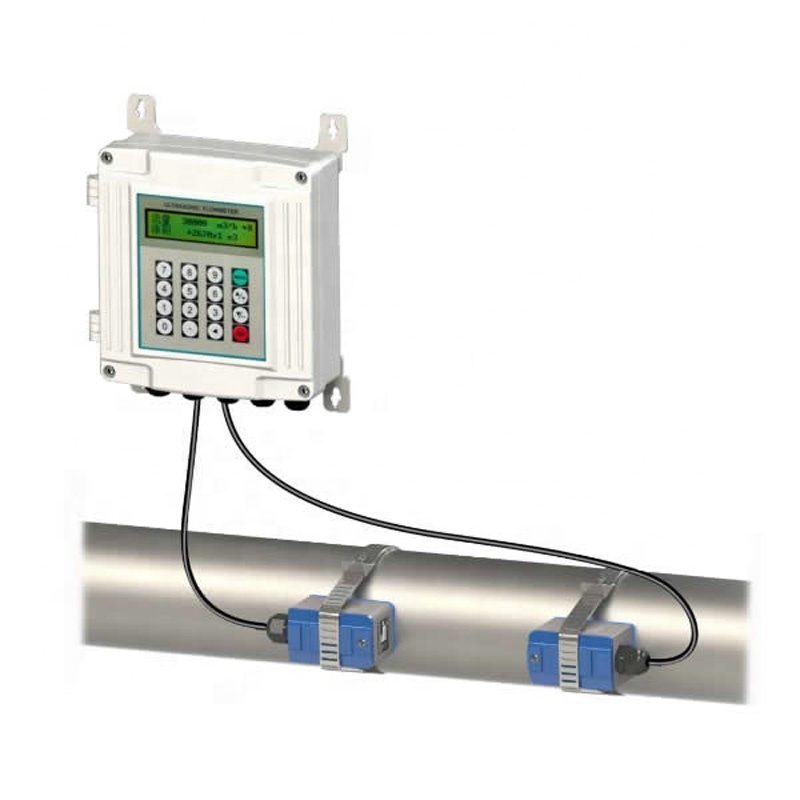

Clamp-on flow meter sensor portable ultrasonic flowmeter for arduino
FUF-100 series U ltrasonic Flowmeter could be applied to a variety of liquid applications including ultrapure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, etc.
| Product Description | |
| Product Name |
Modular Pipe Type Gas Ultrasonic Flow Meter. |
| Measuring principle |
Transit time difference |
| Pipe size | DN15-DN6000 |
| Pipe material | Cast iron, stainless steel, dutile iron, copper, PVC, aluminum, asbestos, fiberglass |
| Liner material |
Tar eposy, rubber, mortar, polypropylene, polystyrol, polystyrene, polyester, ebonite, polyethylene, teflon |
| Display | LCD |
| Totalizer | 7 digits, forward, reverse & net values |
| Flow rate | 5 digits with decimal point |
| Unit | m³, US gallon, imperial gallon, cubic feet, US barrels |
| Time Unit | Second, minute, hour, day |
| Other parameter | Velocity, time, date, signal quality |
| Accurancy | ± 1% to ± 2% of rate (0.5~30m/s) |
| 0.5% of rate (online calibration) | |
| Repeatability | ± 0.2% |
| Keypad | 16 key with tactile action |
| Response | Less than 1 second |
| Flow velocity | 0.01 to ± 32m/s |
| Resolution | 0.0001m/s |
| Ambient condition | |
| Ambient tempetature | -30~80℃ |
| Ambient humidity | 85%RH |
| Mounting | Remote wall-mounted |
| Max. Cable length | 150m |
How to Place an Order?
| Requirements | ||
| 1 | Product Size(Specs) | |
| 2 | Medium | |
| 3 | Work Temperature | |
| 4 | Power Supply | |
| 5 | Signal Output | |
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
