Quick Details
-
Model Number:
-
XH81
-
Brand Name:
-
LEEBOO
-
Standard or Nonstandard:
-
Standard
-
Name:
-
Rubber Sewage Check Valve
-
Product name:
-
Hot Sell Products Silicon Rubber Sewage Check Duckbill Valve
-
Key words:
-
duckbill silicon check valves
-
material:
-
carbon steel ,Q235,Stainless steel
-
rubber material:
-
EPDM,NBR,CR
-
Connection:
-
Clamp
-
Valve step:
-
15-400
-
Medium:
-
water, flood, sewage, acid, alkali
Quick Details
-
Port Size:
-
1/2"-72"
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Model Number:
-
XH81
-
Brand Name:
-
LEEBOO
-
Standard or Nonstandard:
-
Standard
-
Name:
-
Rubber Sewage Check Valve
-
Product name:
-
Hot Sell Products Silicon Rubber Sewage Check Duckbill Valve
-
Key words:
-
duckbill silicon check valves
-
material:
-
carbon steel ,Q235,Stainless steel
-
rubber material:
-
EPDM,NBR,CR
-
Connection:
-
Clamp
-
Valve step:
-
15-400
-
Medium:
-
water, flood, sewage, acid, alkali
Sewage water treatment EPDM adjustable rubber check valve
|
Product Brand: |
LEEBOO |
Medium: |
water, oil, acid, alkali, slurry etc. |
|
product model: |
JXH DN100-DN600 |
Temperature: |
-20℃~400℃ |
|
Application: |
Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, fire, electricity, etc |
||
|
Product features: |
Professional Manufacturers Check Sewage Pollution Duckbill Valve Prices realizes the effects about drainage pipeline outflow with forward direction and non-return with reverse direction according to duckbill special design, which simplify the installation, usage and maintenance of drainage pipeline. Professional Manufacturers Check Sewage Pollution Duckbill Valve Prices plays an important role in the process of the development of the check valve industry. |
||
|
more information: |
http://www.xlpipe.com http://www.xinligd.com http://www.xinlipipe.com |
||
Because of the good comprehensive performance of Professional Manufacturers Check Sewage Pollution Duckbill Valve Prices , it is widely used in chemical engineering, construction, water supply, drainage, oil, heavy industry, freezing, sanitation, fire, electricity and other basic engineering, especially for pipeline with large vibration, hot and cold changes frequently.
|
Matching Pipeline Diameter |
Valve Step(A) |
Pipeline Touching(B>) |
|
1/2″~3/4″ |
15 |
15 |
|
1″~1-1/4″ |
20 |
20 |
|
1-1/2~2-1/2 |
25 |
25 |
|
3″ |
40 |
40 |
|
4″ |
50 |
50 |
|
6″ |
50 |
50 |
|
8″ |
50 |
50 |
|
10″ |
50 |
50 |
|
12″~14″ |
100 |
100 |
|
16″~20″ |
150 |
150 |
|
24″~36″ |
200 |
200 |
|
42″ |
250 |
250 |
|
48″~60″ |
300 |
300 |
|
72″ |
400 |
400 |
|
Note:DN800~DN1800(32″~72″) double hoops |
||

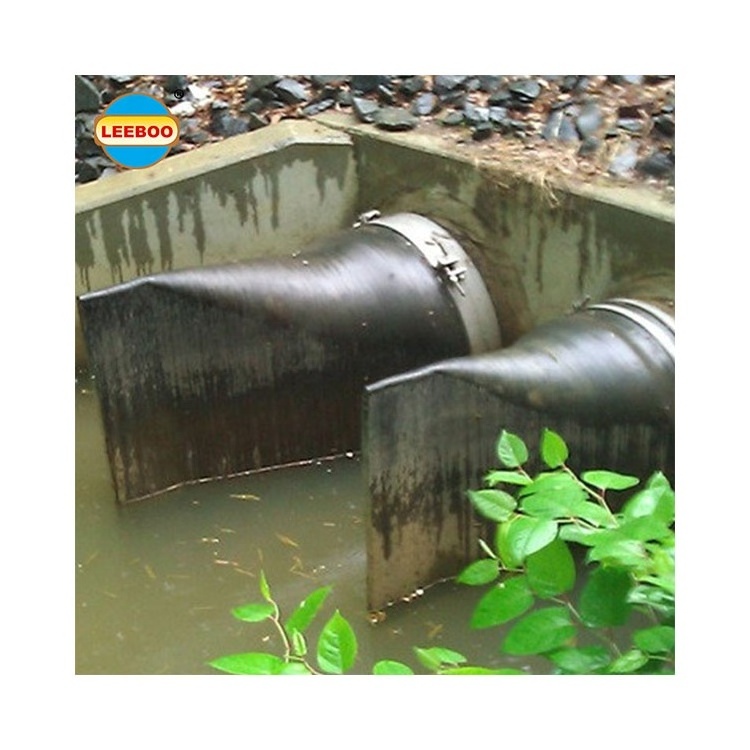

Rubber duckbill expansion valve for sewage is made of rubber body and SS clamp. The former is main working part, the latter is fixed on the pipeline which has effecs on fixed connection. It has reasonable structure design and it's easy to use. Rubber duckbill expansion valve for sewage body is made of high quality material, which has good effecs on open and close. Certainly it's closed under natural state. Besides, the rubber material can be exchanged according to drainage corrosivity resistance strength. SS clamp is the main connection body of duckbil check valve. The raw material includes SS304 or SS316 etc. which has good tensile resistance. Simple design and affordable is the best choice as connecting parts.
