Quick Details
-
Brand Name:
-
Formike
-
Product Name:
-
Mini OLED Display 64x32 LCD 0.49inch OLED Module
-
Resolution:
-
64x32
-
Outline dimession:
-
14.50 x 21.60 x 1.20 mm
-
Active Area:
-
11.18 x5.58 mm
-
Viewing Angle:
-
Fulling Angle
-
Display mode:
-
Passive Matrix OLED
-
Interface:
-
I2C
-
Color:
-
White Words
-
Contrast Ratio:
-
10000:1
-
Driver IC:
-
SH1106
Quick Details
-
Type:
-
PMOLED
-
Display Size:
-
0.49 Inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Formike
-
Product Name:
-
Mini OLED Display 64x32 LCD 0.49inch OLED Module
-
Resolution:
-
64x32
-
Outline dimession:
-
14.50 x 21.60 x 1.20 mm
-
Active Area:
-
11.18 x5.58 mm
-
Viewing Angle:
-
Fulling Angle
-
Display mode:
-
Passive Matrix OLED
-
Interface:
-
I2C
-
Color:
-
White Words
-
Contrast Ratio:
-
10000:1
-
Driver IC:
-
SH1106

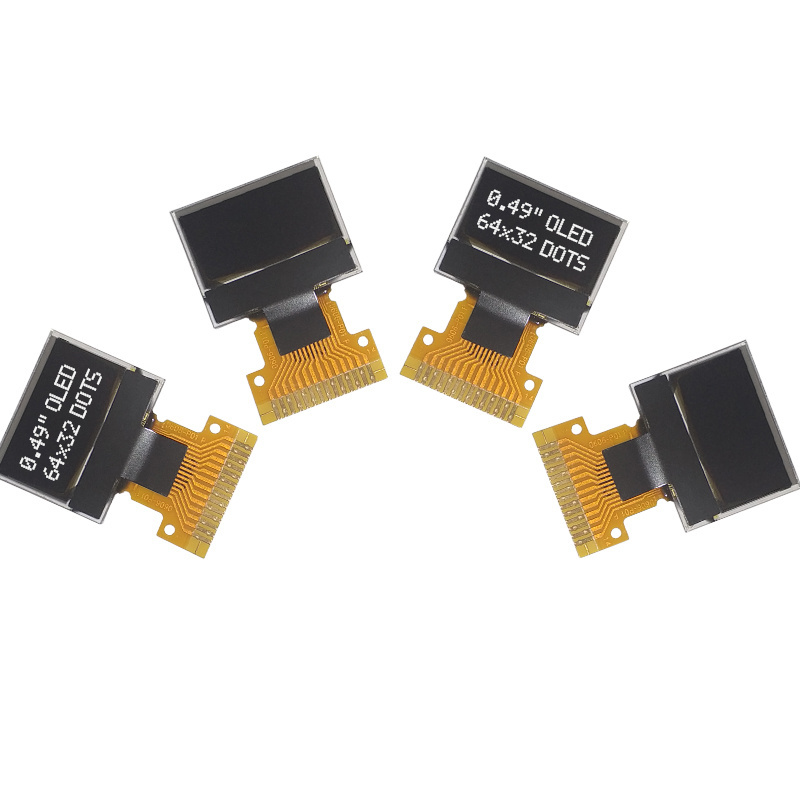

Mini OLED Display 64x32 LCD 0.49inch OLED Module
| Name | Mini OLED Display 64x32 LCD 0.49inch OLED Module | ||
|
Module Size |
0.49 inch OLED Module |
Dox Matrix |
64x32 Resolution |
|
Display Color |
Monochrome OLED |
Dark Room Contrast Ratio |
10000:1 |
|
Outline Dimension |
14.50 x 21.60 x 1.20mm |
Active Area(HxV mm) |
11.18 x 5.58mm |
|
Response Time |
10 μs |
Interface |
I2C, 14pin |
|
Drive Duty |
1/32 Duty |
Brightness |
200cd/m2 |
|
IC Driver |
SH1106 |
Supply Voltage |
24mA,3.0V |
|
Viewing Angle |
Free |
Dot Pitch |
0.175x0.175 (mm) |
|
Operation Temperature |
-40℃~70℃ |
Storage Temperature |
-40℃~85℃ |
* KWH0049UL01 is a passive matrix Small OLED Display.
* It is composed of a OLED panel, driver IC, FPC.
* It is 64x32 Resolution OLED module.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
