♦ Material: Q235
♦
Size:48.3*48.3mm,48.3*60.3mm
♦
Surface finish: electro galvanized
♦
Standard: BS1139, EN74,
♦

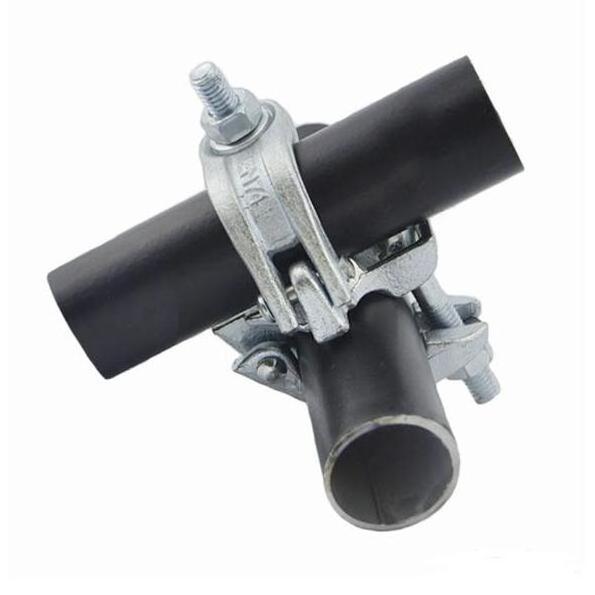

Types: British swivel coupler, British fixed coupler, Board Retaining coupler, Putlog coupler, Sleeve coupler, Inner joint pin, 110° double coupler, 110° swivel coupler, 90° swivel coupler,90° double coupler
♦
Packing: 25pcs/Woven bags, 50bags/pallets or as customer required.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WUFANG
-
Product name:
-
scaffolding clamps
-
Material:
-
Q235 Steel
-
Surface treatment:
-
Electro- Galvanized
-
Standard:
-
BS-1139/ EN-74
-
Type:
-
pressed and drop forged
-
Diameter:
-
48.3*48.3mm
-
Packing:
-
wooden pallet, steel pallet
-
Application:
-
Building
-
Color:
-
Silver, yellow
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WUFANG
-
Product name:
-
scaffolding clamps
-
Material:
-
Q235 Steel
-
Surface treatment:
-
Electro- Galvanized
-
Standard:
-
BS-1139/ EN-74
-
Type:
-
pressed and drop forged
-
Diameter:
-
48.3*48.3mm
-
Packing:
-
wooden pallet, steel pallet
-
Application:
-
Building
-
Color:
-
Silver, yellow
Product Paramenters
1. Pressed scaffolding clamp
|
Item
|
Product Name
|
Type
|
Thickness
|
Outer Diameter
|
U.W
|
PC of 20`GP
|
|
1
|
Double Coupler
|
Pressed
|
4.75mm
|
48.3mm
|
0.82kg
|
25000
|
|
2
|
Swivel Coupler
|
Pressed
|
4.5*4.75mm
|
48.3mm
|
0.99
|
23500
|
|
3
|
Sleeve Coupler
|
Pressed
|
3.5mm
|
48.3mm
|
1.0kg
|
20736
|
|
4
|
Inner Joint Pin
|
Pressed
|
4.5mm
|
48.3mm
|
0.7kg
|
35000
|
|
5
|
Half Coupler
|
Pressed
|
4.75mm
|
48.3mm
|
0.45
|
49000
|
|
6
|
Board Retaining
|
Pressed
|
4.75mm
|
48.3mm
|
0.56kg
|
35000
|
|
7
|
Putlog Coupler
|
Pressed
|
4.75mm
|
48.3mm
|
0.57kg
|
35000
|
2. Drop forged scaffolding clamp
|
Item
|
Product Name
|
Type
|
Thickness
|
Outer Diameter
|
U.W
|
PC of 20'GP
|
|
1
|
Double Coupler
|
Drop Forged
|
|
48.3mm
|
1.0-0.98kg
|
24000
|
|
2
|
Swivel Coupler
|
Drop Forged
|
|
48.3mm
|
1.12kg
|
21000
|
|
3
|
Sleeve Coupler
|
Drop Forged
|
3.5mm
|
48.3mm
|
0.98--1.0kg
|
21000
|
|
4
|
Inner Joint Pin
|
Drop Forged
|
|
48.3mm
|
1.05kg
|
24000
|
|
5
|
Board Retaining
|
Drop Forged
|
4.75mm
|
48.3mm
|
0.61kg
|
35000
|
|
6
|
Girder Coupler
|
Drop Forged
|
11.5mm
|
48.3mm
|
1.52
|
15000
|
|
7
|
Putlog Coupler
|
Drop Forged
|
4.75mm
|
48.3mm
|
0.61kg
|
35000
|
Product Description
♦ The tube and coupler scaffolding system is the best solution for construction or maintenance works. ♦ economic convenience ♦ safety and quality
Applications
♦ Scaffolding coupler is used to assemble tube-and coupler scaffolding system.
♦ Restoration of buildings.
♦ maintenance of particularly complex or extremely deteriorated architectural works.
