Quick Details
-
Machine Type:
-
Milling Machine
-
Type:
-
Chuck
-
Product name:
-
milling chuck arbor
-
Usage:
-
tool holding
-
Payment:
-
T/T
-
Material:
-
alloy steel
-
Shipment:
-
by sea
-
Machine available:
-
Milling Machine Lathe
-
shank:
-
R8
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
1
-
Brand Name:
-
STC
-
Machine Type:
-
Milling Machine
-
Type:
-
Chuck
-
Product name:
-
milling chuck arbor
-
Usage:
-
tool holding
-
Payment:
-
T/T
-
Material:
-
alloy steel
-
Shipment:
-
by sea
-
Machine available:
-
Milling Machine Lathe
-
shank:
-
R8

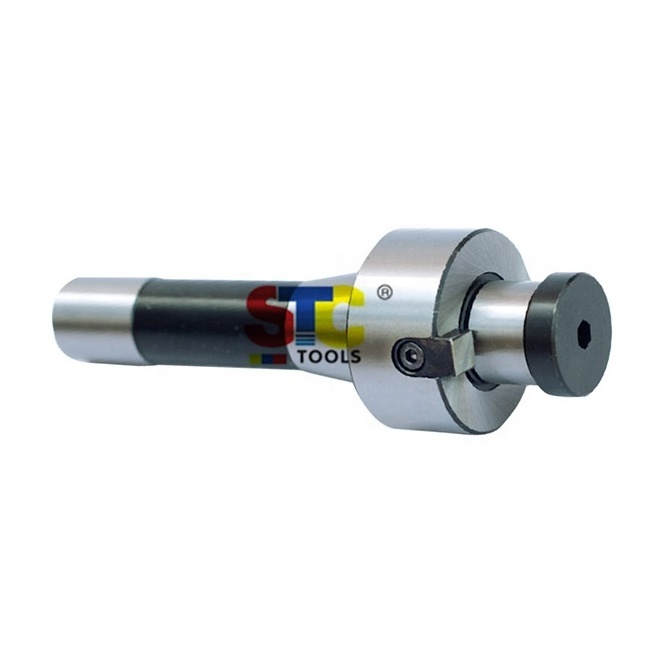

FMB face mill arbor milling cutter tool holder R8 shank combo combi shell end mill arbors
- Made of alloy forged steel
- Durable service life.
- Hardened and ground throughhout to assure maximum concentricity.
- Hardened to RC 56-60 .
|
Model
|
d(mm)
|
W(mm)
|
L(mm)
|
Wt(kg)
|
Model
|
d(in)
|
W(mm)
|
L(mm)
|
Wt(kg)
|
|
SDR816
|
16
|
8
|
148
|
0.35
|
SDR81/2
|
1/2
|
6.35
|
150
|
0.47
|
|
SDR822
|
22
|
10
|
154
|
0.70
|
SDR83/4
|
3/4
|
7.94
|
154
|
0.62
|
|
SDR827
|
27
|
12
|
159
|
0.86
|
SDR87/8
|
7/8
|
8.7
|
155
|
0.72
|
|
SDR832
|
32
|
14
|
165
|
1.16
|
SDR81
|
1
|
9.53
|
155
|
0.85
|
|
SDR840
|
40
|
16
|
170
|
1.466
|
SDR81-1/4
|
1-1/4
|
12.7
|
156
|
1.15
|
|
SDR81-1/2
|
1-1/2
|
15.88
|
163
|
1.36
|
