1. Matched any tractor .
2.Powered by PTO driven with hydraulic pump.
3.3-point hitched backhoe,steady structure
4.Oil tank ,oil show, gas-permeable cap
5.claw on boom, handed control valve
6.luxury spring seat and safety belt.
7.Optional buckets
8.Work independently, only need vehicle to tow to the working destination
9.Can be used for garden digging and construction digging
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
530 KG
-
Product name:
-

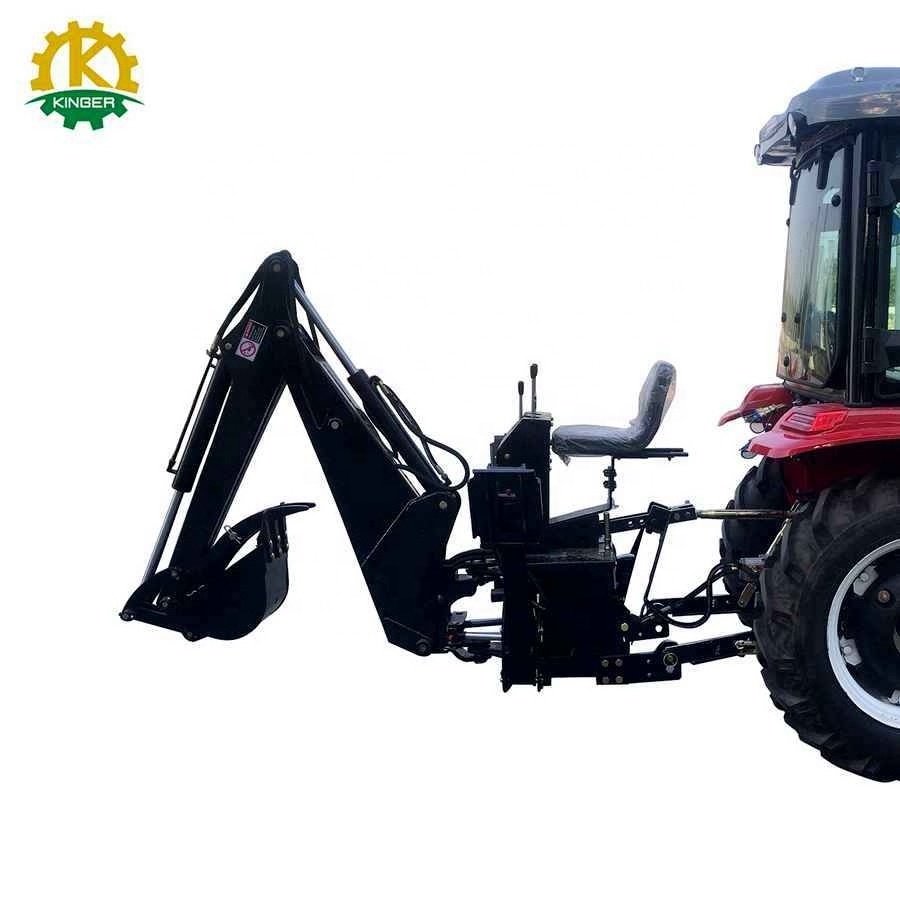

Tractor 3 Point Mounted Mini Backhoe Loader For Sale
-
Model:
-
LW4/LW5/LW-6/LW-7/LW-8/LW-9/LW10-/LW12
-
Bucket Capacity:
-
0.03-0.07 m3
-
Engine:
-
tractor PTO driven with hydraulic pump
-
Oil Tank:
-
Yes
-
Bucket Width:
-
300-550mm
-
Max.Digging Depth:
-
1850-3500 mm
-
Swing Angle:
-
140-180°
-
COLOR:
-
Black / Red/ Blue/ other
-
OEM service:
-
Yes
Quick Details
-
Application:
-
Digging
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kinger
-
Weight:
-
530 KG
-
Product name:
-
Tractor 3 Point Mounted Mini Backhoe Loader For Sale
-
Model:
-
LW4/LW5/LW-6/LW-7/LW-8/LW-9/LW10-/LW12
-
Bucket Capacity:
-
0.03-0.07 m3
-
Engine:
-
tractor PTO driven with hydraulic pump
-
Oil Tank:
-
Yes
-
Bucket Width:
-
300-550mm
-
Max.Digging Depth:
-
1850-3500 mm
-
Swing Angle:
-
140-180°
-
COLOR:
-
Black / Red/ Blue/ other
-
OEM service:
-
Yes
Product Description
Feature of farming used backhoe:
Specification
|
Model
|
LW-5
|
LW-6
|
LW-7
|
LW-8
|
LW-9
|
LW-10
|
LW-12
|
|
Fitting power
|
15-25 hp
|
16-35 hp
|
25-75 hp
|
45-85hp
|
50-100hp
|
70—125hp
|
80-150hp
|
|
Max. digging depth
|
1650 mm
|
1850 mm
|
2150 mm
|
2640 mm
|
2900 mm
|
3000 mm
|
3500 mm
|
|
Digging depth Flat bottom
|
1450 mm
|
1600 mm
|
2000 mm
|
2500 mm
|
2760 mm
|
2800 mm
|
3350 mm
|
|
Max. digging height
|
2100 mm
|
2500 mm
|
3400 mm
|
3510 mm
|
3900 mm
|
4000 mm
|
4300mm
|
|
Loading height
|
1300 mm
|
1400 mm
|
1760 mm
|
2000 mm
|
2362 mm
|
2337 mm
|
2700mm
|
|
Unloading height
|
1530 mm
|
1733 mm
|
1878 mm
|
1952 mm
|
2413 mm
|
2540 mm
|
2770mm
|
|
Max. digging radius
|
2300 mm
|
2800 mm
|
3360 mm
|
3930 mm
|
3977 mm
|
3886 mm
|
4300mm
|
|
Bucket rofation (°)
|
160°
|
160°
|
160°
|
160°
|
150°
|
150°
|
172°
|
|
Swing angle (°)
|
140°
|
140°
|
140°
|
140°
|
160°
|
160°
|
180°
|
|
Valve standard press
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
|
Bucket width
|
260 mm
|
300 mm
|
400 mm
|
450 mm
|
480 mm
|
500 mm
|
550 mm
|
|
Bucket volume
|
0.028 m3
|
0.03 m3
|
0.036 m3
|
0.048 m3
|
0.054 m3
|
0.06 m3
|
0.07 m3
|
|
Weight
|
360 kg
|
530 kg
|
670 kg
|
760 kg
|
820 kg
|
870 kg
|
960 kg
|
Details Images
Backhoe Part 1:
Powered by PTO driven with hydraulic pump.
Backhoe Part 2:
hand control valve & hand control levers.
There are detailed operation remark for these hand control levers.
Backhoe Part 3:
hydraulic oil tank & oil gauge
Backhoe Part 4:
we can equip the thumb (grabber claw) on arm.
Backhoe Part 5:
wider bucket as options.
Production
Packing & Delivery
By iron crate package + anti dust file for LCL shipping
Or PLY wood case
Certifications
Our Location
FAQ
Q1:Why choose Kinger?
A1: * Kinger has 8 years experience in manufacturing argriculture implements,more specialized in bulk production;
*More professional team in purchasing,producing,sales and technology,with excellent equipments;
*Have fast after-sales service ;
*More innovative, 3 new products annually .
Q2: What's the Min. order quantity?
A2: we accept 1set sample for testing.
Now our agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample as test
Q3:What is your payment term?
A3: By bank transfer or Alibaba trade assurance(credit card is available).
Q4: How to order?
A4: * first pls tell us which model do you need? or your working requirements?
* we will supply the quotation list and solution;
* we send proforma invoice or start order from Alibaba for payment;
* we will arrange the production and shipment after confirma payment.
Q5: warranty & sales service:
A5: we supply 1 year warranty and machine life sales serive.
If any problems during using, please freely let us know, thanks.
A1: * Kinger has 8 years experience in manufacturing argriculture implements,more specialized in bulk production;
*More professional team in purchasing,producing,sales and technology,with excellent equipments;
*Have fast after-sales service ;
*More innovative, 3 new products annually .
Q2: What's the Min. order quantity?
A2: we accept 1set sample for testing.
Now our agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample as test
Q3:What is your payment term?
A3: By bank transfer or Alibaba trade assurance(credit card is available).
Q4: How to order?
A4: * first pls tell us which model do you need? or your working requirements?
* we will supply the quotation list and solution;
* we send proforma invoice or start order from Alibaba for payment;
* we will arrange the production and shipment after confirma payment.
Q5: warranty & sales service:
A5: we supply 1 year warranty and machine life sales serive.
If any problems during using, please freely let us know, thanks.
