Quick Details
-
Max. Turned Length (mm):
-
350 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
luzhong
-
Model Number:
-
CZ1440G/1
-
Weight (KG):
-
600 KG
-
Marketing Type:
-
New Product
-
Name:
-

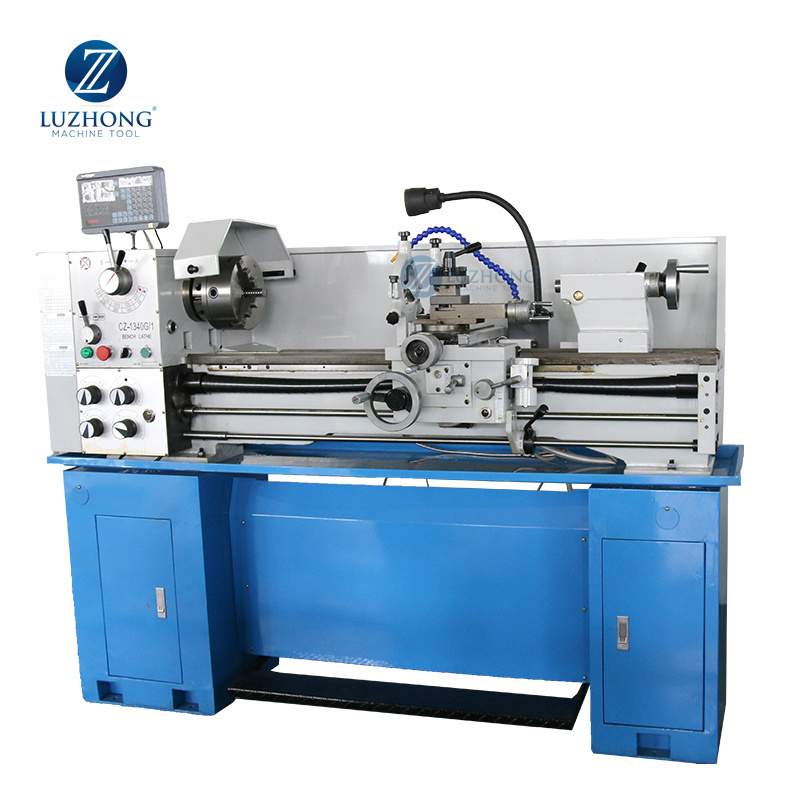

small metal lathes for sale CZ1440G/1 mini bench metal lathe machine
-
Keyword:
-
Lathe CZ1440G/1
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE ISO
Quick Details
-
Max. Length of Workpiece (mm):
-
350 mm
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
20 m'm
-
Max. Turned Length (mm):
-
350 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
luzhong
-
Model Number:
-
CZ1440G/1
-
Weight (KG):
-
600 KG
-
Marketing Type:
-
New Product
-
Name:
-
small metal lathes for sale CZ1440G/1 mini bench metal lathe machine
-
Keyword:
-
Lathe CZ1440G/1
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE ISO
Product Description
Product description:
Supersonic frequency hardened bed ways Precision roller bearing for spindle High quality steel,ground and hardened gear inside headstock Easy and fast operating gear box Enough strong power motor ASA D4 camlock spindle nose Various threads cutting functions available
Supersonic frequency hardened bed ways Precision roller bearing for spindle High quality steel,ground and hardened gear inside headstock Easy and fast operating gear box Enough strong power motor ASA D4 camlock spindle nose Various threads cutting functions available
|
Specifications
|
|
CZ1440G/1
|
|
|
|
Swing over bed
|
mm
|
355
|
|
|
|
Swing over carriage
|
mm
|
220
|
|
|
|
Swing over gap
|
mm
|
500
|
|
|
|
Width of bed-way
|
mm
|
186
|
|
|
|
Distance between centers
|
mm
|
1000
|
|
|
|
Spindle taper
|
|
MT5
|
|
|
|
Spindle bore
|
mm
|
38
|
51
|
|
|
Step of speed
|
|
8
|
8
|
|
|
Range of speed
|
rpm
|
70-2000
|
84-1850
|
|
|
Head nose
|
|
D1-4
|
D5 with D5’ chuck
|
|
|
Metric thread
|
mm
|
26 kinds(0.4-7)
|
|
|
|
Inch thread
|
T.P.I
|
34 kinds(4-56)
|
|
|
|
Module thread
|
M.P
|
16 kinds(0.35-5)
|
|
|
|
Diametral thread
|
D.P
|
36 kinds(6-104)
|
|
|
|
Longitudinal feeds
|
mm/r
|
0.052-1.392(0.002’’-0.0548’’)
|
0.091-2.533(0.0036’’-0.1005’’)
|
|
|
Cross feeds
|
mm/r
|
0.014-0.38(0.00055’’-0.015’’)
|
0.025-0.69(0.0012’’-0.0345)
|
|
|
Diameter of lead screw
|
mm
|
22
|
|
|
|
Pitch of lead screw
|
|
3mm or 8 T.P.I
|
|
|
|
Saddle travel
|
mm
|
1000
|
|
|
|
Cross travel
|
mm
|
170
|
160
|
|
|
Compound travel
|
mm
|
74
|
70
|
|
|
Barrel travel
|
mm
|
95
|
|
|
|
Barrel diameter
|
mm
|
32
|
|
|
|
Taper of center
|
mm
|
MT3
|
|
|
|
Motor power
|
Kw
|
1.5(2HP)
|
|
|
|
Coolant motor
|
Kw
|
0.04(0.055HP)
|
|
|
|
Machine(L×W×H)
|
mm
|
1920x760x760
|
|
|
|
Stand (left)(L×W×H)
|
mm
|
440x410x700
|
|
|
|
Stand (right)(L×W×H)
|
mm
|
370x410x700
|
|
|
|
Machine(N.W/G.W)
|
Kg
|
505/565
|
|
|
|
Stand(N.W/G.W)
|
Kg
|
70/75
|
|
|
