data 2.4ghz wireless transmitter and receiver serial micro device modul price ble 5.1 bluetooth nrf52811 module

data 2.4ghz wireless transmitter and receiver serial micro device modul price ble 5.1 bluetooth nrf52811 module

FOB Reference Price: Get Latest Price

≥3 Pieces

US $2.29

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Minew

Certification:: BQB FCC CE IC RCM TELEC WPC RoHS&Reach

Dimension:: 20x12x2mm

Antenna:: U.FL/IPEX

Transmission Range:: 10M-60M

Bluetooth version:: 5.0

Port:: Shenzhen

Sensitivity:: -96dBm

GPIO:: 32

Transmission Rate:: -40~+4dBm

Quick Details

Chipset:: nRF52811, nRF52832/nRF52810/nRF52811

Application:: Smart home

Model Number:: MS50SFB3

Place of Origin:: Guangdong, China

Brand Name:: Minew

Certification:: BQB FCC CE IC RCM TELEC WPC RoHS&Reach

Dimension:: 20x12x2mm

Antenna:: U.FL/IPEX

Transmission Range:: 10M-60M

Bluetooth version:: 5.0

Port:: Shenzhen

Sensitivity:: -96dBm

GPIO:: 32

Transmission Rate:: -40~+4dBm

Certification

Minew module can save your money up to US$8000

Certification is really important to your project. If there have only one transmitter and antenna in your product, the product that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000

Product Description

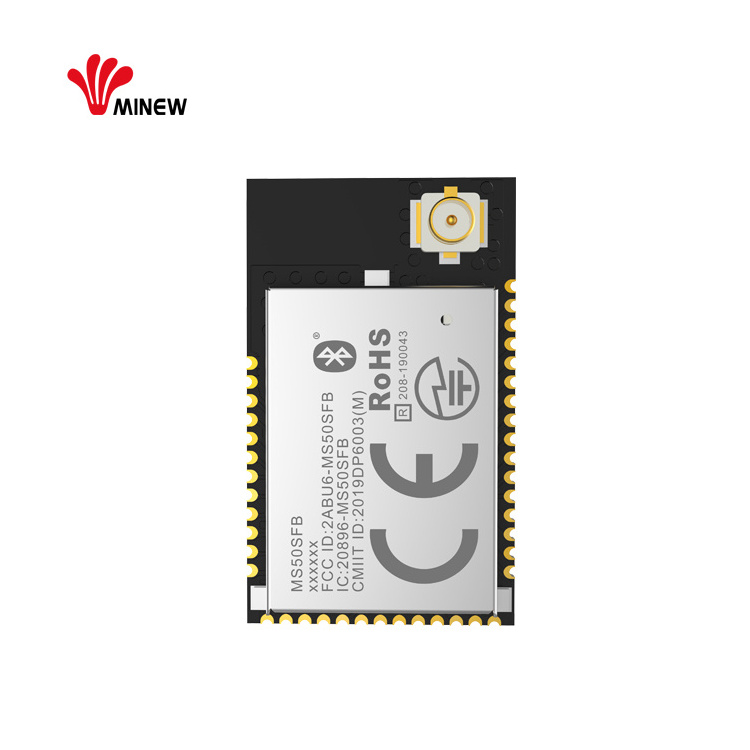

For nRF52811 Module is U.FL antenna in default.

nRF52811 Bluetooth module with Full GPIO

The MS50SFB is a compact and small size Bluetooth 5.0 module with ultra-low power consumption and optional antenna types;

The module has the large number of GPIOs and excellent RF performance. Therefore, it can apply to a wide range of Bluetooth connected
products. With an ARM CortexTM M4(F) MCU, up to 512KB flash, 64KB RAM, embedded 2.4GHz, MS50SFB can save the R&D and time cost

Application

Pin description

THE following description have upload UART Slave firmware in the module. Minew can upload UART-Slave module if required. But for the standard product, it is null module.

Features

Frequency:	2402 to 2480 MHz
Max. Output power:	+4dBm
Single power supply:	1.8 – 3.9V
Range:	10-60 meters
Chip:	nRF52832/nRF52810 (Nordic)
GPIO Quantity:	32
Module size:	20.0 x 12.0 x 2.0 mm
Operating Temperature range:	-25 to 85 degree Celsius
512kB Flash and 64kB RAM NFC type A interface ARM Cortex-M4F processor Metal shielding with marking UART communication protocol (Slave / Master optional)
