Quick Details
-
Model Number:
-
Plug-in style
-
Standard or Nonstandard:
-
Standard
-
Rotary Ring:
-
TC
-
Stationary Ring:
-
TC
-
Secondary Seal:
-
V
-
Other Parts:
-
ss304
Quick Details
-
Size:
-
as per your need
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
rcm
-
Model Number:
-
Plug-in style
-
Standard or Nonstandard:
-
Standard
-
Rotary Ring:
-
TC
-
Stationary Ring:
-
TC
-
Secondary Seal:
-
V
-
Other Parts:
-
ss304

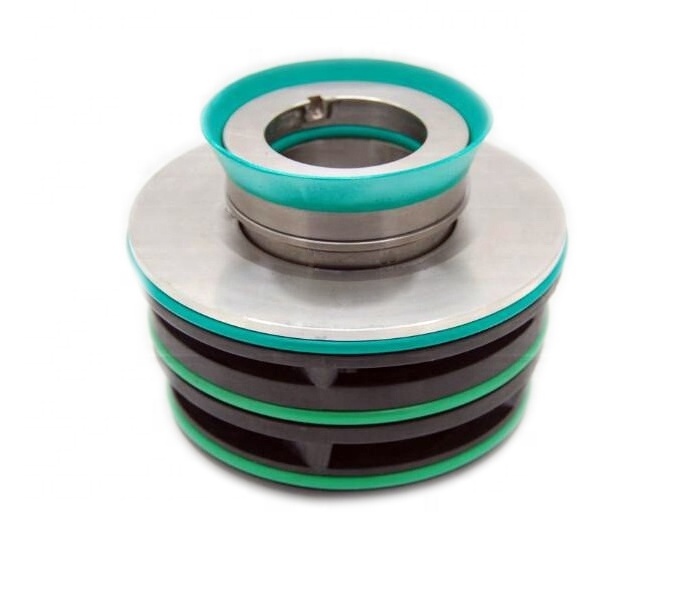

Flygt Plug-in Pump Cartridge Mechanical Seal
Flygt mechanical seals requires no pump modifications and no special fitting tools and the majority of designs have a
preset working length with removable setting clips. There are no plastic parts as the majority are make from
stainless steel.
Material:
| Seal Face | Tungsten Carbide |
| Elastomer | V |
| Metal Parts | SS304 |
Flygt Pump seal Mechanical Seals
Applications:
Pressure: ≤ 1.2Mpa;
Temperature: -30--200 ° C
Speeds: 10m/s
Materials:
1Temperature -30ºC~180ºC
2 Pressure Less than 1.5MPa
3 Speed Less than 10m/s
4 Stationary Ring :Ceramic/SiC/TC
5 Rotary Ring :Carbon/SiC/TC
6 Secondary Seal : NBR/EPDM/Viton
7 Sping&Other Parts SUS304/SUS316L
Medium: Water, oil, crystallizing acid, alkali, high viscosity liquid, paper pulp, etc.
