Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
APM
-
Dimensions(L*W*H):
-
2500x1420x1700mm
-
Weight:
-
2200 KG
-
Certification:
-
CE Certification
-
Application:
-
Printing Bottle
-
Printing color:
-
1~8 color
-
Printing speed:
-
4000pcs/H
-
Max printing size:
-
dia.100mm
-
Drying system:
-
UV/LED drying
-
Printing type:
-
screen printing
-
MOQ:
-
1 Set
-
Product name:
-
Automatic Screen Printer Machine
-
Brand:
-
APM
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
380V, 50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
APM
-
Dimensions(L*W*H):
-
2500x1420x1700mm
-
Weight:
-
2200 KG
-
Certification:
-
CE Certification
-
Application:
-
Printing Bottle
-
Printing color:
-
1~8 color
-
Printing speed:
-
4000pcs/H
-
Max printing size:
-
dia.100mm
-
Drying system:
-
UV/LED drying
-
Printing type:
-
screen printing
-
MOQ:
-
1 Set
-
Product name:
-
Automatic Screen Printer Machine
-
Brand:
-
APM
Products Description

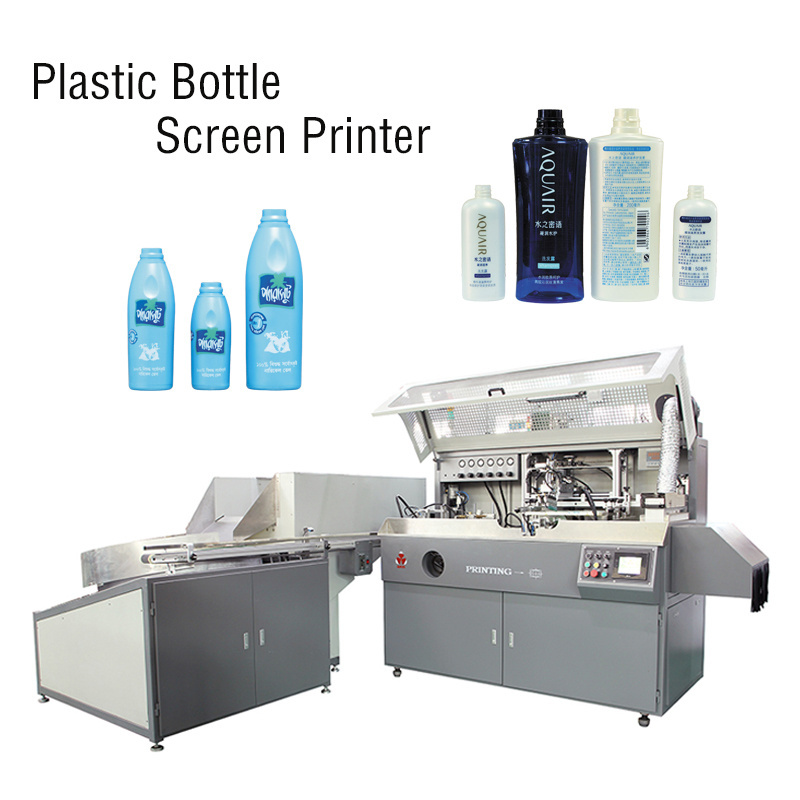

APM-S102 Automatic plastic round oval flat bottle screen printing machine
Application
The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
General Description
1. Automatic 1-8 color screen printing line, each unit can be separated or connected;
2. Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
3. Auto flame treatment;
4. Perfect transmission system. It passes over the bottles fast and smooth;
5. Automatic 180 degree rotation for oval and square bottles;
6. Quick and easy change over from one product to another;
7. LED UV curing system with longer life time and energy saving,electric UV system optional;
8. Reliable PLC control with touch screen display;
9. Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
10. Automatic unloading.
2. Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
3. Auto flame treatment;
4. Perfect transmission system. It passes over the bottles fast and smooth;
5. Automatic 180 degree rotation for oval and square bottles;
6. Quick and easy change over from one product to another;
7. LED UV curing system with longer life time and energy saving,electric UV system optional;
8. Reliable PLC control with touch screen display;
9. Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
10. Automatic unloading.
11. CE standard
Machine detail
Flame treatment
Mesh frame
UV curing system
Printed bottle
|
Parameter
|
APM-S102
|
|
|
Round container
|
|
|
|
Printing diameter
|
20-100mm
|
|
|
Printing length
|
20-300mm
|
|
|
Max.printing speed
|
4000pcs/h
|
|
|
Oval container
|
|
|
|
Printing width
|
25-120mm
|
|
|
Printing length
|
25-300mm
|
|
|
Max.printing speed
|
5000pcs/h
|
|
|
Square container
|
|
|
|
Printing length
|
100-200mm
|
|
|
Printing width
|
40-100mm
|
|
|
Max.printing speed
|
4000pcs/h
|
|
|
Machine dimension
|
1908*1000*1500mm
|
|
|
Power
|
380V,3P,50/60Hz
|
|
|
Air supply
|
5-7bar
|
|
Procedure
Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
