Quick Details
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
840*490*1490mm
-
Weight:
-
100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Lab CJF-2 Lined Hydrothermal Synthesis Autoclave Reactor Price
-
Material:
-
304 Stainless Steel
-
Application:
-
Labs Research
-
Heating Type:
-
Electricity
-
Capacity:
-
2L
-
Heating Power (W):
-
1500
-
Motor power:
-
80w
-
Stirring Speed (R/min):
-
0-1000
-
Setting Temperature (℃):
-
350
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZKD
-
Voltage:
-
110V/220V/230V
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
840*490*1490mm
-
Weight:
-
100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Lab CJF-2 Lined Hydrothermal Synthesis Autoclave Reactor Price
-
Material:
-
304 Stainless Steel
-
Application:
-
Labs Research
-
Heating Type:
-
Electricity
-
Capacity:
-
2L
-
Heating Power (W):
-
1500
-
Motor power:
-
80w
-
Stirring Speed (R/min):
-
0-1000
-
Setting Temperature (℃):
-
350

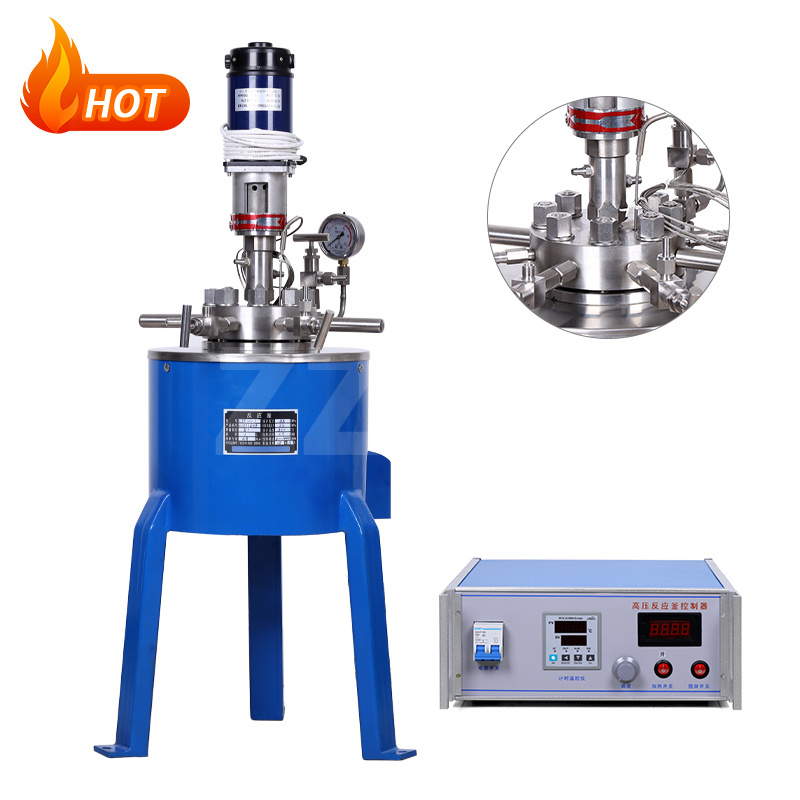

Lab CJF-2 Lined Hydrothermal Synthesis Autoclave Reactor Price
Brief Introduction
Control instrument shell adopt finished chassis shell, all electrical components are assembled into panels, and the bottom platform, easy to maintain and repair. The panel equipped with power switch with auto-tuning function. Intelligent digital temperature controller and stirring speed adjustment button are all equipped with motor ammeter, heating voltmeter, working hours indicator, stirring speed display table and so on. The panel behind the shell is equipped with power supply, heating device, motor, temperature probe, speed element and other terminal socket, and also installed with total power insurance, heating in surance, motor insurance, etc.
|
Model |
CJF-0.05 |
CJF-0. 1 |
CJF-0. 5 |
CJF- 1 |
CJF- 3 |
CJF- 5 |
CJF- 10 |
CJF- 20 |
CJF- 30 |
|
Capacity (L) |
0.05 |
0.1 |
0.5 |
1 |
3 |
5 |
10 |
20 |
30 |
|
Setting Pressure (MPa) |
22 |
||||||||
|
Set t ing Temperature (℃) |
350 |
||||||||
|
Accuracy of Temperature Control (℃) |
±1 |
||||||||
|
Heating Method |
General electric heating, others are far-infrared, thermal oil, steam, circulating water, etc. |
||||||||
|
Stirring Torque (N. cm) |
120 |
||||||||
|
Heating Power (kW) |
0.6 |
0.8 |
1.5 |
2 |
4 |
7 |
10 |
12 |
|
|
Temperature Controller |
Real-time display and adjust the speed, temperature, time, with standard PID automatic temperature adjustment meter. |
||||||||
|
Working Environment |
Ambient Temperature 0~50℃, Relative Humidity 30~80%. |
||||||||
|
Voltage (V/Hz) |
220 50/60 |
||||||||
