Quick Details
-
Brand Name:
-
Rawsun
-
Model Number:
-
RPHD3300
-
Frequency:
-
Hz
-
Product Name:
-
Rawsun Electric Car Conversion Kit AC Motor
-
Cooling type:
-
water
-
Motor Rated (Kw):
-
34
-
Motor Peak (Kw):
-
72
-
Rated Torque (Nm):
-
134
-
Peak Torque (Nm):
-
370
-
Transmission ratio:
-
6 gear AMT (6.091/3.65/2.274v1.478/1/0.774, R5.645)
-
Weight(kg):
-
200kg
-
Size(mm):
-
847mm*570mm*553mm
-
Certification:
-
CE
Quick Details
-
AC Voltage:
-
350V
-
Warranty:
-
12 mouths
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rawsun
-
Model Number:
-
RPHD3300
-
Frequency:
-
Hz
-
Product Name:
-
Rawsun Electric Car Conversion Kit AC Motor
-
Cooling type:
-
water
-
Motor Rated (Kw):
-
34
-
Motor Peak (Kw):
-
72
-
Rated Torque (Nm):
-
134
-
Peak Torque (Nm):
-
370
-
Transmission ratio:
-
6 gear AMT (6.091/3.65/2.274v1.478/1/0.774, R5.645)
-
Weight(kg):
-
200kg
-
Size(mm):
-
847mm*570mm*553mm
-
Certification:
-
CE
Rawsun EV motor

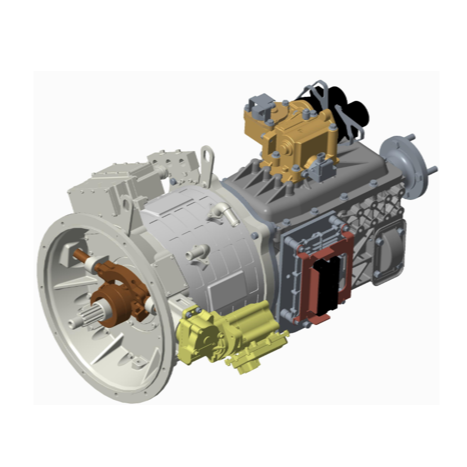

Rawsun AC Motor Parallel Hybrid Drive System RPHD3300 Electric Car Conversion Kit for 4.5-12 ton Light Truck and Medium Truck
Rawsun AC Motor Parallel Hybrid Drive System RPHD3300 Electric Car Conversion Kit for 4.5-12 ton Light Truck and Medium Truck
|
Number
|
Model
|
Motor
|
Maximum output torque
|
Peak speed
|
|
READ4200Z
|
3.5-4.5 tons logistic vehicle
9-16 seats Sprinter Coach Bus
|
135/320Nm, 60/105kW
|
4200Nm
|
10000rpm
|
|
READ5300Z
|
4.5-6.0 tons logistic vehicle
6m passenger car
|
135/320Nm, 66/123kW
|
5300Nm
|
12000rpm
|
|
READ40000Z
|
18-23 tons sprinkler/refuse transfer truck
|
350/750Nm, 125/180kW
|
40000Nm
|
7500rpm
|
|
READ126000Z
|
110 tons Axle motor for mine truck(6x4)
|
270/550Nm, 115/220kW
|
126000Nm
|
8500rpm
|
|
READ15000L
|
10-12m city bus( Low-Floor Bus)
|
220/430Nm, 80/157kW
|
15000Nm
|
7500rpm
|
|
READ2100P
|
14 ton Wide-Channel Electric Axle Drive Motor Suitable for Airport Shuttle Bus
|
|
2×9290 N.m
|
430 rpm
|
|
READ2100N11
|
13 ton Strong Electric Axle Drive Motor System Suitable for 18m Ticulator、10-12m Double-decker、13.7m Bus
|
|
2×10776 N.m
|
|
|
READ2100N
|
13 ton Standard Electric Axle Drive Motor System Suitable for 10.5-12M Bus
|
|
2×9290 N.m
|
|
|
READ1400K01
|
9 ton Standard Electric Axle Drive Motor System Suitable for 8-10M Bus
|
|
2×7060 N.m
|
|
|
READ1100K
|
9 ton Independent Suspension Steering Wheel Axle Drive Motor Suitable for rubber wheel trackless train
|
|
2×6140 N.m
|
|
|
READ800F
|
5 ton Rigid Electric Axle Drive Motor suitable for High-end business Minibus
|
|
2×4000 N.m
|
|
|
READ800F01
|
5 ton Electric Axle Drive Motor with Leaf Spring Suitable for high-end logistics vehicles, can make low-platform
|
|
2×4000 N.m
|
|
|
Product model
|
Vehicle type
|
Speed ratio of gearbox
|
Motor power (Rated/peak)
|
Motor torque (Rated/peak)
|
|
PHD3100
|
8-9m coach, city bus,7.5-16t special vehicle, etc
|
(4.156/2.474/1.514/1/0.754) 5-gear AMT R=4.298
|
75/130kW
|
355/750Nm
|
|
PHD3100
|
4.5-12 tons light truck and medium truck
|
6 gear AMT R=5.645
Max input torque: 540Nm 6.091/3.65/2.274v1.478/1/0.774
|
34/ 72kW
|
134/370Nm
|
|
PHD6300
|
9-12m coach, city bus, 18-35t tractors, etc.
|
(6.621/3.725/2.303/1.514/1/0.754) 6-gear AMT R=6.045
|
80/135kW
|
500/1000Nm
|
|
PHD6500
|
9-12m road and bus; 16 and 25 tons of car, etc
|
6 gear AMT R=5.738
Max input torque: 1100Nm 5.982/3.713 /2.394/ 1.506/ 1/ 0.728
|
80/135kW
|
500/1000Nm
|
|
PHD8700
|
11m and above coach, assembly equipped with support for installation of retarder
|
(6.71/3.77/2.26/1.443/1.00/0.77) 6-gear AMT R=6.17
|
80/135kW
|
500/1000Nm
|
|
PHD24200
|
25-110 ton heavy truck
|
(12.1 9.41 7.31 5.71 4.46 3.48 2.71 2.11 1.64 1.28 1 0.78)12-gear AMT R=11.56/2.59
|
80/149kW
|
620/1390Nm
|
|
PHD29000A
|
25-60 ton heavy truck
|
12 gear AMT R=11.56/2.59
Max input torque: 2400Nm 12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11 /1.64/1.28/1/0.78
|
100/200kW
|
930/2000Nm
|
|
PHD29000B
|
60-120 tons of mine self-discharging, wide-body self-discharging
|
12 gear AMT R=11.56/2.59Max input torque: 2400Nm 12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11 /1.64/1.28/1/0.78
|
130/225kw
|
1300Nm/2850Nm
|
Rawsun AC Motor Parallel Hybrid Drive System RPHD3300 Electric Car Conversion Kit for 4.5-12 ton Light Truck and Medium Truck
Rawsun AC Motor Parallel Hybrid Drive System RPHD3300 Electric Car Conversion Kit for 4.5-12 ton Light Truck and Medium Truck
Detailed Images
Rawsun AC Motor Parallel Hybrid Drive System RPHD3300 Electric Car Conversion Kit for 4.5-12 ton Light Truck and Medium Truck
Rawsun AC Motor Parallel Hybrid Drive System RPHD3300 Electric Car Conversion Kit for 4.5-12 ton Light Truck and Medium Truck
