Quick Details
-
Travel (W-axis) (mm):
-
140 mm
-
Marketing Type:
-
Hot Product 2021
-
Range of Spindle Speed(r.p.m):
-
380 r.p.m
-
Spindle Motor Power(kW):
-
0.37/0.25
-
Production Capacity:
-
50 Sets / Month
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
AMCO
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
350x272x725 mm
-
Weight (T):
-
0.1 T
-
Spindle quick reset:
-
Manual
-
Motor voltage:
-
220/380 V
-
Motor power:
-
0.25 Kw
-
Motor speed:
-
1440 r/min
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO9001
Quick Details
-
Table Travel (X) (mm):
-
140 mm
-
Table Travel (Y) (mm):
-
300 mm
-
Table Travel (Z) (mm):
-
300 mm
-
Travel (W-axis) (mm):
-
140 mm
-
Marketing Type:
-
Hot Product 2021
-
Range of Spindle Speed(r.p.m):
-
380 r.p.m
-
Spindle Motor Power(kW):
-
0.37/0.25
-
Production Capacity:
-
50 Sets / Month
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
AMCO
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
350x272x725 mm
-
Weight (T):
-
0.1 T
-
Spindle quick reset:
-
Manual
-
Motor voltage:
-
220/380 V
-
Motor power:
-
0.25 Kw
-
Motor speed:
-
1440 r/min
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO9001

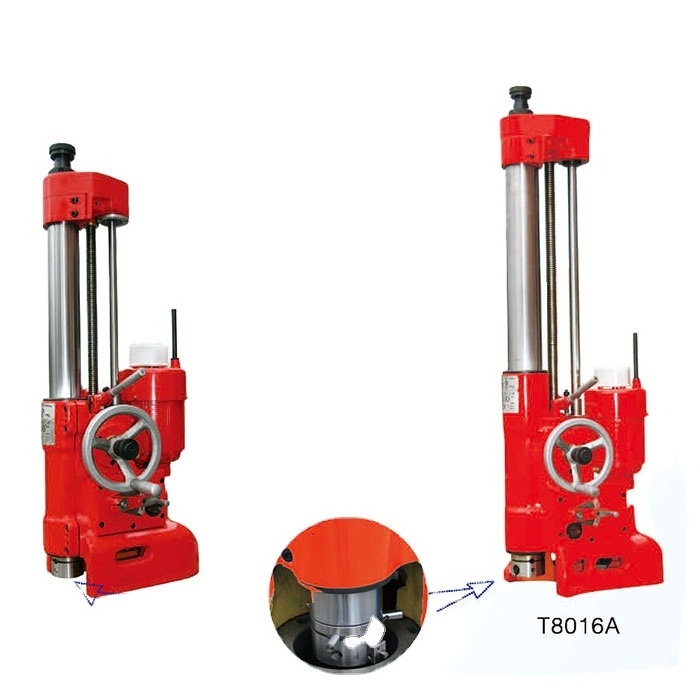

quality T8014A cylinder boring machine
The boring machine is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.
Main features:
Reliable performance, widely use, processing accuracy high productivity.
Easy and flexible operation
Good rigidity, amount of cutting
|
Item |
Unit |
Data |
||
|
1 |
Boring range |
Mm |
φ 65-140 |
|
|
2 |
Max. Boring depth |
Mm |
300 |
|
|
3 |
No. Of spindle speeds |
|
2 |
|
|
4 |
Spindle speed |
R/min |
250,300 |
|
|
5 |
Feed |
Mm/rev |
0.11 |
|
|
6 |
Quick-return |
Mm/sec |
10.6 |
|
|
Motor |
|
|
||
|
Output |
Kiwi |
0.37 or 0.25 |
||
|
Speed |
R/min |
1440 |
1720 |
|
|
Voltage |
V |
380 |
220 |
|
|
Frequency |
Hz |
50 |
60 |
|
|
Type |
|
Induction fully enclosed |
||
|
8
|
Acting range of Centering fingers
|
Mm |
φ 65-78 |
|
|
Mm |
φ 78-91 |
|||
|
Mm |
φ 91-104 |
|||
|
Mm |
φ 104-117 |
|||
|
Mm |
φ 117-130 |
|||
|
Mm |
φ 130-141 |
|||
|
9 |
Over a ll dimensions (L×W×H) |
Mm |
320×330×850 |
|
|
10 |
Weight, approx |
Kg |
75 |
|
1. Who are we?
We are based in Shaanxi, China, start from 2007,sell to Mid East(27.00%),South America(25.00%),Southeast Asia(23.00%),Africa(10.00%),Central America(5.00%),Domestic Market(3.00%),North America(2.00%),South Asia(2.00%),Western Europe(2.00%),Oceania(1.00%). We have about 5-10 professional salesmen to handle the business.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Valve Seat Boring Machine,Valve Grinding Machine,Brake Lathe,Shearing and Bending Machine,CNC Metal Spinning Machine and so on.
4.Why choose us?
AMCO puts users' actual needs in the first place. We can not only make improvement of existing machine to adapt the needs of users, but also design and manufacture new machines according to the requirements of clients.We have favorable price and excellent quality.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish
6.What services can you experience from us?
Our salesman English CET 6 or above,can communicate with you in fluent English.
You can keep informed of the progress of our factory in making machines.
We will show you the complete picture of the machine before shipment, so that you can wait at ease.
Our after-sales service is very timely and will solve all your problems about the machine.
