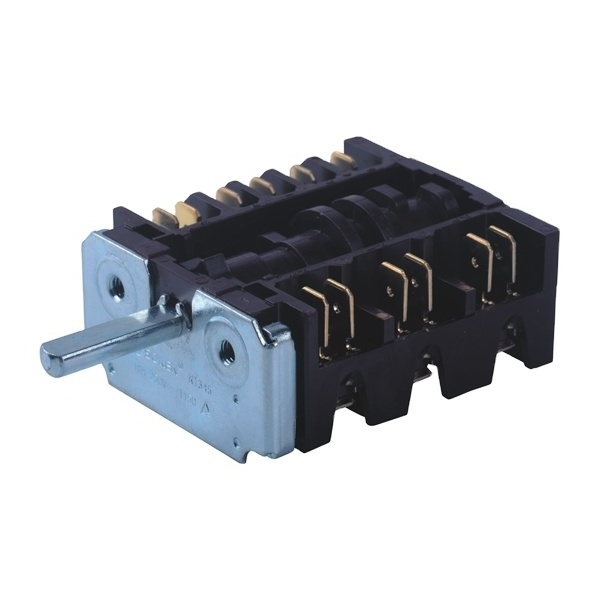

RT345-1A Bakelite Oven Rotary Switch 16A 250VAC

RT345-1A Bakelite Oven Rotary Switch 16A 250VAC

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $1.26

≥5000 Pieces

US $1.2

≥10000 Pieces

US $1.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SOKEN

Model Number:: RT345-1A

Max. Current:: 16A

Mechanical Life:: 30000 Cycles

Category:: Rotary Switch

Certificates:: CQC VDE K UL

Shaft length:: 11.4mm/15mm/18mm/23mm/26mm

Contact resistance:: ≤100mΩ

Insulationresistance:: ≥100mΩ

Material of case, cover:: PA66

Material of gear, axis:: PA66

degree of each position:: 51.43 /360 degree

Application:: Electrical Equipment

Certification:: UL,VDE,CB,KC

Quick Details

Whether the smart:: NO

Max. Voltage:: 250VAC

Place of Origin:: Zhejiang, China

Brand Name:: SOKEN

Model Number:: RT345-1A

Max. Current:: 16A

Mechanical Life:: 30000 Cycles

Category:: Rotary Switch

Certificates:: CQC VDE K UL

Shaft length:: 11.4mm/15mm/18mm/23mm/26mm

Contact resistance:: ≤100mΩ

Insulationresistance:: ≥100mΩ

Material of case, cover:: PA66

Material of gear, axis:: PA66

degree of each position:: 51.43 /360 degree

Application:: Electrical Equipment

Certification:: UL,VDE,CB,KC

RT345-1A Bakelite Oven Rotary Switch with 16A 250VAC

---Production Description---

Item	RT345-1A
Safety Certificates	CQC VDE K UL

- --Production Specification---

Rating	250VAC 16A T150
Contact Resistance	100MΩ Max
Dielectric Strength	1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
Operating Temperature	-25~85°C
Insulated Resistance	500VDC, 100MΩ Min
Electrical Life	≥10,000 cycles
Pins (Terminals)	pins
Housing Material	PA66
Button Material	PC

- --Production Material---

Base plastic	Nylon 66
Button plastic	PC
Copper parts such as terminal	Copper
Terminal surface treatment	Silver plating
Contact	Ag or Composite silver
Spring	Steel Wire
Waterproof Material	PVC

- -- Advantage ---

. CQC,UL,TUV,KEMA,VDE, CE,RoHS approved

. Used for home appliance and electronic equipments

. Machining as you required

. Custom made according your samples, drawings, pictures or photos

- --Production Display---

--- Installation drawing ---

- --Company Display---

Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus .

1. Factory Appearance

2. Stamping and Injection Molding workshop

3. Semi-automatization work shop 4. Assemblage workshop

5. Warehouse
