Explosion-proof gas flow meter Vortex flowmeter Air steam hydrogen nitrogen biogas CO2 Liquefied petroleum gas methane propane

Explosion-proof gas flow meter Vortex flowmeter Air steam hydrogen nitrogen biogas CO2 Liquefied petroleum gas methane propane

FOB Reference Price: Get Latest Price

≥1 Pieces

US $419

≥30 Pieces

US $350

≥50 Pieces

US $300

≥100 Pieces

US $220

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: QZHI-SETSAIL

Model Number:: QZLUG

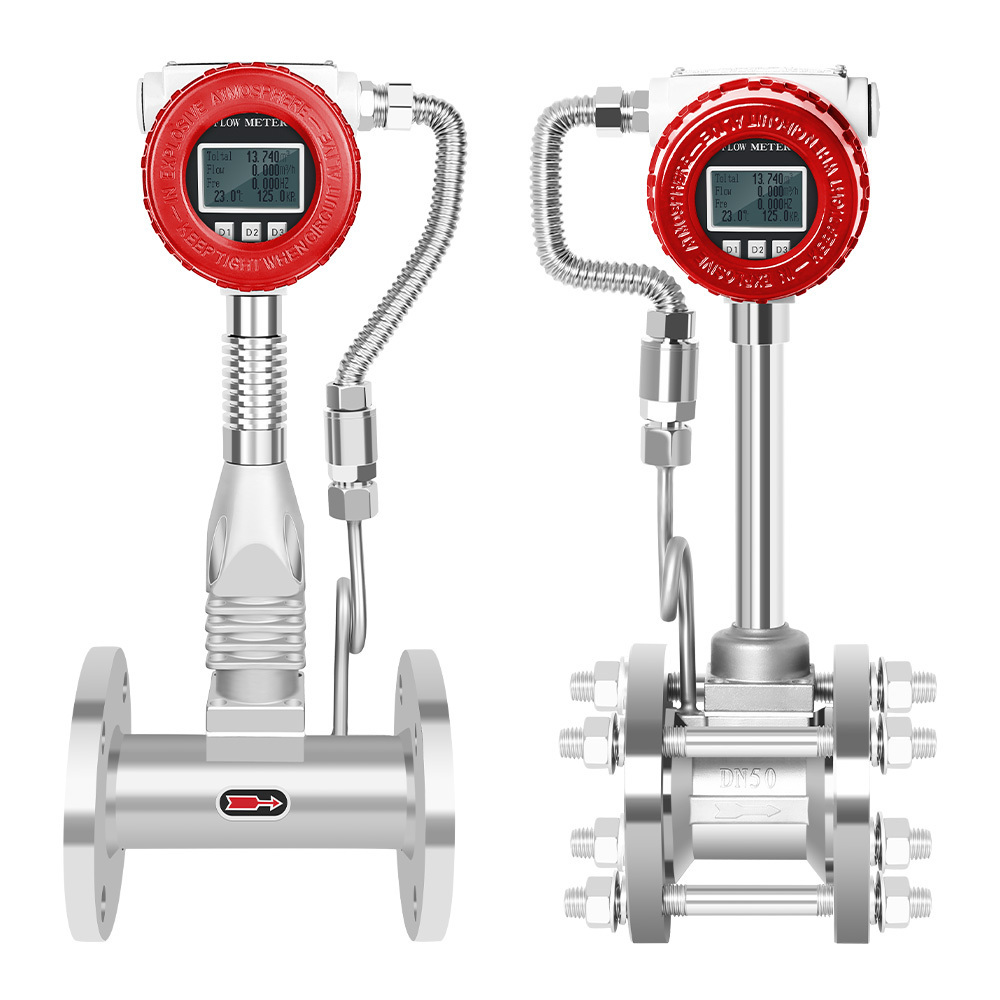

Product Name:: Vortex Flow Meter

Size:: DN15 ~ DN6000

Medium:: Gas /Liquid /Stream

Accuracy:: 1.5%

Output:: 4-20mA/pulse/RS485/Hart

Connection:: Clamping Flange/Integrated Flange/Thread

Pressure:: 1.6Mpa/2.5Mpa/4.0Mpa/6.3Mpa/10Mpa/16Mpa/25Mpa

Display:: LCD

Power supply:: 24VDC /3.6V Lithium Battery

Body Material:: 304ss,316L

Quick Details

Type:: Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters

Warranty:: 1 years

Place of Origin:: Anhui, China

Brand Name:: QZHI-SETSAIL

Model Number:: QZLUG

Product Name:: Vortex Flow Meter

Size:: DN15 ~ DN6000

Medium:: Gas /Liquid /Stream

Accuracy:: 1.5%

Output:: 4-20mA/pulse/RS485/Hart

Connection:: Clamping Flange/Integrated Flange/Thread

Pressure:: 1.6Mpa/2.5Mpa/4.0Mpa/6.3Mpa/10Mpa/16Mpa/25Mpa

Display:: LCD

Power supply:: 24VDC /3.6V Lithium Battery

Body Material:: 304ss,316L

Measurable Media

Compressed Air

Superheated Steam

Saturated Steam

Nitrogen

Hydrogen

Oxygen

Gas

Heat Transfer Oil

Water

High Temperature Liquids

Applicable Industries

The vortex flowmeter is designed based on the Karman vortex principle, which can measure the flow, temperature, pressure and other parameters of the medium fluid of industrial pipelines according to different types, and has the functions of pulse frequency output, 4-20mA analog signal output, RS485 communication, Hart protocol and so on. It is widely used in heating, gas supply,textile, steel, medicine and other industries to measure and control gas, compressed air, steam, nitrogen, heat transfer oil and other media.

It is known as Tongjing	15/20/25/32/40/50/65/80 /100/125/150/200/250/300 (300-1000) plug-in
Nominal pressure	DN15-DN2004.0 (> 4.0), DN250-DN3001.6 (>1.6)
Medium temperature °C	-40~150,-40~250,-40~350;
Accuracy	±1%R,±1.5%R; Plug-in: ± 2.5%R
Range	1:6~1:30
Supply voltage	Sensor: DC12V, DC24V; Transmitter: DC24V; Battery-powered type: 3.6V battery
Output signal	Square wave pulse (excluding battery-powered type): high ≥ 5V, low ≤ 1V; Current: 4~20mA
Pressure loss coefficient	Conform to JB/T9249 standard Cd≤24
Explosion-proof signs	Intrinsically safe type: ExdIlia CT2-T5 flameproof type: Ex db IIC T6 Gb
Ingress protection	Ordinary IP65 type
Environmental conditions	The temperature is -20°C~55°C, the relative humidity is 5%~90%, and the atmospheric pressure is 86~106kpa
Applicable media	Gases, liquids, vapors, mixed gases, flammable and explosive gases
Transmission distance	Three-wire pulse output type: ≤100m, two-wire standard current output type (4~20mA)≤200m: load resistance≤750Ω; RS485/HART≤500m

Fully Automatic Inspection

Calibration Equipment In The Factory

No Temperature And Pressure Compensation

Integrated Temperature And

Pressure Compensation

Product Upgrades

The square fastening screws are reinforced from the normal round to squarefastening columns which can adapt to a higher degree of on-site vibration.

Threaded

Connection

Clamp Flange Connection

One-piece Flange Connection

Note: Choose Temp And Pressure Compensation For Gas Measurement

Gases are highly susceptible to pressure and temperature, which requires accurate measurements, temperature 25ºC and standard atmospheric pressure.

However, field conditions often can not be satisfied, therefore, it is necessary to involve temperature and pressure compensation.

Feedback From Customers

Instrument Diameter (mm)	Liquid			Gas
Instrument Diameter (mm)		Measuring Range (m3/h)	Output Frequency Range (Hz)	Measuring Range (m3/h)	Output Frequency Range (Hz)
15	0.3~5	35~450	4~20	352~1761
20	0.6~10	29~380	6~30	250~1273
25	1.2~16	25~320	8~50	160~1100
32	1.8~20	18~200	10~150	97~1180
40	2~40	10~190	20~200	130~1040
50	3~60	8~150	35~350	87~952
65	4~85	6~120	45~450	71~764
80	6.5~130	4.1~82	86~1100	54~696
100	15~220	4.7~69	133~1700	42~548
125	20~350	3.2~57	150~2000	26~346
150	30~450	2.8~43	347~4000	34~392
200	45~800	2~31	560~8000	22~315
250	65~1250	1.5~25	890~11000	18~221
300	95~2000	1.2~24	1360~18000	16~213
