It has very good corrosion resistance to all kinds of reducing acids and salts, but is not suitable for strong oxidizing media such as nitric acid. An important characteristic of pure nickel is its ability to resist caustic alkali, even molten caustic alkali.Other grades of alloy 201 - high carbon nickel - are also available for applications up to 600 ° F
- Product Details
- {{item.text}}
Quick Details
-
Elongation (≥ %):
-
35%min
-
Place of Origin:
-
Shanxi, China
-
Application:
-
Industry construction building
-
Grade:
-
inconel 600 625 718 725
-
Ni (Min):
-
55%
-
Model Number:
-
inconel 600 601 602 625 718 725
-
Shape:
-

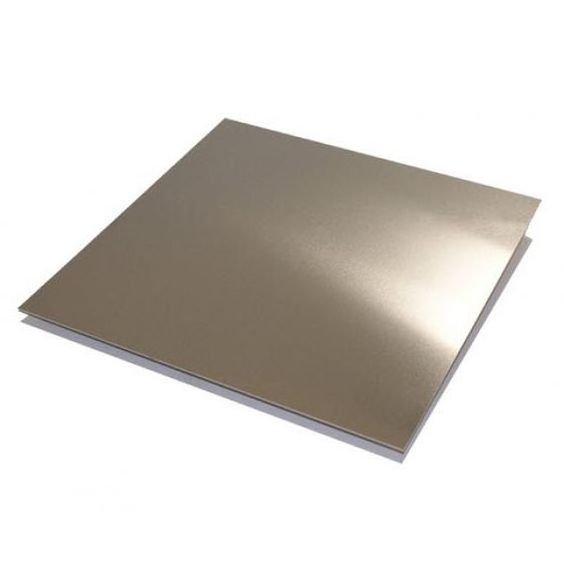

Flat Sheet
-
Material:
-
Nickle Alloy Material
-
Standard:
-
ASTM ASME
-
Surface:
-
Polished Bright
-
MOQ:
-
100KG
-
Certificate:
-
ISO 9001:2008
-
Size:
-
Client's Requirements
-
Surface Treatment:
-
Nickel Plating
-
DELIVERY TIME:
-
7-15 Days
Quick Details
-
Resistance (μΩ.m):
-
1.5
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
350
-
Elongation (≥ %):
-
35%min
-
Place of Origin:
-
Shanxi, China
-
Application:
-
Industry construction building
-
Grade:
-
inconel 600 625 718 725
-
Ni (Min):
-
55%
-
Model Number:
-
inconel 600 601 602 625 718 725
-
Shape:
-
Flat Sheet
-
Material:
-
Nickle Alloy Material
-
Standard:
-
ASTM ASME
-
Surface:
-
Polished Bright
-
MOQ:
-
100KG
-
Certificate:
-
ISO 9001:2008
-
Size:
-
Client's Requirements
-
Surface Treatment:
-
Nickel Plating
-
DELIVERY TIME:
-
7-15 Days
Product Description
200 UNS N02201 N02200 Pure Nickel Plate
400 UNS N04400 Nickel Copper Alloy Plate(Monel)
The corrosion resistance of Ni-Cu alloy 400 is good under the condition of reducing medium, but the aeration and oxidizing chemicals are unfavorable to its corrosion resistance. Alloy 400 has very good resistance to halogen acid and halide corrosion properties, especially resistance to fluorine or hydrogen fluoride high temperature gas.
This alloy is widely used to treat sulfuric acid solutions, seawater and brine. For applications requiring high strength, such as valves and pump components, the alloy K-500(NO5500) is often used, which is a precipitation-hardened derivative of alloy 400.
600 UNS N06600 Nickel Chromium Iron Alloy(Inconel)
The addition of chromium to the nickel matrix expands the applicability of alloy 600 in oxidizing environment. Its corrosion resistance to organic acids is very good, so it is widely used in the processing of fatty acids. Alloy 600 is also widely used in the production and storage of hydroxides and alkaline chemicals. Alloy 600 is also an ideal material for high temperature applications that require both heat and corrosion resistance.
625 UNS N06625 N
ickel-Chrome-Molybdenum/690 UNS N06690
Nickel-Chrome Alloy
Like alloy 600, alloy 625 can be used as both a corrosion-resistant and heat-resistant material. The excellent high temperature strength of alloy 625 and its combined resistance to halogen corrosion, oxidation and carburizing make it an ideal material for chemical and petrochemical equipment operating in demanding high temperature environments.
Alloy 690 is a nickel-based alloy used in the manufacture of pressure equipment with a high chromium content and excellent corrosion resistance to oxidizing media.
Other Alloy Materials:
Nickel-chromium-iron alloy 825 UNS N08825
Nickel - chromium - iron - molybdenum "G" series alloy G-3/G-35
Nickel-molybdenum "B" alloy series alloys B-2/B-3/B-4
Chemical Compositon
600 series alloy:
Carbon 0.15（max） D
ensity
8.4 g/m
³
Manganese 1.00(max)
Fusing point 1370-1425
℃
Sulfur 0.015(max)
Iron 6.0-10.0
Silicon 0.50(max)
Nickel 72(min)
Chromium 14.0-17.0
Copper 0.50(max)
● Minimum mechanical properties of Inconel 600 alloy at room temperature:
Key properties (Annealed state)
Tensile strength: 80.00-100.00
Yield strength: 25.00-50.00
Elongation: 55.00-35.00%
Hardness: 88.00
Genaral Parameters
|
Standard
|
ASTM B162,ASTM B906,DIN EN 10095,ISO 9723,ASME SB-162/SB-124
|
|
|
|
|||
|
Steel Grade
|
Inconel 600/601/602CA/617/625/713/718/738/X-50/Carpenter 20
Pure Nickel 200 201
Monel 400/K500
825/G-3/G-35/B-2/B-3/B-4 etc.
|
|
|
|
|||
|
Thickness
|
0.8mm-36mm or customized
|
|
|
|
|||
|
Width
|
650mm-2000mm or customized
|
|
|
|
|||
|
Length
|
800mm-4500mm or customized
|
|
|
|
|||
|
Certification
|
MTC/ISO 9001/SGS
|
|
|
|
|||
|
MOQ
|
100KG
|
|
|
|
|||
|
Package
|
1. Cases packed in wooden cases
2. Paper packaging 3. Plastic packing 4. Foam packaging Packaging according to customer requirements |
|
|
|
|||
