Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
H3008
-
Place of Origin:
-
Guangdong, China
-
Forwarding Rate:
-
11.9Mpps
-
MAC:
-
2K
-
Product status:
-
Stock
-
type:
-
Ethernet Switch
-
Buffer Memory:
-
2M
-
Jumbo Frame:
-
9.2K
-
Installation:
-
Desktop, wall mounted
-
Warranty:
-
1 year, lifelong maintenance
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
10Gbps
-
Brand Name:
-
ONV
-
Model Number:
-
H3008
-
Place of Origin:
-
Guangdong, China
-
Forwarding Rate:
-
11.9Mpps
-
MAC:
-
2K
-
Product status:
-
Stock
-
type:
-
Ethernet Switch
-
Buffer Memory:
-
2M
-
Jumbo Frame:
-
9.2K
-
Installation:
-
Desktop, wall mounted
-
Warranty:
-
1 year, lifelong maintenance

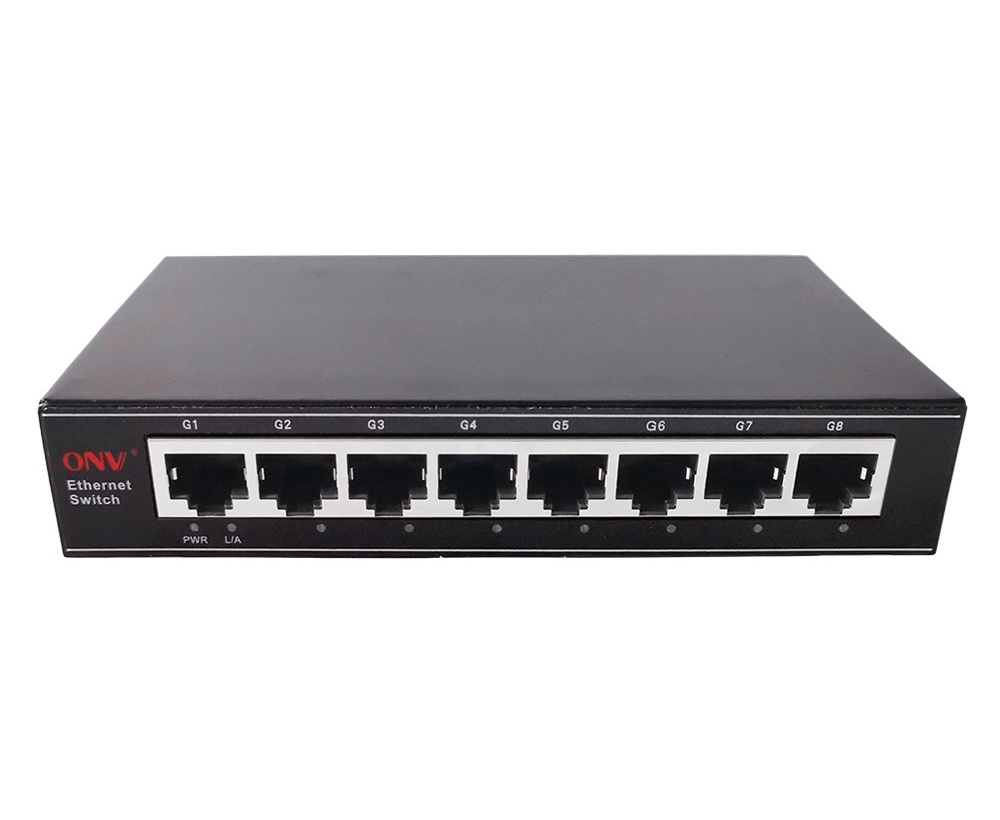

The H3008 is an unmanaged gigabit Ethernet switch. It has 8*10/100/1000M RJ45 ports. The
scheme of the large backplane and large cache switching chip is preferred to improve the
forwarding rate of large files and effectively solve the problems of video freeze and picture loss in
the high-definition surveillance environment. It is suitable for hotels, banks, campuses, factory
quarters and small and medium-sized enterprises to establish a cost-effective network.
Unmanaged mode, plug and play, no configuration, simple and convenient to use.
Full gigabit rate, high-speed transmission
◇ Full Gigabit Ethernet port, high speed, fast transmission, convenient for users to flexibly
network, and meet various high-definition network requirements
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Stable and reliable
◇ CE, FCC, RoHS.
◇ Low power consumption, no fan, flame retardant plastic casing.
Easy to operate
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR,
Link/Act.
|
Model
|
H3008S
|
|
|
Interface Characteristics
|
|
|
|
Fixed Port
|
5*10/100/1000Base-T RJ45 ports
(Data) |
|
|
.
Ethernet Port
|
10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X
self-adaption. |
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chip Parameter
|
|
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
|
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
|
Switching Capacity
|
16Gbps(non-blocking)
|
|
|
Forwarding Rate@64byte
|
7.44Mpps
|
|
|
MAC
|
2K
|
|
|
Buffer Memory
|
2M
|
|
|
Jumbo Frame
|
9.2K
|
|
|
LED Indicator
|
Power: PWR (green), Network:Link/Act(green)
|
|
|
Power
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Total PWR / Input Voltage
|
5W/(DC5V)
|
|
|
Power Consumption
|
Standby<1W, Full Load<2W
|
|
|
Power Supply
|
External power adapter, AC100~240V 50-60Hz 0.56A
|
|
|
Physical Parameter
|
|
|
|
Operation TEMP / Humidity
|
-20~+55°C;5%~90% RH Non condensing
|
|
|
Storage TEMP / Humidity
|
-40~+75°C;5%~95% RH Non condensing
|
|
|
Dimension (L*W*H)
|
100*70*28mm
|
|
|
Net /Gross Weight
|
<0.1kg /<0.25kg
|
|
|
Installation
|
Desktop, wall mounted
|
|
|
Certification & Warranty
|
|
|
|
Lightning protection
|
Lightning protection: 4KV 8/20us; Protection level: IP30
|
|
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
|
|
|
Warranty
|
1 year, lifelong maintenance.
|
|
|
|
Description
|
|
|
|
|
PACKING LIST
|
CONTENT
|
|
QTY
|
UNIT
|
|
|
|
8-port Gigabit Ethernet Switch
|
|
1
|
SET
|
|
|
|
Power Adapter 5V/1A
|
|
1
|
PC
|
|
|
|
|
|
|
|
|
|
|
Warranty Card
|
|
1
|
PC
|
|
|
|
User Guide
|
|
1
|
PC
|
|
