Quick Details
-
Dimension(L*W*H):
-
4000*1750*2450 (mm)
-
Weight:
-
5600 KG
-
Mobility:
-
Move by crawler
-
Product name:
-
Water Wells Drilling Rigs
-
Application:
-
Geological Exploration
-
Feature:
-
High Drilling Efficiency
-
Color:
-
Customizable
-
Certification:
-
CE ISO
-
Key words:
-
Water Drilling Equipment
-
Engine:
-
YUCHAI Diesel Engine
-
Model Number:
-
FX300
-
Advantage:
-
High Performance
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Toenter
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4000*1750*2450 (mm)
-
Weight:
-
5600 KG
-
Mobility:
-
Move by crawler
-
Product name:
-
Water Wells Drilling Rigs
-
Application:
-
Geological Exploration
-
Feature:
-
High Drilling Efficiency
-
Color:
-
Customizable
-
Certification:
-
CE ISO
-
Key words:
-
Water Drilling Equipment
-
Engine:
-
YUCHAI Diesel Engine
-
Model Number:
-
FX300
-
Advantage:
-
High Performance
Products Description

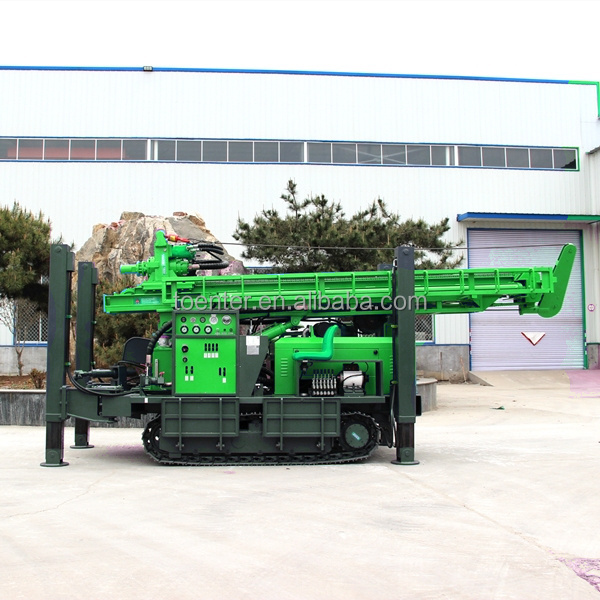

Diesel driven hydraulic 300m depth underground water well drilling rig machine
Application of water well hammer drilling machine. It can be used to drill water well, agricultural irrigation well, geothermal well and other type well holes. And it is specialsuitable for mountain area and rock stratum water sourcing project.
Details Images
Products paramenters
|
Drilling depth
|
300m
|
|
Dia.hole
|
φ140-325mm
|
|
Advance Length one time
|
3.3/4.8m
|
|
Working pressure
|
1.7-3.0MPa
|
|
Air consumption
|
17-36m³/min
|
|
Length of rod
|
1.5m,2m,3m
|
|
Dia. Of rod
|
φ76, φ89, φ102
|
|
Lifting power
|
18T
|
|
Rotation torque
|
5700-7500N.m
|
|
Rotation Speed
|
45-70r/min
|
|
Lifting power of winch
|
2T
|
|
Diesel Engine
|
Yuchai
|
|
Engine Power
|
85Kw/2200rpm
|
|
Travelling speed
|
0-2.5 Km/h
|
|
Climb capacity
|
30°
|
|
Weight
|
7200kgs
|
|
Dimension
|
4100x2000x2500mm
|
|
Application
|
Complicated geological conditions:Rock,Mud,Sand etc.
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
|
|
Dth Hammer
|
4",5",6",8",10" Drill hammer or CIR110, 130, 150,170
|
Recommend drilling accessories
Drill Tubes
Drill Hammer
DTH Drill Bit
Mud Pump
Air Hose
Drill Bit
Recommend air compressor
Recommend other Models
260 meters water well drilling rig
350 meters water well drill rig
450 meters water well drill rig
500 meters water well drill rig
