Quick Details
-
Brand Name:
-
CKYECL OEM ODM
-
Model Number:
-
KYQ3-63
-
Rated Current:
-
63A, 10A 16A 20A 25A 32A 40A 50A 63A
-
Product poles:
-
2P 3P 4P
-
Product standard:
-
GB/T14048.11-2008
-
Product Classification:
-
Circuit Breakers
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CKYECL OEM ODM
-
Model Number:
-
KYQ3-63
-
Rated Current:
-
63A, 10A 16A 20A 25A 32A 40A 50A 63A
-
Product poles:
-
2P 3P 4P
-
Product standard:
-
GB/T14048.11-2008
-
Product Classification:
-
Circuit Breakers
Summary

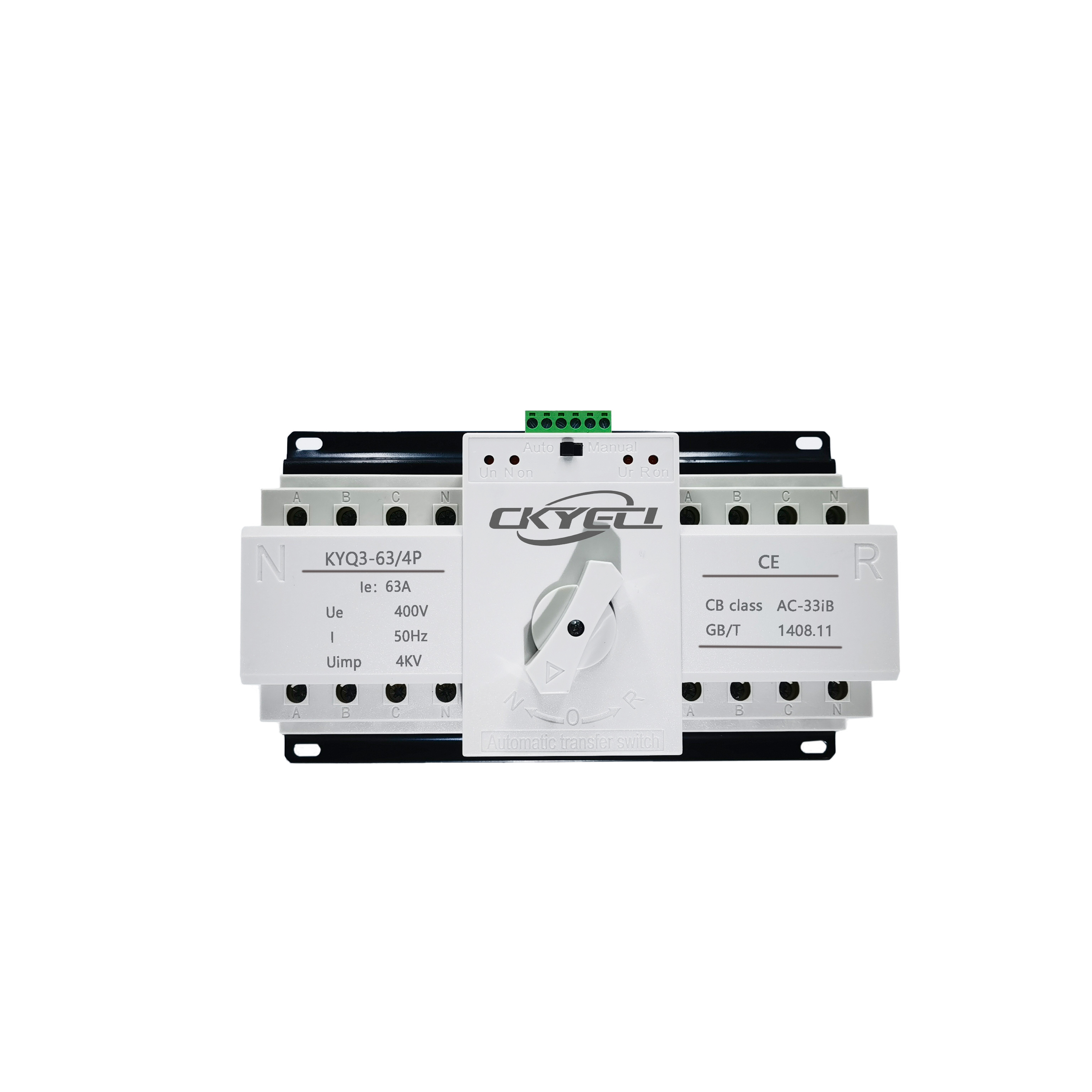

KYQ3-63 series automatic power transfer switch (hereinafter referred to as transfer switch) is suitable for dual power supply system with AC 50Hz/60, rated working voltage 400V and rated working current up to 63A. It can complete the transfer between common power supply and standby power supply by automation or manual operation. The switch is mainly used in hospitals, shops, banks, chemical industry, metallurgy, high-rise buildings, military facilities and other important occasions.
Control device: built-in controller
Product structure: small size, high current, simple structure, integrated ATS
Features: fast switching speed, low failure rate, convenient maintenance, and reliable performance
Wiring method: front panel wiring
Conversion method: grid to grid, grid to generator, self switching and self recovery
Product shell frame: 63
Product current: 10, 16, 20, 25, 32, 40, 50, 63A
Product Classification: Circuit Breakers
Product poles: 2, 3, 4
Product standard: GB/T14048.11-2008
ATS: CB level, with overload and short circuit protection.
①
|
Enterprise code
|
②
|
Dual power automatic transfer Design No:Q3
|
③
|
Rated current of shell frame grade 63
|
④
|
3P circuit breaker ; 4P circuit breaker ; 2: 2P circuit breaker
|
⑤
|
A type, C type, C1 type, D type, F type, Z type
|
⑥
|
Rated working current: 10-63A
|
Product number
|
KYQ3-63
|
|
|
||
Working voltage
|
AC220V
|
|
|
||
Rated voltage
|
AC400V
|
|
|
||
Rated current In(A)
|
10A、16A、2A0、25A、32A、40A、50A、63A
|
|
|
||
Product classification
|
Circuit breaker
|
|
|
||
Conversion mode
|
power grid to power grid, power grid to generator, automatic switching and self recovery
|
|
|
||
Operation mode
|
Manual/automatic
|
|
|
||
Conversion time
|
≤2S
|
|
|
||
Product structure
|
small volume, high current, simple structure, ATS integration
|
|
|
||
Features
|
fast switching speed, low failure rate, convenient maintenance and
reliable performance |
|
|
||
Wiring mode
|
front plate wiring
|
|
|
||
Number of Poles
|
2P
|
3P
|
4P
|
||
Standard
|
GB/T14048.11-2008
|
|
|
||
Use level
|
AC-33lB
|
|
|
||
ATS
|
CB class, with overload and short-circuit protection
|
|
|
Spec
|
W
|
W1
|
L
|
L1
|
H
|
KYQ3-63/2P C type, C1 type
|
155
|
137
|
136
|
125
|
110
|
KYQ3-63/3P C type, C1 type
|
190
|
173
|
136
|
125
|
110
|
KYQ3-63/4P C type, C1 type
|
225
|
208
|
136
|
125
|
110
|
Operation and maintenance
*Whether common power or standby power with voltage or not, all can be by manual mode operated. Under manual,put the auto-manual button to manual position, pull the handle by clockwise to end, standby power implementation circuit breaker Qr is OFF, implementation of common power supply circuit breaker Qn ON; When pull handle counterclockwise to the end, the implementation of standby power source Qr is ON, implementation of common power supply circuit breaker Qn is OFF;
* Set the auto position, if the common power is normally, ATS will transfer to common power working. The common power indication will bright on panel; If the common power is unusually, ATS will transfer to standby power working.The standby indication will be bright on the panel.
*ATS has 1A of two units fuses and a electric connector, fuse as short-circuit protection in automatic controller. The terminal provides active power for the indicator light to be connected to the control box panel, and its voltage isAC220V, current is 150mA, the specific operation can refer to the attached manual circuit diagram for connection.
Q1.Are you a factory or trading company?
A1.We are a factory, we can guarantee our price is first-hand, very reasonable and competitive.
Q2.How does your factory do regarding quality control?
A2.All the products will be 100% checked before the shipment.
Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.
Q4.How could I get a sample?
A4.if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5.What is the price of shipping?
A5.Depending upon the port of delivery, prices varies.
Q6.Do you accept OEM business?
A6.We accept OEM with your authorization.we also can ODM for you.
Switch structure description
1. Electrical key lock: Control the internal control circuit power supply of the switch. Only when the electrical lock is opened can the switch achieve fully automatic, forced "0", and remote operation; When the electrical lock is closed, the switch can only be manually operated.
2. Operating handle: When using the operating handle for manual operation, the electrical lock must be closed first.
3. Mechanical padlock: A specialized padlock mechanism for maintenance. During maintenance, turn the switch to "0" position, then pull up the padlock mechanism and lock it. It can prevent any accidents (pulling up the padlock will cut off the internal control power supply of the switch, the switch will not be able to automatically, and it can also prevent the handle from being put on).
4. Indicator: The three states (I, 0, II) positions of the indicator switch.
