Quick Details
-
Dimension(L*W*H):
-
800*350*350 mm
-
Weight:
-
117
-
Power (kW):
-
2
-
Applicable Industries:
-
Rubber and Plastic Industry
-
Product name:
-
Manual Rubber Heat Flat Vulcanizing Machine
-
Application:
-
Rubber and plastic
-
Capacity:
-
20 - 50T ( Per request)
-
Temp. Range:
-
RT to 300℃
-
Vulcanization timing:
-
0.1S ~ 99M ~ 9.9H
-
Temperature accuracy:
-
± 2 ° C
-
pressing plate:
-
200*200mm Customize
-
Platen distance:
-
60mm
-
Platen hardness:
-
HRC50~60
-
Cylinder stroke:
-
Max 200mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zotai
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
800*350*350 mm
-
Weight:
-
117
-
Power (kW):
-
2
-
Applicable Industries:
-
Rubber and Plastic Industry
-
Product name:
-
Manual Rubber Heat Flat Vulcanizing Machine
-
Application:
-
Rubber and plastic
-
Capacity:
-
20 - 50T ( Per request)
-
Temp. Range:
-
RT to 300℃
-
Vulcanization timing:
-
0.1S ~ 99M ~ 9.9H
-
Temperature accuracy:
-
± 2 ° C
-
pressing plate:
-
200*200mm Customize
-
Platen distance:
-
60mm
-
Platen hardness:
-
HRC50~60
-
Cylinder stroke:
-
Max 200mm

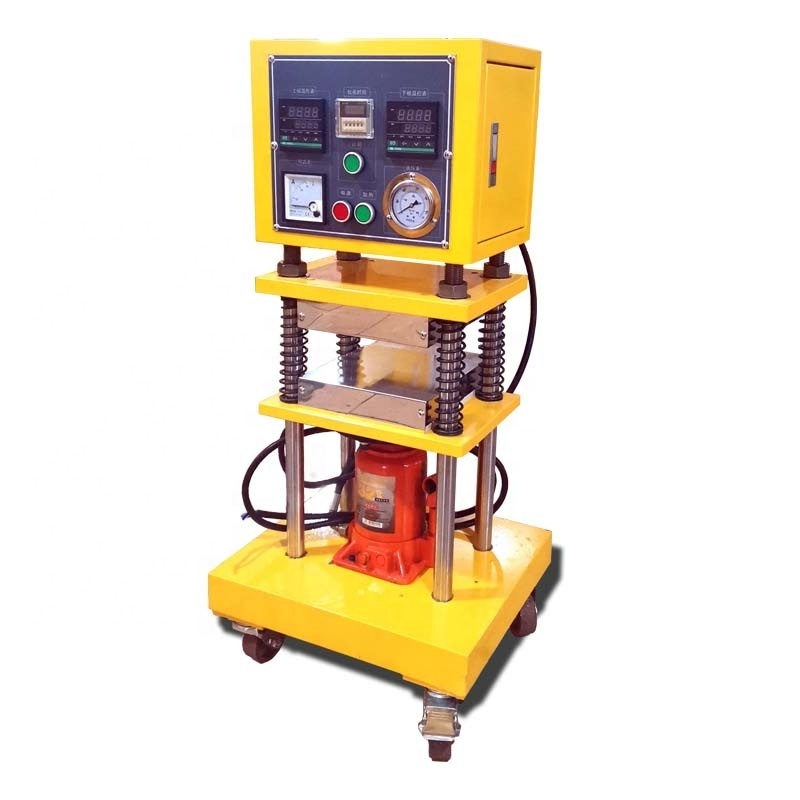

Manual Rubber Heat Flat Vulcanizing Machine Lab PVC Vulcanizer Equipment
Technical parameter:
| Capacity | 20T,30T , 50 T ( Per request) |
| Temperature range | normal temperature ~ 300 °C |
| Controller | optional electrical control and PLC programmable control |
| Vulcanization timing | 0.1S ~ 99M ~ 9.9H |
| Heating method | electric heating module |
| Temperature accuracy | ± 2 °C |
| Hot pressing plate | 200×200mm |
| Cold pressing plate | 220×220mm |
| Platen distance | 60mm |
| Plate material | SKD chrome molybdenum alloy |
| Platen hardness | HRC50~60 |
| Plate surface | mirror chrome |
| Platen number | single layer |
| Cooling system | none |
| Oil pressure system | GPY oil pump drives high-performance electro-hydraulic with non-resistance cylinder to perform equal-rate control mode, which can preset first and second pressure and time. |
| Cylinder stroke | Max 200mm |
| Pressure table | 0 ~ 350kg / cm 2 |
| Power | 10.6HP |
| Volume (W×D×H) | 350*350 |
| Power source | 3φ, AC380V, 20A three-phase five-wire |
| Weight |
about 117kg |
Instruction :
This Manual Rubber Heat Flat Vulcanizer is used to detect the impurities of plastic materials, PVC and other materials to determine its quality. The sample was placed in a mold and the raw material was shaped by high temperature and pressure. The cast test piece is placed on the matte glass of the observation drawer, through the light from the bottom up, the impurities on the test piece can be clearly seen to determine the impurity content of the rubber material for testing, as a large number of factories The basis of production ingredients.
We can produce all kinds of rubber and plastic test equipments:
1. Zotai Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines .
2. Onsite Service:
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
3. Free technical training for visiting factories
4. 24-hour Online contact
5. Free software upgrades
6. Free information:
A.Product Instruction;
B.Product operation instruction/video;
C.Experiment Test (test application, test report)
7. Device Problem Handling:
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
