Quick Details
-
ProducSolid dry fog formulat name:
-
Security Fog Generator
-
Fog Feature:
-
Solid dry fog formula
-
Refills:
-
Compatible with HAM-C1/HAM-C1F, easily refilled & replaced
-
Smoke Start-up time:
-
1 second
-
Ejection time/Duration Time:
-
15-20 seconds/30-45 Minutes
-
Protect Area:
-
100-150m³
-
Power & Power Consumption:
-
12V,3A; 0-24W
-
Trigger Method:
-
Panic Button, Remote Control, Alarm host panel
-
Application:
-
Bank, Mesum, Supermarket, Luxury&Jewelry store, Warehouse, Home
-
Certification:
-
CE,Non-toxic report
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
VERINUO
-
Model Number:
-
HAM-FL-R
-
ProducSolid dry fog formulat name:
-
Security Fog Generator
-
Fog Feature:
-
Solid dry fog formula
-
Refills:
-
Compatible with HAM-C1/HAM-C1F, easily refilled & replaced
-
Smoke Start-up time:
-
1 second
-
Ejection time/Duration Time:
-
15-20 seconds/30-45 Minutes
-
Protect Area:
-
100-150m³
-
Power & Power Consumption:
-
12V,3A; 0-24W
-
Trigger Method:
-
Panic Button, Remote Control, Alarm host panel
-
Application:
-
Bank, Mesum, Supermarket, Luxury&Jewelry store, Warehouse, Home
-
Certification:
-
CE,Non-toxic report

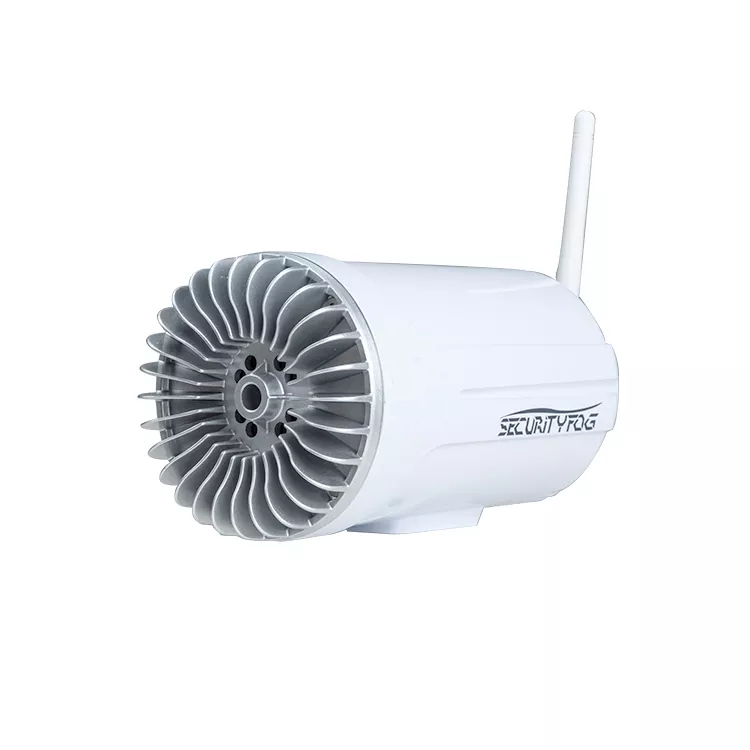

FOG GENERATOR
STOP BURGLAR IN 3 SECONDS
ü Fastest ever smoke Speed
1 second Trigger, 8 seconds cover the full area
No heating time.
ü Eas y to replace and refill
smoke container can be easily replaced , generator can be used repeatedly.
ü Innovative patented Technology
D ry smoke formula, unique cold smoke technology.
ü The densest smoke
The innovative formula with a high percentage density ensures really dense and powerful smoke .
ü Safe and certified
The security smoke formula is biodegradable and harmless to humans , furnishings and electrical equipment.
ü Low Power Consumption
Low voltage start-up , low standby power consumption, Max working power 24 W.
HAM-FL-R CONTROLED BY [ PANIC BUTTON,ON/OFF SWITCH]
And[ REMOTE CONTROL]
|
Name
|
Model |
HAM-FL-R |
|
Name |
Security Fog Generator |
|
|
Fog System
|
smoke Formula |
Solid Dry Material |
|
Protect Area |
In closed or half closed Area (height2.5-3m) With filter: 100m3 Without filter: 150m3 |
|
|
smoke Performance |
Cold smoke, 1 second triggered, no heating time. 15-20 seconds ejection time, 30-45 minutes smoke duration time |
|
|
Control
|
Trigger Method |
Remote Control, Panic Button/On Off Switch |
|
Connection & Active |
Connect the IN+&IN-, Press the Remote Control or Panic button at least 2 seconds (suggest 5 seconds) to trigger smoke . It switches to power saving mode after triggering. |
|
|
Specification
|
Power |
DC12V , 3A |
|
Power Consumption |
0-24W |
|
|
Working Temperature |
-10 ℃ ~ 50 ℃ |
|
|
Operating Humidity |
0%-80% |
|
|
Install ation |
On the Wall or Ceiling |
|
|
Qualification
|
Certification |
CE , ISO:9001, ISO:14004, RoHs, NON-TOXIC test report |
|
Patent |
Design Patent, Utility Model Patent |
|
MODEL NO |
FUNCTION&TRIGGER |
PROTECT AREA (WITH 2 TYPES OF FOG CONTAINER) |
|
|
HAM-FL-Z |
* Panic Button
|
cartridge model: HAM-C1 |
Without Filter, more smoke. 1 5 0 m ³ protection |
|
cartridge model: HAM-C1F |
With Filter, less residue. 1 0 0 m ³ protection |
||
|
HAM-FL-R |
* Remote Control
|
cartridge model: HAM-C1 |
Without Filter, more smoke. 1 5 0 m ³ protection |
|
cartridge model: HAM-C1F |
With Filter, less residue. 1 0 0 m ³ protection |
||
|
HAM-FL-RPt
|
* TUYA app control
|
cartridge model: HAM-C1 |
Without Filter, more smoke. 1 5 0 m ³ protection |
|
cartridge model: HAM-C1F |
With Filter, less residue. 1 0 0 m ³ protection |
||
