Quick Details
-
Supporting agreement:
-
EPC Gen2(ISO18000-6C),ISO18000-6B
-
Supported card:
-
UHF RFID electronic tags, smart cards
-
RFID card reading distance:
-
>6M
-
Operating system:
-
Android 4.3
-
Processor:
-
SAMSUNG Cortex-A8(1GHz)
-
Weight:
-
538g (with battery) 589g (with handle)
-
Camera function:
-
support
-
Customized support:
-
Customized logo
Quick Details
-
Place of Origin:
-
Hubei, China
-
Operating Frequency:
-
860~868MHz/902~928MHz (can be adjusted as required)
-
Color:
-
black
-
Supporting agreement:
-
EPC Gen2(ISO18000-6C),ISO18000-6B
-
Supported card:
-
UHF RFID electronic tags, smart cards
-
RFID card reading distance:
-
>6M
-
Operating system:
-
Android 4.3
-
Processor:
-
SAMSUNG Cortex-A8(1GHz)
-
Weight:
-
538g (with battery) 589g (with handle)
-
Camera function:
-
support
-
Customized support:
-
Customized logo

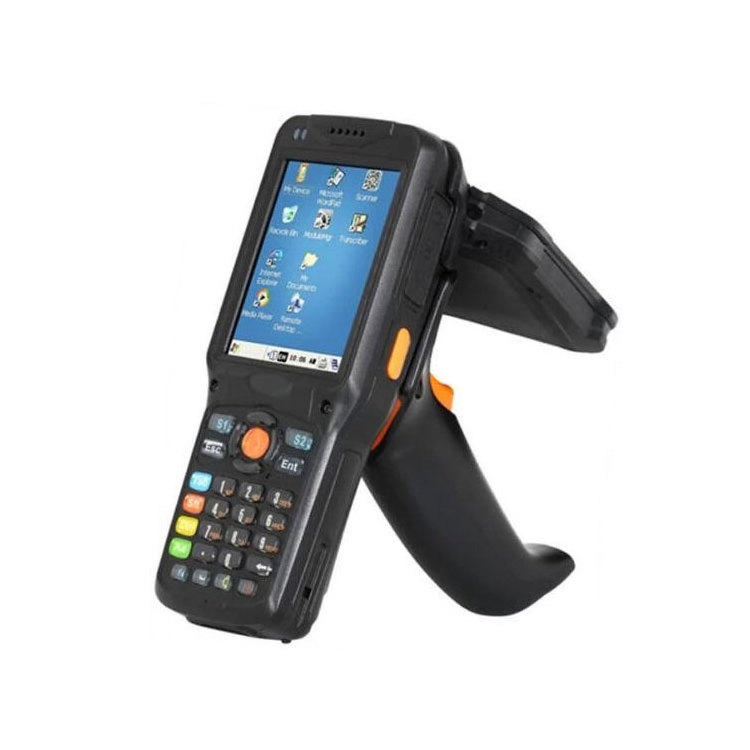

Portable High Quality UHF GPS RFID Reader
Android rfid reader
Features:
Operating frequency 860~868MHz/902~928MHz (can be adjusted according to different countries or regions);
Support ISO18000-6C (EPC C1G2), ISO18000-6B protocol electronic label;
Support one-dimensional bar code, two-dimensional bar code; comfortable and convenient professional scanning handle, double the work efficiency;
Support GPRS/GSM, 3G wide area wireless communication; WiFi local area wireless communication;
Includes USB, RS232 multiple data interfaces;
Provide Android & Windows CE operating system for selection;
Provide dynamic link library (DLL) and demo software source code to support secondary development.
| Project | Typical | Remarks |
| Support band | EU:840-868MHZ;US:902~960MHZ | |
| supporting agreement | EPC Gen2(ISO18000-6C),ISO18000-6B | |
| Supported card | UHF RFID electronic tags, smart cards | |
| Model | HXU9150A-A | |
| RFID card reading distance | >6M | Use the HX9883M module with a circularly polarized antenna |
| Operating system | Android 4.3 | Chinese / English |
| Processor | SAMSUNG Cortex-A8(1GHz) | 1GHz |
| RAM |
ROM 12MB
RAM 4GB |
Can be extended by SD card, up to 32GB |
| Display |
3.5in TFT-LCD VGA (480*640)
Color LCD screen or QVGA (240*320) |
Industrial-grade capacitive touch screen with multi-touch support |
| Size |
192*73.8*29/85(mm) 90*65*25mm |
L*W*T handle |
| Weight |
538g
589g |
Battery included
With handle |
| Keyboard | Number & letter keys, direction keys, function keys, scan keys, side buttons | Support handwriting input |
| One-dimensional laser scanning head | support | Optional |
| Two-dimensional scanning head | Spport | Backward compatible with 1D barcode |
| WLAN/WiFi | Support | Standard |
| GSM/GPRS | Support | Optional |
| 3G | Support | WCDMA optional |
| 2.1 with EDR | Standard | |
| GPS | Support | Optional |
| Camera function | Support | Optional |
Android rfid reader in Standard Export Carton.
