Small size, high performance, high stability and high sensitivity
Stainless steel structure
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LNT101
-
Name:
-

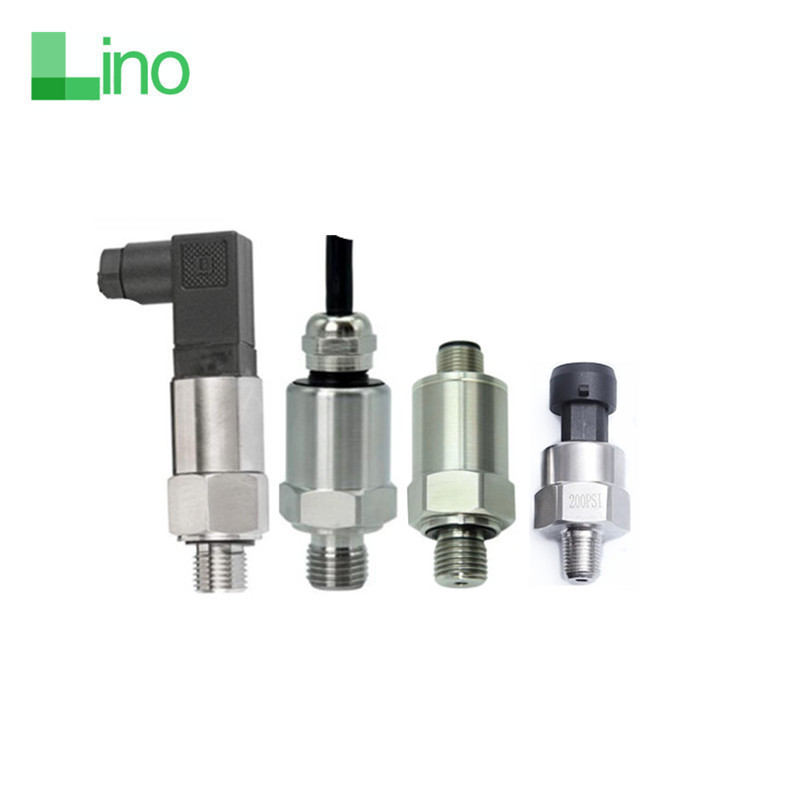

Lino LNT101 silicone ceramic pressure transducer 10bar 5V
-
Output signal:
-
4~20mA/0-10V/0-5V/0.5~4.5V
-
Power supply:
-
24VDC 12VDC 5VDC 8-30VDC
-
Process connection:
-
M20*1.5 G1/4 NPT1/4 (or Customized)
-
Overload pressure:
-
150%FS
-
Medium:
-
Liquid Gas Oil
-
Electrical connection:
-
Cable/Hirschman/M12/Packard Connector
-
Application:
-
oil fuel air compressor water
-
Operating Temperature:
-
-25-125C
-
Material:
-
304/316 Stainless Steel
Quick Details
-
Warranty:
-
1Y
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Lino
-
Model Number:
-
LNT101
-
Name:
-
Lino LNT101 silicone ceramic pressure transducer 10bar 5V
-
Output signal:
-
4~20mA/0-10V/0-5V/0.5~4.5V
-
Power supply:
-
24VDC 12VDC 5VDC 8-30VDC
-
Process connection:
-
M20*1.5 G1/4 NPT1/4 (or Customized)
-
Overload pressure:
-
150%FS
-
Medium:
-
Liquid Gas Oil
-
Electrical connection:
-
Cable/Hirschman/M12/Packard Connector
-
Application:
-
oil fuel air compressor water
-
Operating Temperature:
-
-25-125C
-
Material:
-
304/316 Stainless Steel
Product Description
Lino LNT101 silicone ceramic sensor for oil fuel air compressor water pressure transducer 10bar 5V
is a compact rod-shaped pressure sensor for measuring gauge pressure,absolute pressure, negative pressure and liquid level of gas, liquid and steam. It has excellent medium adaptability and long-term stability; it can directly output standard voltage, Current or digital signal;small size and compact structure, not only saves installation space but also has strong shock resistance, ensuring its durability,so it is widely used in various fields.
Features
Specification
|
Item
|
Lino LNT101 silicone ceramic sensor for oil fuel air compressor water pressure transducer 10bar 5V
|
|
Brand
|
Lino
|
|
Pressure range
|
0-10bar
|
|
Output
|
0.5-4.5V
|
|
Power
|
5V
|
|
Accuracy
|
1%
|
|
Thread
|
G1/4
|
|
Temperature range
|
-25-125C
|
|
Protection grade
|
IP67
|
Features
Lino LNT101 silicone ceramic sensor for oil fuel air compressor water pressure transducer 10bar 5V
Rugged, compact and easy to install
High reliability, high stability
Advanced anti-jamming and anti-surge circuit protection
Anti-shock, anti-overload, anti-vibration, anti-corrosion, anti-leakage
Quality assurance of automated production lines, stable and reliable
cost-effective
Applications
