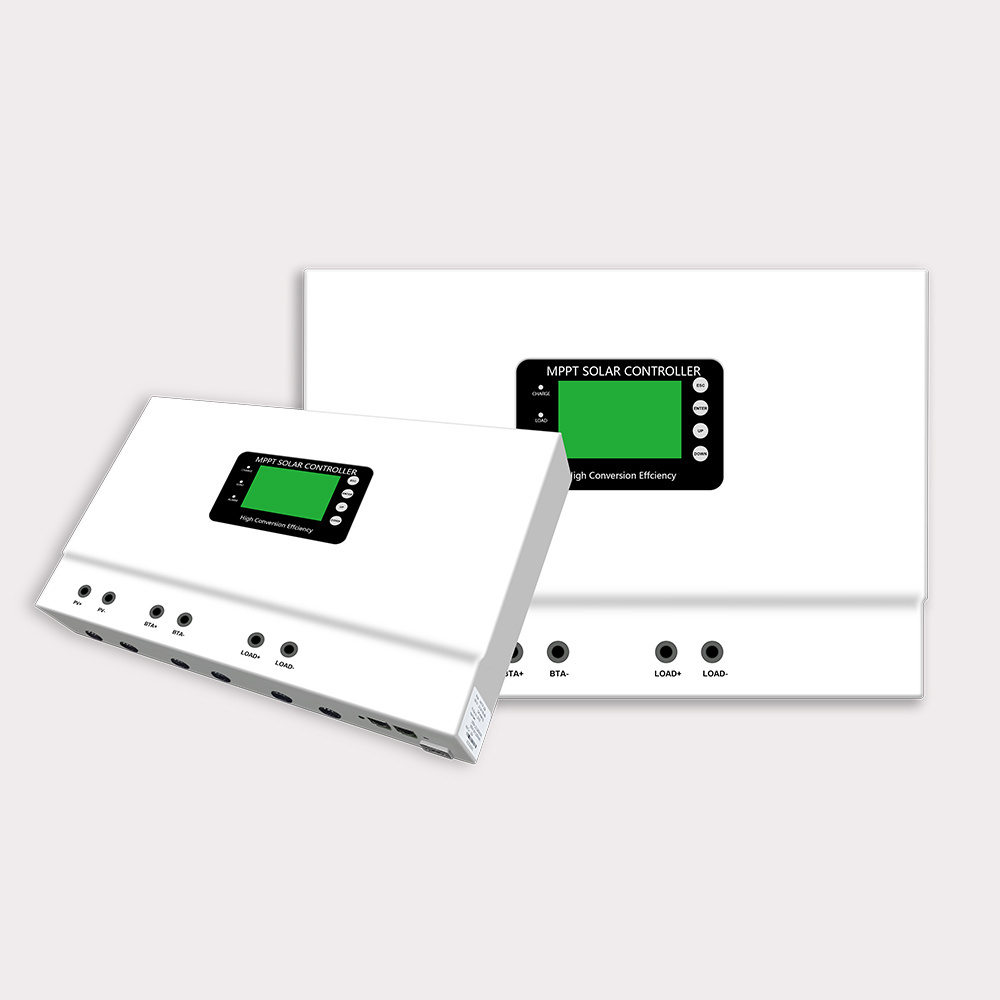

120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform
120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform
120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform
120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform
120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform
120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform
120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform
120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform

120AH MPPT Solar Charge Controller with 5V 2A USB Global Digital Outbound Service Platform

FOB Reference Price: Get Latest Price
≥2 Pieces
US $320
≥10 Pieces
US $250
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
ODM
Model Number:
Master
Work Time (h):
24 hours
Max PV Power:
5200W
Max PV Voltage:
150VDC, 300VDC
Certificate:
CE, FCC, RoHS
Warranty:
2 years
MPPT efficiency:
≥99.5%
Charge mode:
3-Stage Mppt Charge
Color:
White
Function:
MPPT Function
Rated Current:
80A/100A/120A
System voltage:
12v/24v/36v/48v Automatic Recognition
Protection Function:
Input and output over-voltage protection etc
Display:
High-definition LCD segment code backlight display
Product name:
80/100/120A Mppt Solar Charge Controller

Quick Details

Type:
MPPT
Application:
Charger Controller, Collector Controller, Lighting Controller, Solar System Controller, Solar Working Station, Voltage Controller
Place of Origin:
Jiangsu, China
Brand Name:
ODM
Model Number:
Master
Work Time (h):
24 hours
Max PV Power:
5200W
Max PV Voltage:
150VDC, 300VDC
Certificate:
CE, FCC, RoHS
Warranty:
2 years
MPPT efficiency:
≥99.5%
Charge mode:
3-Stage Mppt Charge
Color:
White
Function:
MPPT Function
Rated Current:
80A/100A/120A
System voltage:
12v/24v/36v/48v Automatic Recognition
Protection Function:
Input and output over-voltage protection etc
Display:
High-definition LCD segment code backlight display
Product name:
80/100/120A Mppt Solar Charge Controller
Product Description

Monitoring Way

PC monitor: Through connect RS485 cable to realize PC software monitoring Mobile Phone monitor: Through WiFi module to realize APP cloud monitoring
Optional blue-tooth monitor
Optional wifi monitor
Parameters
M48L100
M48L120
M48H100
M48H120
Product Category
Controller type
Controller with Maximum Power Point Tracking (MPPT)
MPPT efficiency
≥99.5%
Standby power consumption
4W~5W
Heat-Dissipating method
Natural cooling
Natural cooling+Air cooling
System voltage
12V/24V/36V/48V Auto
48V
Input Characteristics
Max.PV input voltage(Voc)
150V
300V
Start-up charging voltage
Real-time battery voltage +3V
Real-time battery voltage +10V
Low input voltage protection
Real-time battery voltage +2V
Real-time battery voltage +5V
Over voltage protection / Recovery
150V
300V
Reted PV Power
12V system
1300W
1560W
—
—
24V system
2600W
3120W
—
—
36V system
3900W
4680W
—
—
48V system
5200W
6240W
5200W
6240W
Charging Characteristics
Battery types
Sealed(SEL),Gel(GEL),Flooded(FLD)User-defined(USER),Li-ion(LIT)
Temperature compensation
-3mV/℃/2V
Charge rated current
100A
120A
100A
120A
charging method
3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
Output voltage stability accuracy
≤±0.2V
Load Characteristics
load voltage
same as battery voltage
Rated load current
100A
120A
100A
120A
Load control mode
On/Off , PV voltage control mode, Dual-time control mode, PV + Time control mode
Low voltage protection
10.5V (default),11V (restored), settable(9V-15V)
Setting method
PC software / APP / Controller
Display/ Communication
Display method
High-definition LCD backlight display
communication method
Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APPcloud monitoring / support centralized
parallel monitoring
Other Parameters
Protections
Input & output over-volt / low-voltage protection, reverse polarity protection, over-heating protection, battery shedding protection etc.
Operating ambient temperature
-20℃~+55℃
Storage temperature
-40℃~+70℃
IP(Ingress protection)
IP31
Altitude
0~3000m
Max Wiring size
50mm²
N.weight /G.weight (KG)
7.4/9
12/13.4
Product size (mm)
420x280x110
470x320x128
Packing size (mm)
510x368x225
613x440x250
Packing & Delivery
Package Type:
carton
Container loading by pallet
Projects
Energy Storage System
Home Solar Energy System
Communication Basestation
Solar Monitoring System
Certifications
Our Company
Related Products

SOLAR PANEL

INVERTER

CONTROLLER

FAQ

Q1. Are you a factory or trading company?
We have two modern factory. We have 120 factory workers and 10 of them are quality control and engineer guys. Welcome to visit our factory.

Q2. Is Your products the lowest price?
GT take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.

Q3. All products have a warranty?
Yes, we supply 1 to 25 years warranty for our products. You will be satisfied with our quality.

Q4. What is the transportation?
By air, by Sea, by Express, by Train, all are ok to us.

Q5. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.

Q6. Can we design packaging?
Yes, but there is with quantity limitation. We will make the packing free for the client, and if less , we can talk, the package is free or little money will be charged.

Q7. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.

Q8. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
