Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinodream
-
Process:
-
Milled flute,auto-welded cutting tip
-
Tip Material:
-
YG8C Carbide Tip
-
Flute Type:
-
Double flute
-
Package:
-
PVC pouch, round plastic tube
-
Standard:
-
DIN8039
-
Material:
-
40CR steel,45 steel
-
Shank Type:
-
SDS Plus,SDS max
-
Hardness:
-
63-66 HRC
-
MOQ:
-
500pcs per size
Quick Details
-
Type:
-
Gun Drill Bit, Indexable Drill Bit
-
Use:
-
Masonry Drilling
-
Finish:
-
Plain, sand blasted
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinodream
-
Process:
-
Milled flute,auto-welded cutting tip
-
Tip Material:
-
YG8C Carbide Tip
-
Flute Type:
-
Double flute
-
Package:
-
PVC pouch, round plastic tube
-
Standard:
-
DIN8039
-
Material:
-
40CR steel,45 steel
-
Shank Type:
-
SDS Plus,SDS max
-
Hardness:
-
63-66 HRC
-
MOQ:
-
500pcs per size
Product Description

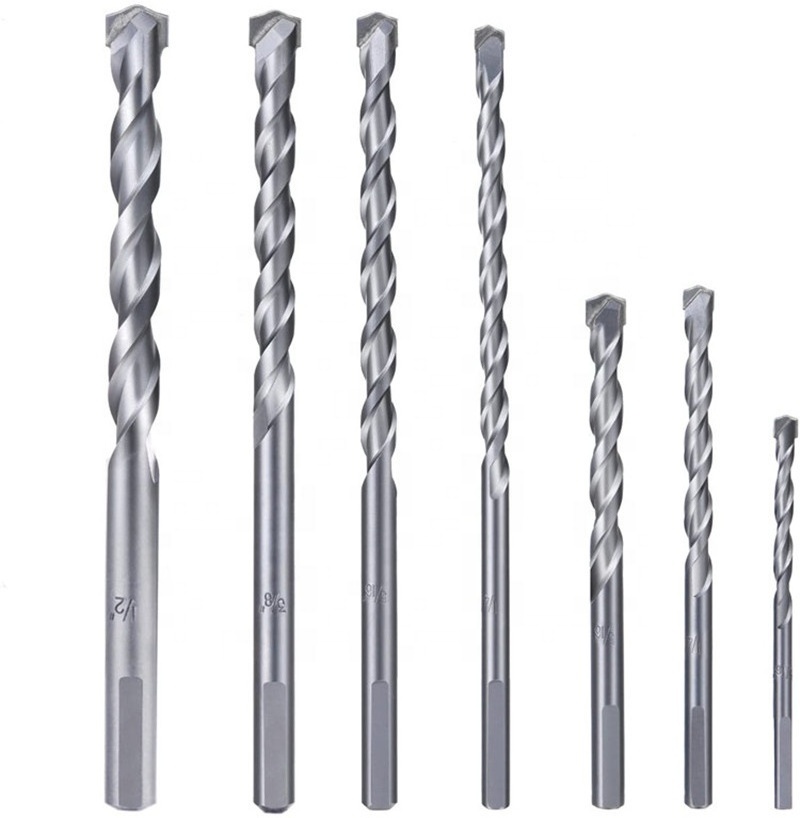

SDS Plus Drill Bits for Rotary Electric Hammer Drills Drilling Hole in Concrete Masonry Stone Tip Width 6mm 8mm
* Made of 40 chrome steel and welded by YG8C alloy, sharper cutting edge, very strong and durable
*
* Used with electric hammers, ideal for drilling holes in concrete, ceramic tile, stone, wood, metal, aluminum, plastic, concrete and multi-layer materials
Advantage
*For best performance use slow speed and apply enough feed pressure to keep the drill cutting.
*Fast spiral flutes speed up dust removal
*For hand concrete aggregates and similar materials.
|
Diameter/Tip Width(mm/inch)
|
Flute Length
(mm)
|
Overall Length
(mm)
|
Diameter/Tip Width(mm/inch)
|
Flute Length
(mm)
|
Overall Length
(mm)
|
|
4.0 5/32
|
50
|
110
|
6.0 15/64
|
250
|
310
|
|
5.0 3/16
|
50
|
110
|
8.0 5/16
|
250
|
310
|
|
5.5 7/32
|
50
|
110
|
10.0 3/8
|
250
|
310
|
|
6.0 15/64
|
50
|
110
|
12.0 15/32
|
250
|
310
|
|
7.0 9/32
|
50
|
110
|
14.0 9/16
|
250
|
310
|
|
8.0 5/16
|
50
|
110
|
16.0 5/8
|
250
|
310
|
|
10.0 3/8
|
50
|
110
|
18.0 23/32
|
250
|
310
|
|
5.0 3/16
|
100
|
160
|
20.0 3/4
|
250
|
310
|
|
6.0 15/64
|
100
|
160
|
22 7/8
|
250
|
310
|
|
7.0 9/32
|
100
|
160
|
24 15/16
|
250
|
310
|
|
10.0 3/8
|
100
|
160
|
8.0 5/16
|
400
|
450
|
|
11.0 7/16
|
100
|
160
|
10.0 3/8
|
400
|
450
|
|
12.0 15/32
|
100
|
160
|
12.0 15/32
|
400
|
450
|
|
13.0 1/2
|
100
|
160
|
14.0 9/16
|
400
|
450
|
|
14.0 9/16
|
100
|
160
|
16.0 5/8
|
400
|
450
|
|
15.0 19/32
|
100
|
160
|
18.0 23/32
|
400
|
450
|
|
16.0 5/8
|
100
|
160
|
20.0 3/4
|
400
|
450
|
|
5.0 3/16
|
150
|
210
|
22 7/8
|
400
|
450
|
|
6.0 15/64
|
150
|
210
|
24 15/16
|
400
|
450
|
|
8.0 5/16
|
150
|
210
|
8.0 5/16
|
550
|
600
|
|
9.0 11/32
|
150
|
210
|
10.0 3/8
|
550
|
600
|
|
10.0 3/8
|
150
|
210
|
12.0 15/32
|
550
|
600
|
|
12.0 15/32
|
150
|
210
|
14.0 9/16
|
550
|
600
|
|
14.0 9/16
|
150
|
210
|
16.0 5/8
|
550
|
600
|
|
15.0 19/32
|
150
|
210
|
18.0 23/32
|
550
|
600
|
|
16.0 5/8
|
150
|
210
|
20.0 3/4
|
550
|
600
|
|
18.0 23/32
|
150
|
210
|
14.0 9/16
|
750
|
800
|
|
20.0 3/4
|
150
|
210
|
16.0 5/8
|
750
|
800
|
|
6.0 15/64
|
200
|
260
|
18.0 23/32
|
750
|
800
|
|
8.0 5/16
|
200
|
260
|
20.0 3/4
|
750
|
800
|
|
10.0 3/8
|
200
|
260
|
14.0 9/16
|
950
|
1000
|
|
12.0 15/32
|
200
|
260
|
16.0 5/8
|
950
|
1000
|
|
14.0 9/16
|
200
|
260
|
18.0 23/32
|
950
|
1000
|
|
16.0 5/8
|
200
|
260
|
20.0 3/4
|
950
|
1000
|
|
18.0 23/32
|
200
|
260
|
|
|
|
|
20.0 3/4
|
200
|
260
|
|
|
|
|
22 7/8
|
200
|
260
|
|
|
|
|
24 15/16
|
200
|
260
|
|
|
|
Cutting Saw Blade and Drilling Bits we exporting:
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Brand Name
|
Sinodream
|
|
Type
|
Indexable Drill Bit
|
|
Use
|
Masonry Drilling
|
|
Finish
|
Plain
|
|
Use
|
masonry drilling
|
|
Process
|
Milled flute,auto-welded cutting tip
|
|
Tip Material
|
YG8C Carbide Tip
|
|
Flute Type
|
Double flute
|
|
Package
|
PVC pouch, round plastic tube
|
|
Standard
|
DIN8039
|
|
Material
|
40CR steel,45 steel
|
|
Shank Type
|
SDS Plus,SDS max
|
|
Hardness
|
63-66 HRC
|
|
MOQ
|
500pcs per size
|
Packing & Delivery
Square plastic tube, PVC bag, Plastic box. Metal case
