Remote Control Receiver
Quick Details
-
Function:
-
LED indicator light
-
Brand Name:
-
langyixin
-
Model Number:
-
LYX-RK402A
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Remote Control Receiver
Product Overview
DC9V -30V single circuit breaker
Uses:
The main function is to control the on, off, and conversion of electrical appliances, lighting fixtures, and equipment switches, as well as the requirements of various special control programs. This product is widely used in remote control water pump switches, wireless remote control machine tool switches, wireless remote control sockets, wireless lighting fixtures, various wireless home appliance controls, and so on.
FEATURES AT A GLANCE
DC9V12V24V30V single channel receiver, 433Mhz compatible 1527 (all manufacturer codes) 2260 (all manufacturer codes) remote control
Intelligent control
: The remote control has a built-in intelligent controller that can be controlled with one click. It is very convenient to use and easy to operate.
Quick delivery
: If you have any questions about the product, please feel free to contact us and we will provide you with satisfactory service.
Better performance
: The remote control module is equipped with high-quality wired connections, which can effectively improve the service life of the remote control.
Product display
Product display

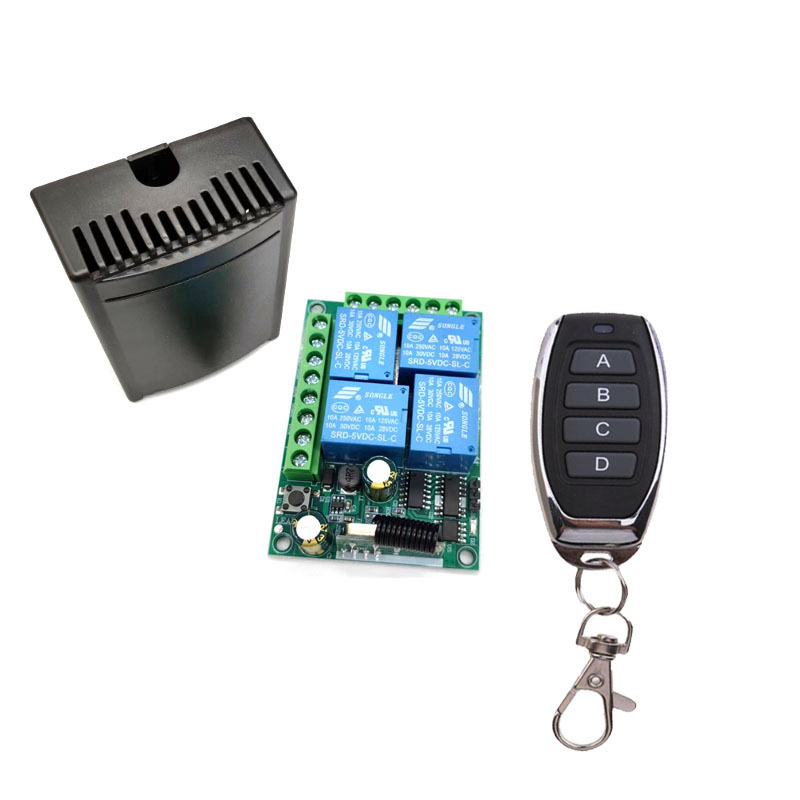

Front elevation
PRODUCT SPECIFICATIONS
|
Working voltage
|
DC9V - 30V
|
|
Max Current
|
10A
|
|
Working frequency
|
433.92MHz(Optional 315MHz)
|
|
Output/Input vlotage
|
1~30V
|
|
Range
|
0-50meters(open space)
|
|
Relay Size
|
75*53*25mm
|
|
Quiescent Current
|
<10MA
|
|
Receiving Sensitivity
|
>108dbm
|
|
Amount of storage remote controls
|
19pcs
|
|
Support encoding
|
1527 Learning code /2262 fixed code
|
|
RF Operating mode
|
ASK superheterodyne wireless reception
|
learning method
Product features
1. Adopting a brand new original Songle relay;2. The input power supply has anti reverse connection protection, so there is noneed to worry about burning out modules and equipment due to the positive andnegative poles of the power supply being connected;3. Load type: Suitable for anti-theft alarm, remote control of electric doors andwindows, switch signal control, industrial control, door lock device, remote controlof lighting fixtures, remote control LED, remote control of DC water pump andother electrical control circuits. All remote control switch modules have independentrelay contacts for output, which is very suitable for directly controlling various loads.Each of the four relays provides a set of common/normally open/normally closedindependent dry contacts;
4. Rapid response time of relay contacts > 10MS5. The working mode can be adjusted by the user freely: the user can modifymultiple cross functions such as jog/self-lock/interlock/two way self-lock+two wayjog/etc. on their own;
6. Relay dry contact independent output: COM/NO/NC (see figure below)7.Can be paired with most 433MHZ remote controls on the market (chips:PT2262 PT2264 SCT2260 EV1527 HS1527 PT2240,etc,)8.Load bearing: resistive load, 12V 60W,24V 120W, 48V 240W,110V 550W9. The finished product has passed strict testing and stability testing, so customerscan use it with confidence;
Output method description:
(Our company's product wireless receiver is a learnable wireless receiver. For pairingand output types, please refer to the "Learning lnstructions" below. lts outputmethods include various self-locking, jog, interlock, etc.)1. Jogging (non locking): Press a certain remote control button, the correspondingrelay will immediately engage, and the corresponding load will work. Once thebutton is released, the relay will disconnect, and the load will stop working. Eachchannel will work independently without interfering with each other.2. Self locking: Press a certain remote control button, the corresponding relaywill immediately engage, and the corresponding load will work. lf the same buttonis pressed again, the relay will disconnect, the load will stop working, cycle insequence, and each circuit will work independently without interfering witheach other.
3. Interlocking: Press a certain remote control button, and the corresponding relaywill immediately engage. At the same time, regardless of whether the other relaysare engaged or not, they will immediately disconnect and interlock with each other;That is to say, at a certain moment, only one relay remains in the engaged state
Regarding the remote control and controller:
When subjected to resistive loads, the load current can reach 10A. lf controllinginductive loads such as motors and water pumps, the starting current of theinductive load is relatively high, and the load current is suitable for applicationsbelow 5A. Considering the slight oxidation of relay contacts after long-term use,it is recommended to use resistive loads not exceeding 7A andinductive loads notexceeding 3.5A. lf used for higher power motor water pumps, please use inconjunction with contactors.
(Note 2) In actual use, the controller should try to avoid electromagnetic interference,physical barriers, etc, otherwise it will affect the wireless control distance. Do notinstall this product inside a metal box, as the metal box will shield wireless signals.When the battery level of the remote control decreases or runs low, the remotecontrol distance will decrease or become ineffective, and a new battery should bereplaced in a timely manner. Due to the significant relationship between remotecontrol distance and actual usage, the above parameters are for reference only andare not quaranteed. Please be aware of this(Note 3) According to the required control functions, correctly and properly connectthe wires. After completing the wiring, double check if the wiring is correct. Do notoperate or attempt to connect wires with electricity. Our company is not responsiblefor any adverse consequences caused by non-standard operations. lf you encounterany questions or unresolved issues, you can consult our company's relevant technicapersonnel for assistance in resolving them. We will definitely solve the problemsrelated to customers with the most sincere service attitude.
wiring method
Product application precautions
