Quick Details
-
Actuator motor:
-
Micro DC motor
-
Actuator color:
-
Black,Blue,Red
-
Actuator control wirng:
-
2,3,5 wires(CR01 to CR06 Wiring)
-
Actuator control Way:
-
3-wires control,5-wires for signal feedback
-
Actuator enclosure:
-
IP65
-
Actuator output torque:
-
15Q-1.5Nm,15N-2N.m,25S-2N.m,60P-6N.m
-
Medium temperature:
-
0-100°C
-
Special function:
-
quick open
Quick Details
-
Place of Origin:
-
China
-
Standard or Nonstandard:
-
Standard
-
Actuator rotation:
-
90 degree
-
Actuator motor:
-
Micro DC motor
-
Actuator color:
-
Black,Blue,Red
-
Actuator control wirng:
-
2,3,5 wires(CR01 to CR06 Wiring)
-
Actuator control Way:
-
3-wires control,5-wires for signal feedback
-
Actuator enclosure:
-
IP65
-
Actuator output torque:
-
15Q-1.5Nm,15N-2N.m,25S-2N.m,60P-6N.m
-
Medium temperature:
-
0-100°C
-
Special function:
-
quick open

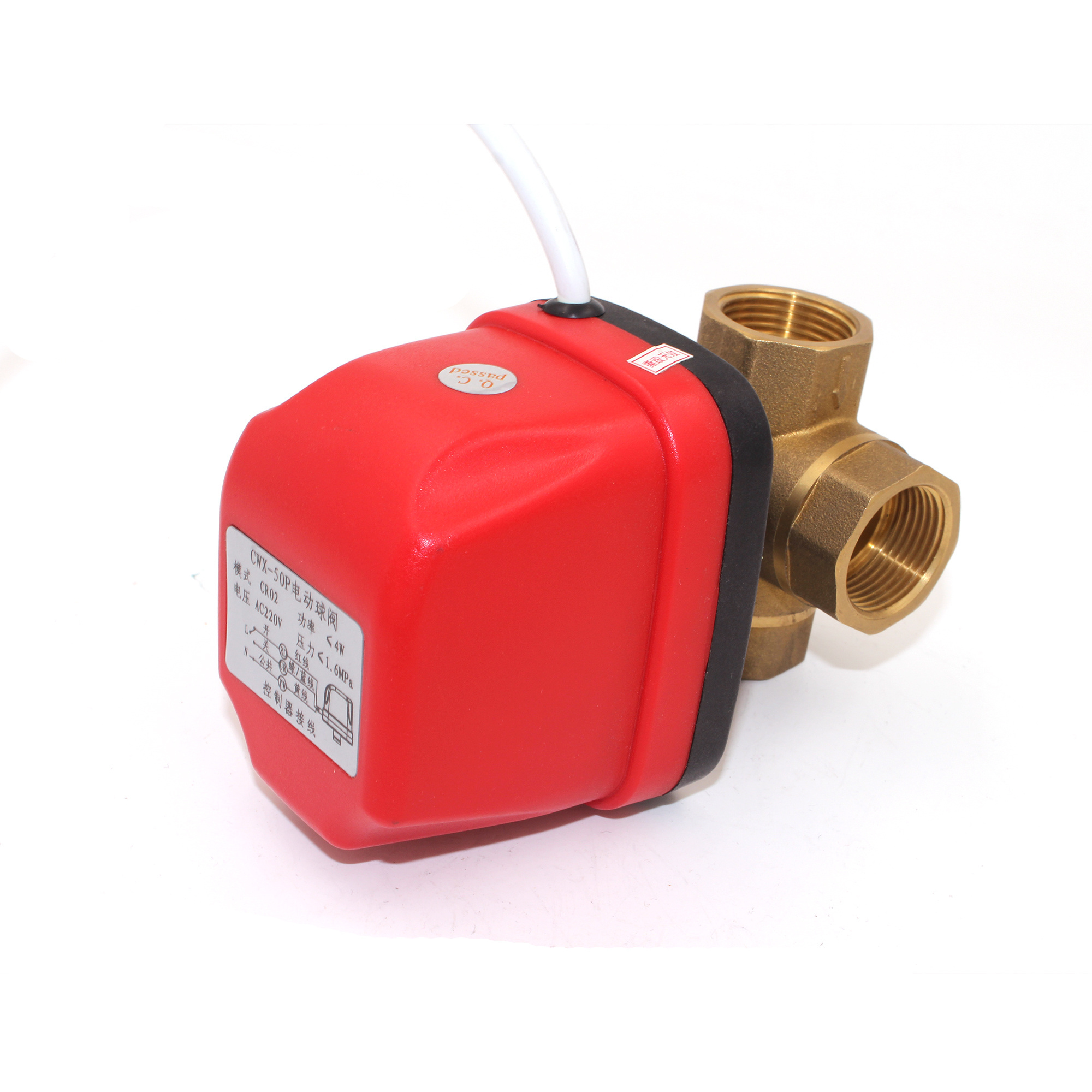

Quick install valve is specially used for on-off control Of HVAC water control system,
Valve is composed by two parts,electric actuator and valve body.Easy to remove
troubleshooting and Maintenance valve.Actuator with synchronous electric drive,
Action stable,Built-in limit contact point, so that the valve will power outage when fully
open or fully close,The valve body is brass forged.Valve using a large motor,Large
torque force, to achieve the valve Positive inversion.
| Voltage | Control mode | Nominal pressure | Output torque | Connection end |
| AC220V | CR02 | 1.6Mpa | 3.5NM | Pipe thread G |
| AC24V | ||||
| Power consumption | Action time | Close differential pressure | Medium temperature | Wire length |
| 6VA | <15S | <0.4Mpa | 2-90℃ | 15cm |
| Connection | Diameter | φd | L | H | Weight |
| Both female thread | DN20 | 17 | 60.6 | 50 | 0.58 |
| DN25 | 23 | 70 | 64 | 0.69 | |
| DN32 | 27 | 75 | 67 | 0.86 |
